T1/E1 i nline probe ASE
W i t h L i n k S a f e c a p a b i l i t i e s
Key features
• Inband management capabilities
• LinkSafe technology
• Power loss detection
• Multi-Protocol or IP Transport software
• Service Level Agreement (SLA) metrics
• Voice over IP (VoIP) analysis capability
• Application analysis capability
• LMI spoofi ng
• LAN management port
• Realtime events
Technical Data
The Visual UpTime® Select™ T1/E1 LinkSafe™ inline
probe ASE is deployed inline on a T1 or E1 access line,
typically between a service provider's edge device and
CSU/DSU. This ASE supports Multi-Protocol software
for deployment in standard frame relay or HDLC
networks and IP Transport software for deployment
in frame relay or HDLC-based networks that use IP
switching. The ASE also includes LinkSafe technology
to protect circuit integrity in case of an ASE outage,
as well as power failure notifi cation.

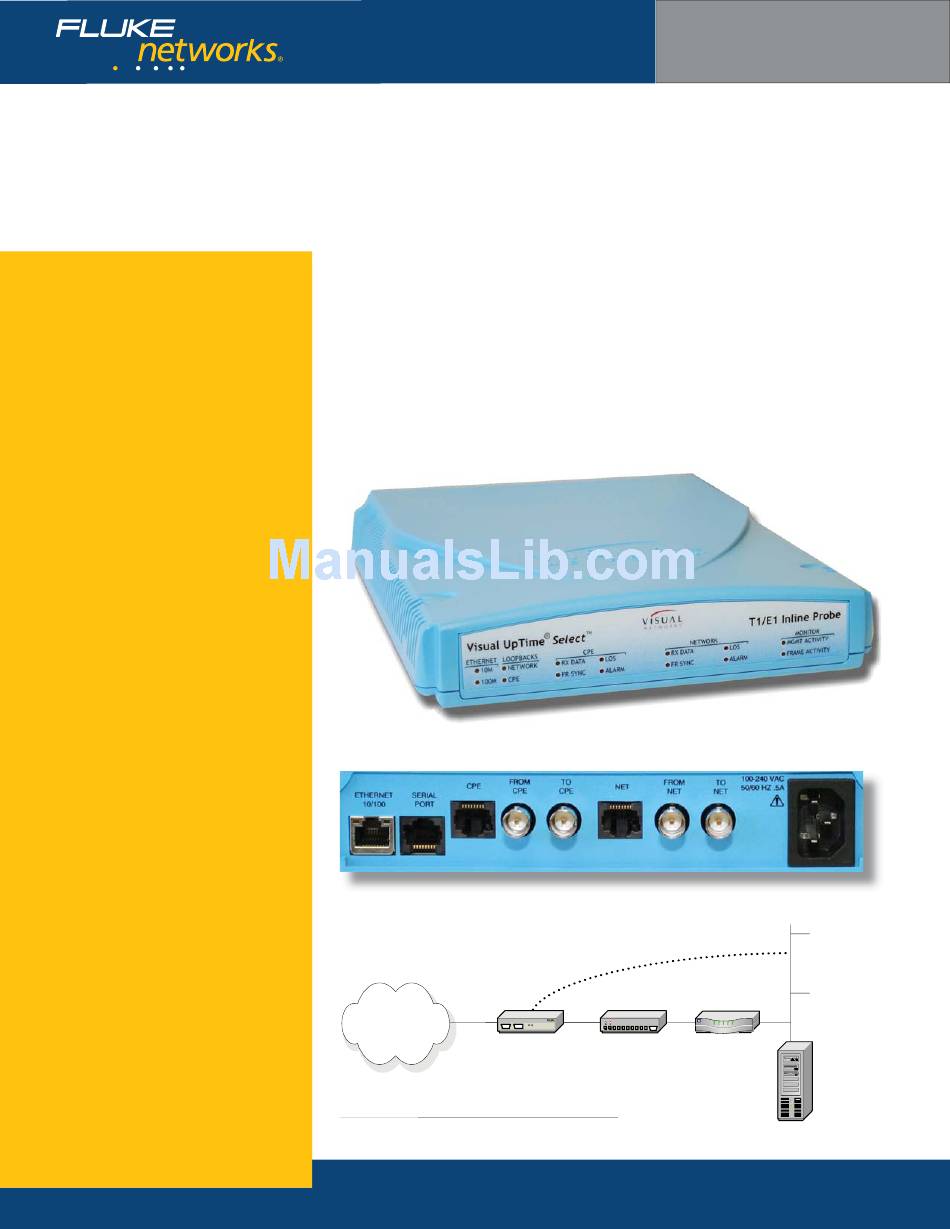

T1/E1 inline probe model 807-0113 front view
T1/E1 inline probe model model 807-0113 rear view
T1/E1 Access Line
WAN
T1/E1 inline ASE
T1/E1 inline probe model 807-0113 position on network
Visual UpTime Select
ASE model 807-0113
When confi gured for use on an E1 network, the ASE
complies with the physical/electrical characteristics
defi ned by ITU-T G.703 at 2.048 Megabits per second
(Mbps). The ASE also complies with the synchronous
frame structure specifi cations defi ned by ITU-T G.704,
including the option to use channel 16 for data or
signalling. You can either connect to the E1 network
using a 120 ohm balanced cable or BNC coax 75 ohm
unbalanced cables.
