Ethernt inline probe ASE specifcations
General Dimensions
Weight
Maximum Data Rate
Environment Operating Temperature
Storage Temperature
Clearance Requirement
Input
Power Requirements
Frequency
Input Current Rating
Bit Rate
LAN and WAN
Ethernet Interface
Connector
Serial Port Interface Baud Rate
Parity
Stop Bit
Electrical Format
Connector

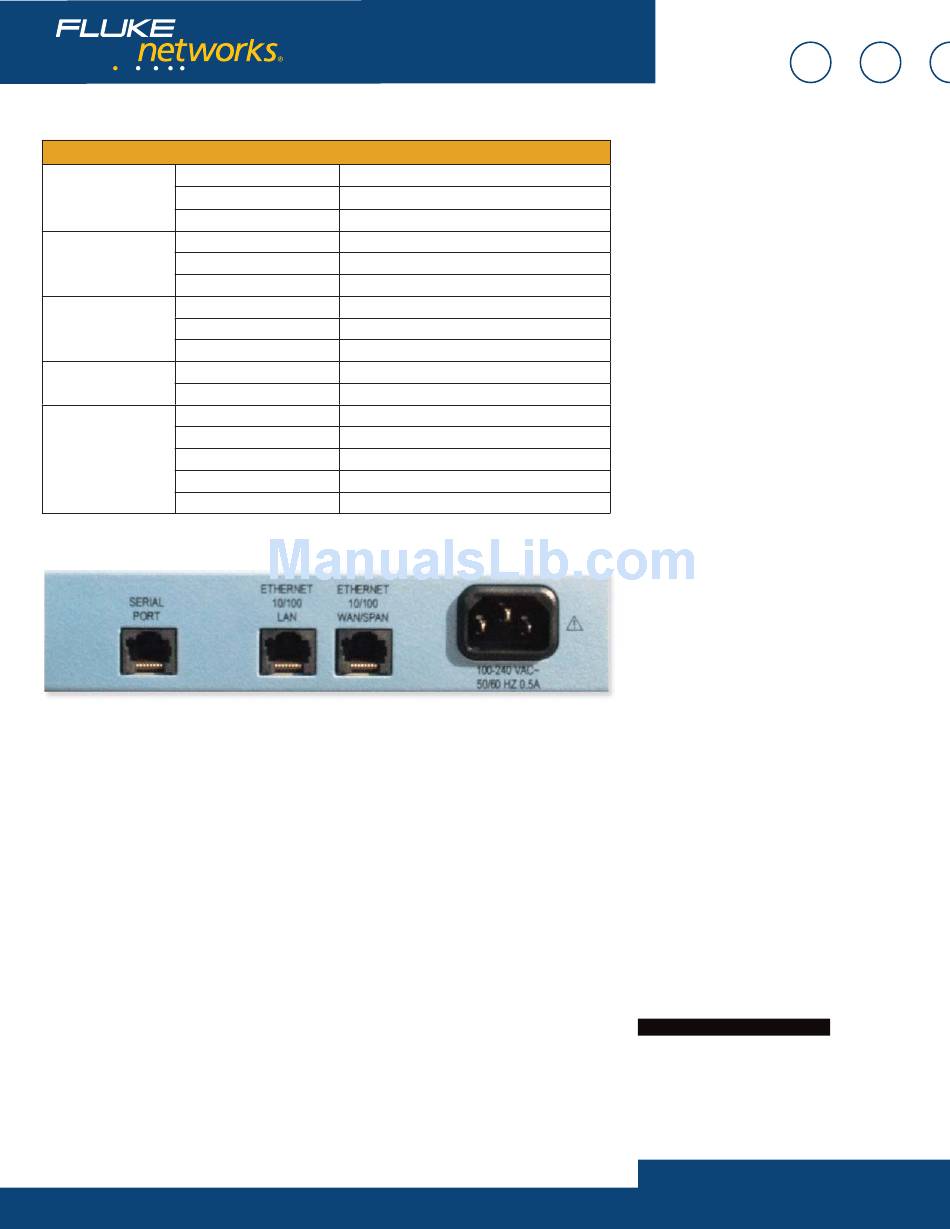

Ethernet inline probe model model 807-0120 rear view
7.5" (19.1 cm) x 6" (15.2 cm) x 1.5" (3.8 cm)
2.10 lbs.
6 Mbps
o o o o
0 to +40 C (+32 to +104 F)
o o o o
-20 to +55 C (-4 to +131 ×F)
Minimum of 3" (7.62 cm) space on sides.
100 to 240 VAC
50/60 Hz
0.5 amps
10/100 Mbps
8-pin modular jack: RJ-45
19200 or 9600 bps
8 data bits, no parity
1 stop bit
EIA RS-232, DTE
RJ-45
What are ASEs?
ASEs (Analysis Service Elements) are data
collection and network performance monitor-
ing hardware devices placed on a wide area
network (WAN) or Local Area Network (LAN)
as part of the Visual UpTime Select system,
which offers in-depth, real-time, and historical
visibility into the performance of your
applications infrastructure. In the system,
data gathered by ASEs is stored in the Visual
UpTime Select server and displayed and ana-
lyzed from the Visual UpTime Select Web client.
As a service level management tool, ASEs
indicate when services are being met, provide
warnings when services start to degrade, and
send alerts when services are not met.
Hardware Warranties
Enhanced Gold, Bronze, and International
Gold ASE hardware warranty service programs
are available to help you maximize your
investment in Visual UpTime Select. For more
detailed warranty information, visit:
www.fl ukenetworks.com/visualcustomercare
Ordering Information
For more details, please contact your Visual
UpTime Select authorized reseller or
Fluke Networks Sales at (800) 240-4010
or (301) 296-2300.
