T1 CSU/DSU ASE
Key features
• Inband management capabilities
• Multi-Protocol or IP Transport software
• Service Level Agreement (SLA) metrics
• Voice over IP (VoIP) analysis capability
• Application analysis capability
• LMI spoofi ng
• LAN management port
• Power loss detection
• Realtime events
Technical Data
The Visual UpTime® Select™ T1 CSU/DSU ASE is
deployed on a T1 access line at the demarcation point
between the provider network and customer premises.
It supports full and fractional (FT1) T1 networks and
provides connectivity through V.35 interface.
The ASE supports Multi-Protocol software for deploy-
ment in standard frame relay or HDLC networks and

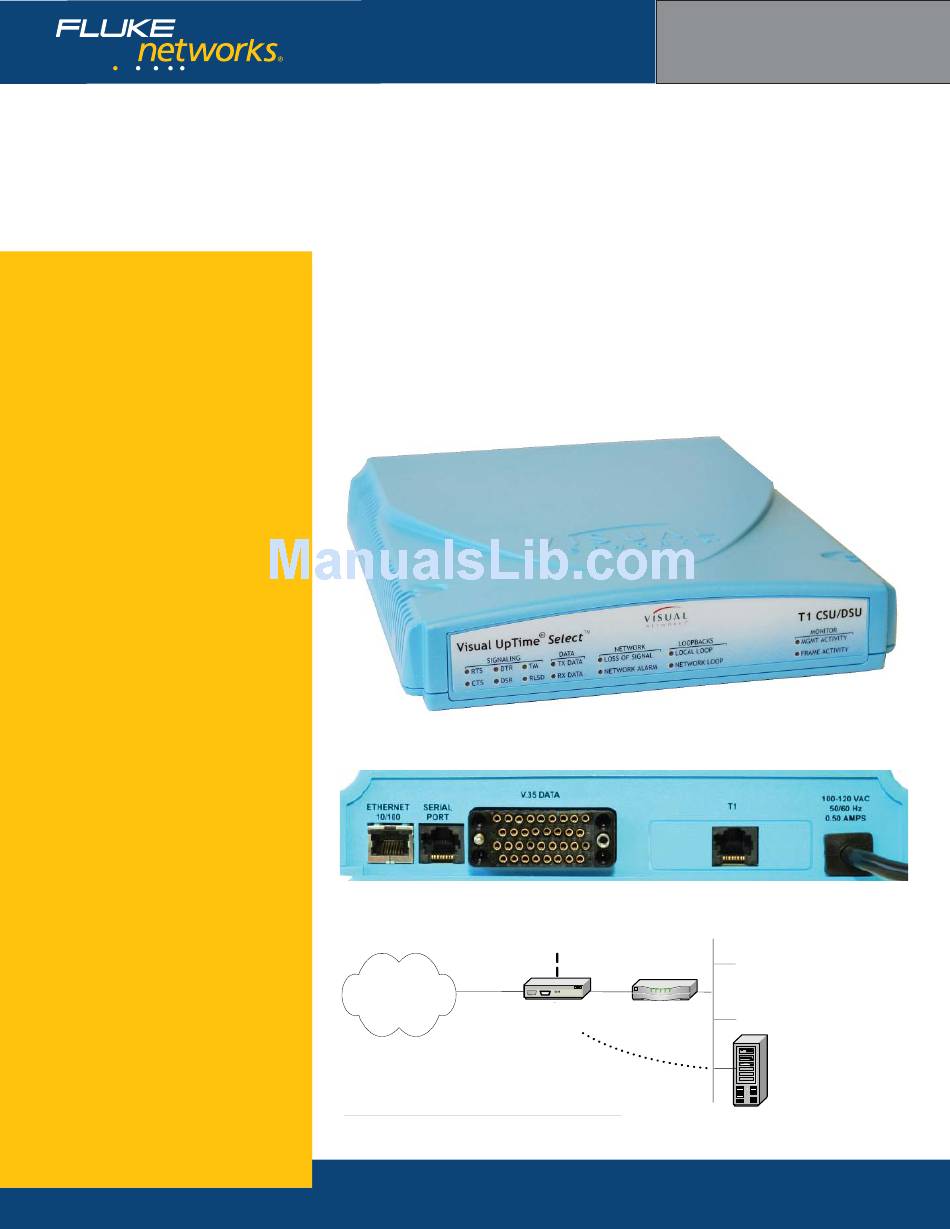

T1 CSU/DSU model 807-0110 front view
T1 CSU/DSU model 807-0110 rear view
Demarcation Point
T1 Access
Line
Wide Area
Network
T1 CSU/DSU model 807-0110 position on network
Visual UpTime Select
ASE model 807-0110
IP Transport software for deployment in frame relay or
HDLC-based networks that use IP switching.
In addition to performing standard CSU/DSU
functions—such as BER tests, loopbacks, and power
failure detection—the ASE is capable of inserting
management traffi c.
V.35
Line
CSU/DSU
ASE
Optional LAN
Connection
Visual
UpTime
Select
Server
