Fluke Visual UpTime Select 807-0115 Brochure & Specs page 11

HSSI i nline probe ASE
W i t h L i n k S a f e c a p a b i l i t i e s
Key features
• Inband management capabilities
• LinkSafe technology
• Power loss detection
• Multi-Protocol or IP Transport software
• Service Level Agreement (SLA) metrics
• Application analysis capability
• LMI spoofi ng
• LAN management port
• Realtime events
Technical Data
The Visual UpTime® Select™ HSSI LinkSafe™ inline
probe ASE is deployed inline on a High Speed Serial
Interface (HSSI) access line, typically between a
CSU/DSU and customer edge router. It is capable of
monitoring traffi c fl owing through a bi-directional
HSSI connection at data rates up to 44.7 Mbps.
The HSSI ASE supports Multi-Protocol software for
deployment in standard frame relay or HDLC networks
and IP Transport software for deployment in frame
relay or HDLC-based networks that use IP switching.

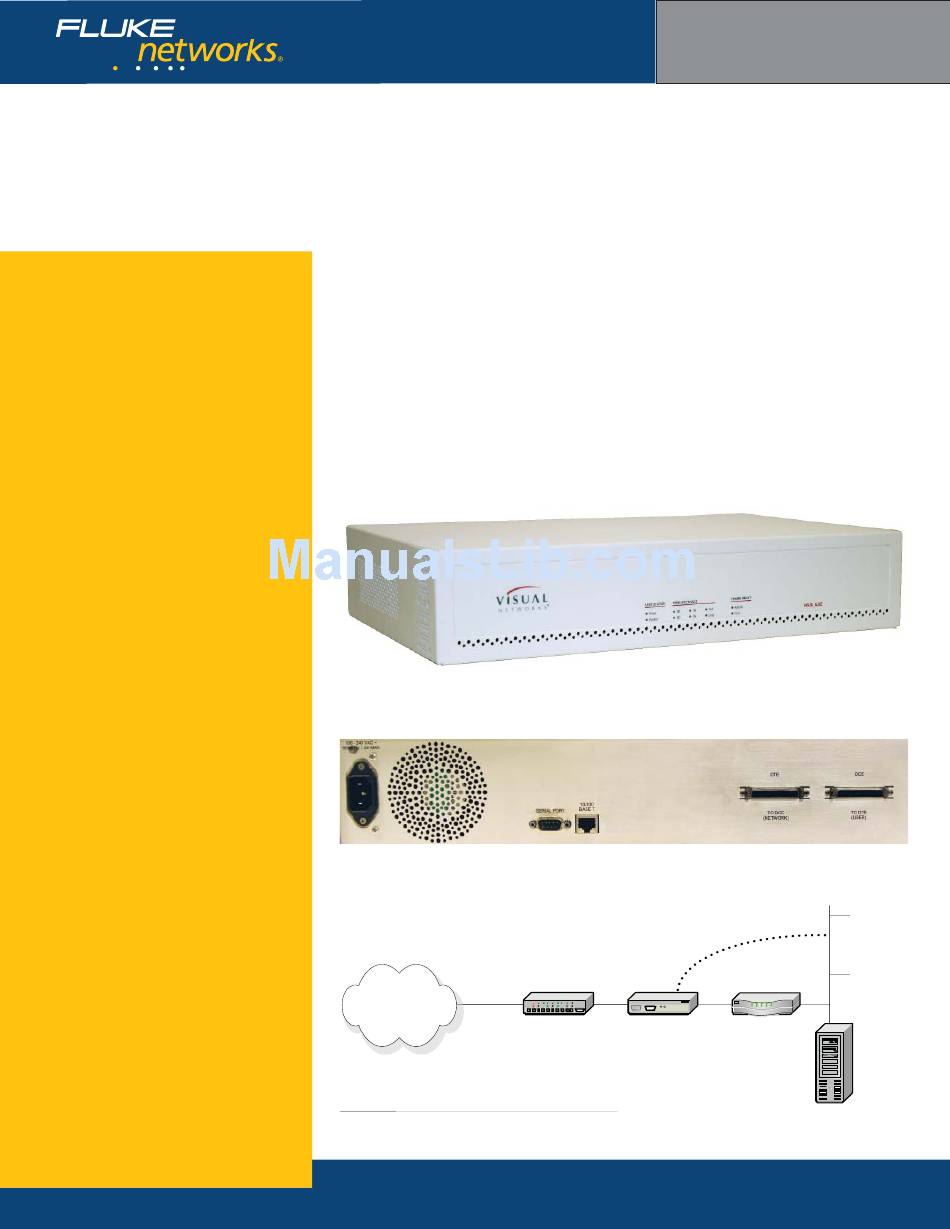

HSSI inline probe model 807-0106 front view
HSSI inline probe model model 807-0106 rear view
Access Line
WAN
HSSI inline probe model 807-0106 position on network
Visual UpTime Select
ASE model 807-0106
The ASE also includes LinkSafe technology to protect
circuit integrity in case of an ASE outage, as well as
power failure notifi cation.
The HSSI ASE has two HSSI interfaces, Data Ter-
minal Equipment (DTE) for monitoring traffi c to the
network and Data Communication Equipment (DCE)
for monitoring traffi c from the network. Because of
its high speed capabilities, a HSSI ASE can support
data passed through the CSU/DSU from NxT1
and DS3 lines.
Optional LAN
Connection
CSU/DSU Inline ASE
LAN
CPE Router
Visual UpTime
Select Server
