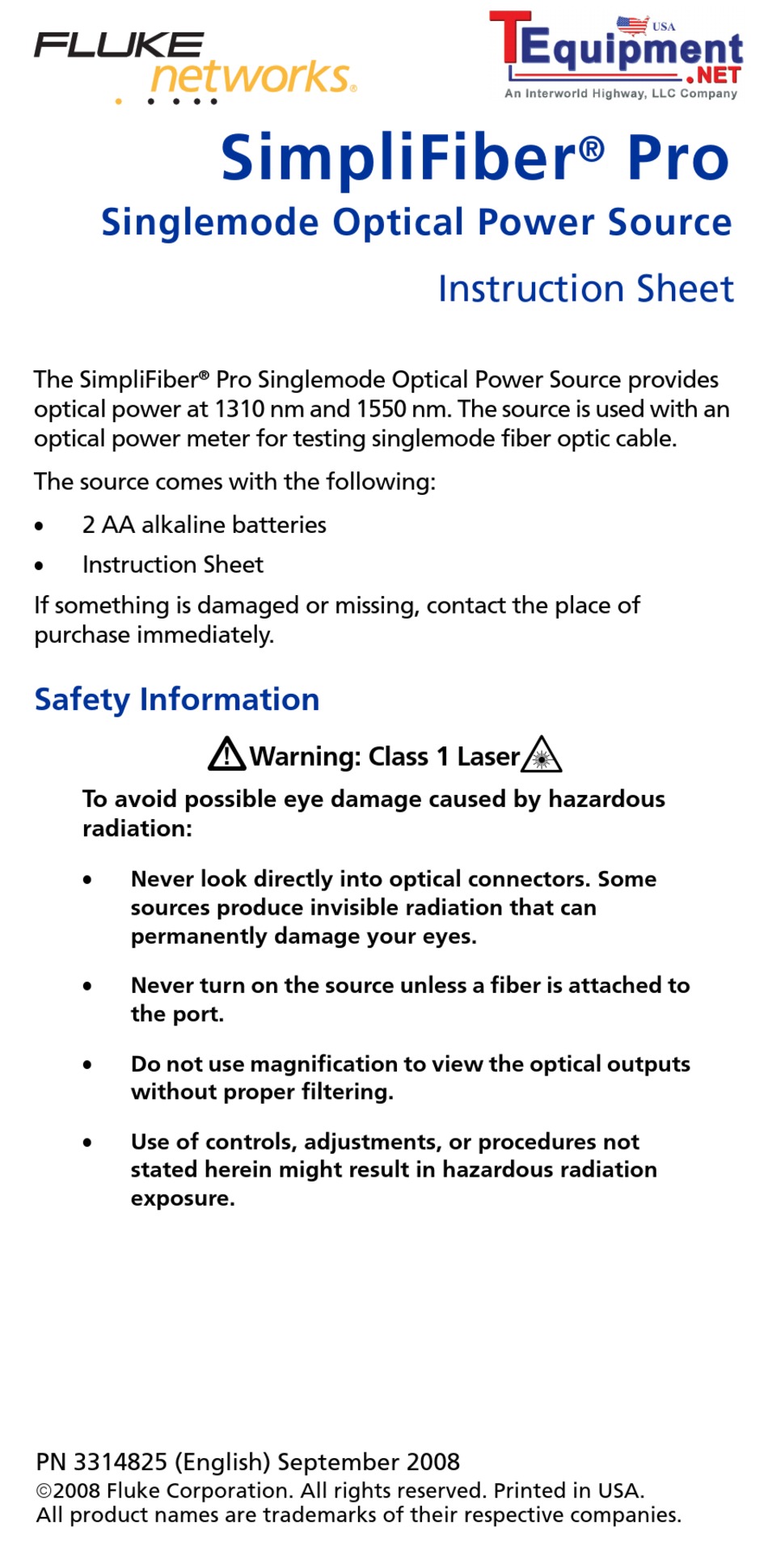

Singlemode Optical Power Source
The SimpliFiber
optical power at 1310 nm and 1550 nm. The source is used with an
optical power meter for testing singlemode fiber optic cable.
The source comes with the following:
2 AA alkaline batteries
Instruction Sheet
If something is damaged or missing, contact the place of
purchase immediately.

Safety Information

To avoid possible eye damage caused by hazardous
radiation:
Never look directly into optical connectors. Some
sources produce invisible radiation that can
permanently damage your eyes.
Never turn on the source unless a fiber is attached to
the port.
Do not use magnification to view the optical outputs
without proper filtering.
Use of controls, adjustments, or procedures not
stated herein might result in hazardous radiation
exposure.
PN 3314825 (English) September 2008
©2008 Fluke Corporation. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.
SimpliFiber
Pro Singlemode Optical Power Source provides
®
W
Warning: Class 1 Laser
®
Instruction Sheet
*
Pro
