V.35 i nline probe ASE
W i t h L i n k S a f e c a p a b i l i t i e s
Key features
• Inband management capabilities
• LinkSafe technology
• Multi-Protocol or IP Transport software
• Service Level Agreement (SLA) metrics
• Voice over IP (VoIP) analysis capability
• Application analysis capability
• LMI spoofi ng
• LAN management port
• Power loss detection
• Realtime events
Technical Data
The Visual UpTime® Select™ V.35 LinkSafe™ inline
probe ASE is deployed inline on a T1 access line,
typically between a CSU/DSU and customer premises
equipment. This ASE supports Multi-Protocol software
for deployment in standard frame relay or HDLC
networks and IP Transport software for deployment
in frame relay or HDLC-based networks that use IP
switching.

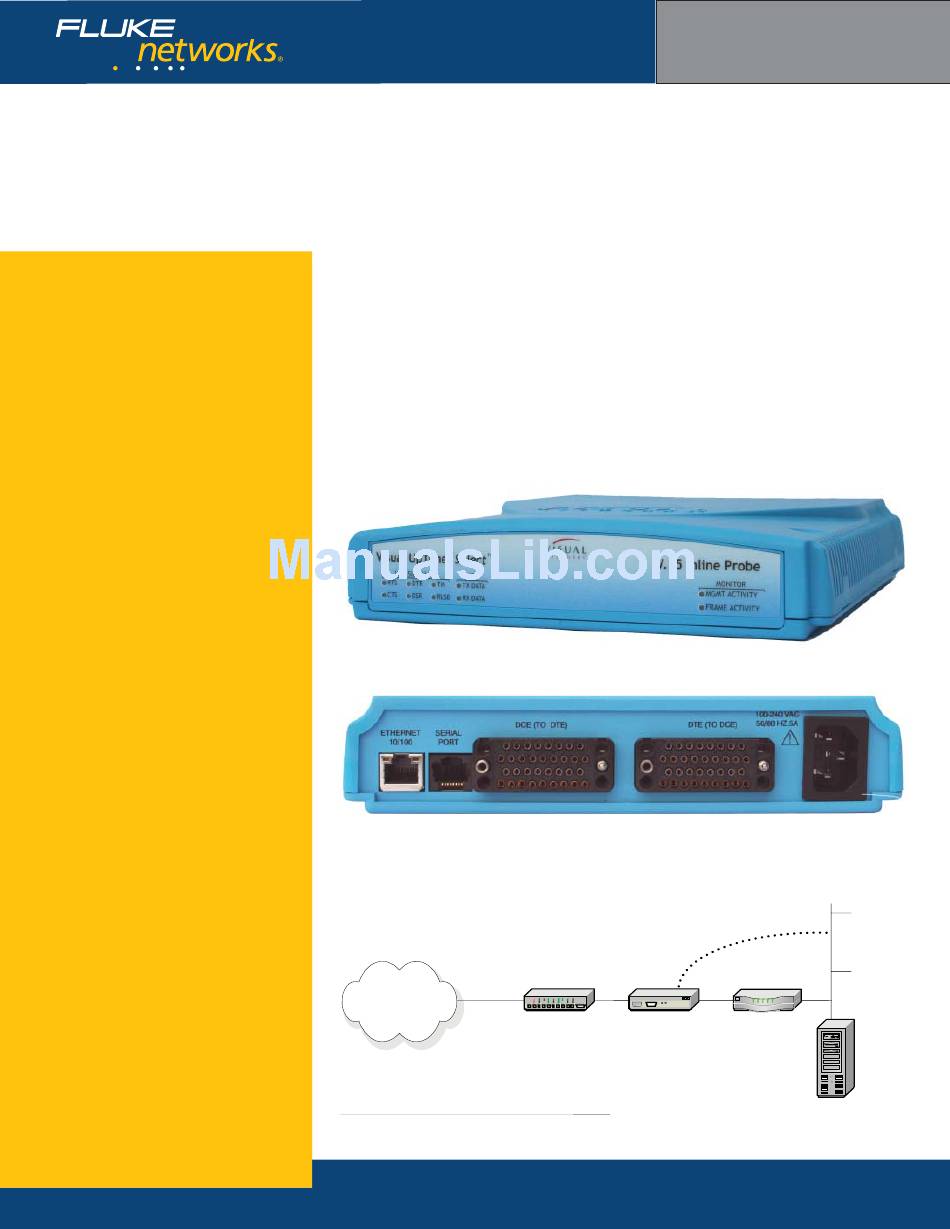

V.35 inline probe model 807-0104 front view
V.35 inline probe model model 807-0104 rear view
Access Line
WAN
V.35 inline probe model 807-0104 position on network
Visual UpTime Select
ASE model 807-0104
The V.35 inline probe ASE supports V.35 connectiv-
ity through a V.35 Data Terminal Equipment (DTE)
interface on the network side and Data Communica-
tions Equipment (DCE) interface on the user side.
The ASE operates at data rates up to 2.048 Mbps,
deriving timing from the network-side and sourcing
timing on the user side. It also includes LinkSafe
technology to protect circuit integrity in case of an
ASE outage, as well as power failure notifi cation.
Optional LAN
Connection
CSU/DSU Inline ASE
LAN
CPE Router
Visual UpTime
Select Server
