Fluke TAP-T1E1 Quick Installation Manual

Unpacking
(1) Quick Installation Guide
(1) TAP-T1E1 Single Port Copper Tap
Quick
Installation
T1/E1
Guide
Introduction
The TAP-T1E1 is a directional single-port full-duplex
device that provides an easy method to rapidly and
effectively deploy your analysis tools to monitor T1/E1
traffic between your network devices. Typically the tap
is installed on a critical T1/E1 link in the network where
monitoring and analysis capabilities are important.
TAP-T1E1 features and benefits:
• T1/E1 compatible
• Non-intrusive monitoring device
• Standard RJ45 connectors
TAP-T1E1 Specifications
FEATURE SPECIFICATION
CHANNEL One-directional T1/E1
CABLE TYPE CAT 5E
PORT CONNECTIVITY
LINE RJ45
NETWORK RJ45
TAP RJ45
90m max. length between
DISTANCE LIMIT
network end-points. Tap typically 1m.
POWER REQUIREMENTS none
OPERATING TEMPERATURE 0° to 40°C (32° to 104°F)
STORAGE TEMPERATURE -30° to 65°C (-22° to 149° )
HUMIDITY RH 5% to 95% non-condensing
(H) 28mm x (W) 146mm x (D) 146mm
DIMENSIONS (H) 1.10" x (W) 5.75" x (D) 5.75"
(includes rack mount bracket)
unit: 340.2g (12oz)
WEIGHT
shipping: 907.2g (2lbs)
R R A A C C K K I I N N S S T T A A L L L L A A T T I I O O N N M M E E T T H H O O D D S S
Prior to installation, you may want to contact your
Fluke Networks representative first to learn more
about using the included thumbscrew mounting
bracket for mounting in either a 1U 3-bay (TAP-RMK-3)
or 4U 14-bay (TAP-RMK-14) Rack Mount Kit.

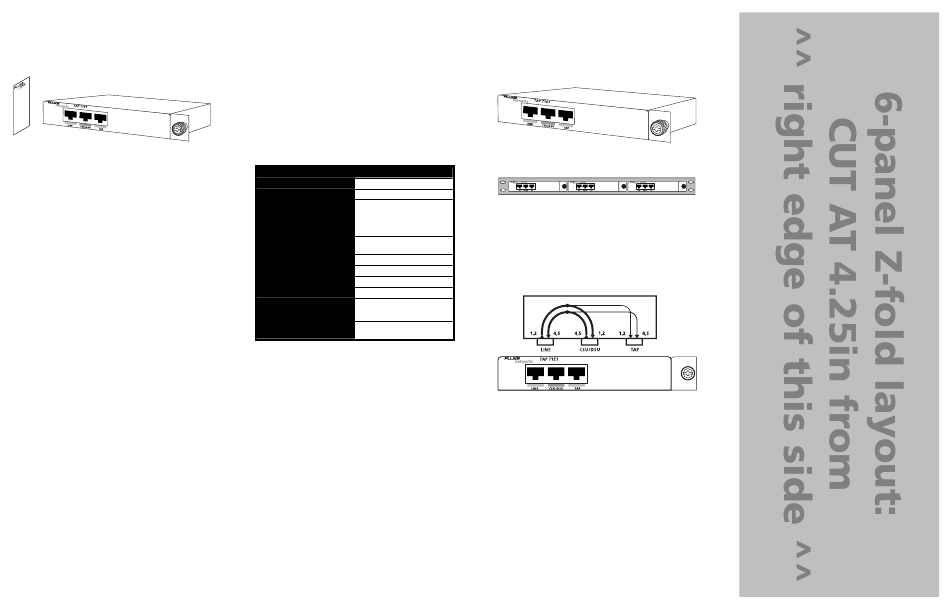

Figure 1. TAP-T1E1 unit shown with included
thumbscrew bracket for standalone mounting
Figure 2. Three TAP-T1E1 devices shown mounted in optional
3-bay (TAP-RMK-3) Rack Mounting Kit
F F U U N N C C T T I I O O N N A A L L O O P P E E R R A A T T I I O O N N
Refer to Figure 3 below for a functional operation
diagram of the TAP-T1E1.
Figure 3. TAP-T1E1 functional diagram
