Fluke Visual UpTime Select 807-0115 Brochure & Specs

4xT1/E1 i nline probe ASE
W i t h L i n k S a f e c a p a b i l i t i e s

Key features

• Four management ports
• MLPPP support on IP Transport software
• Inband management capability
• LinkSafe technology
• Power loss detection
• Service Level Agreement (SLA) metrics
• Application analysis capability
• LMI spoofi ng
• LAN management port
• Realtime events

Technical Data

The Visual UpTime® Select™ 4xT1/E1 inline probe
ASE enhances the data analysis functionality of the
Visual UpTime Select system for enterprises with
two-to-four T1 or E1 circuits terminating at a single
location. The ASE provides up to 6.176 Mbps
(T-standard) or 8.192 Mbps (E-standard) of detailed
network traffi c analysis and management, while
maintaining full wire speed pass-through of all
traffi c. In its initial release, the ASE supports IP
Transport software over MultiLink Point-to-Point
Protocol (MLPPP) T1 links.

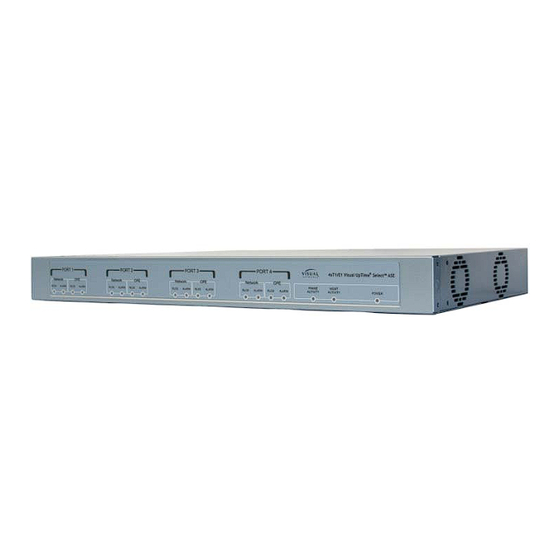

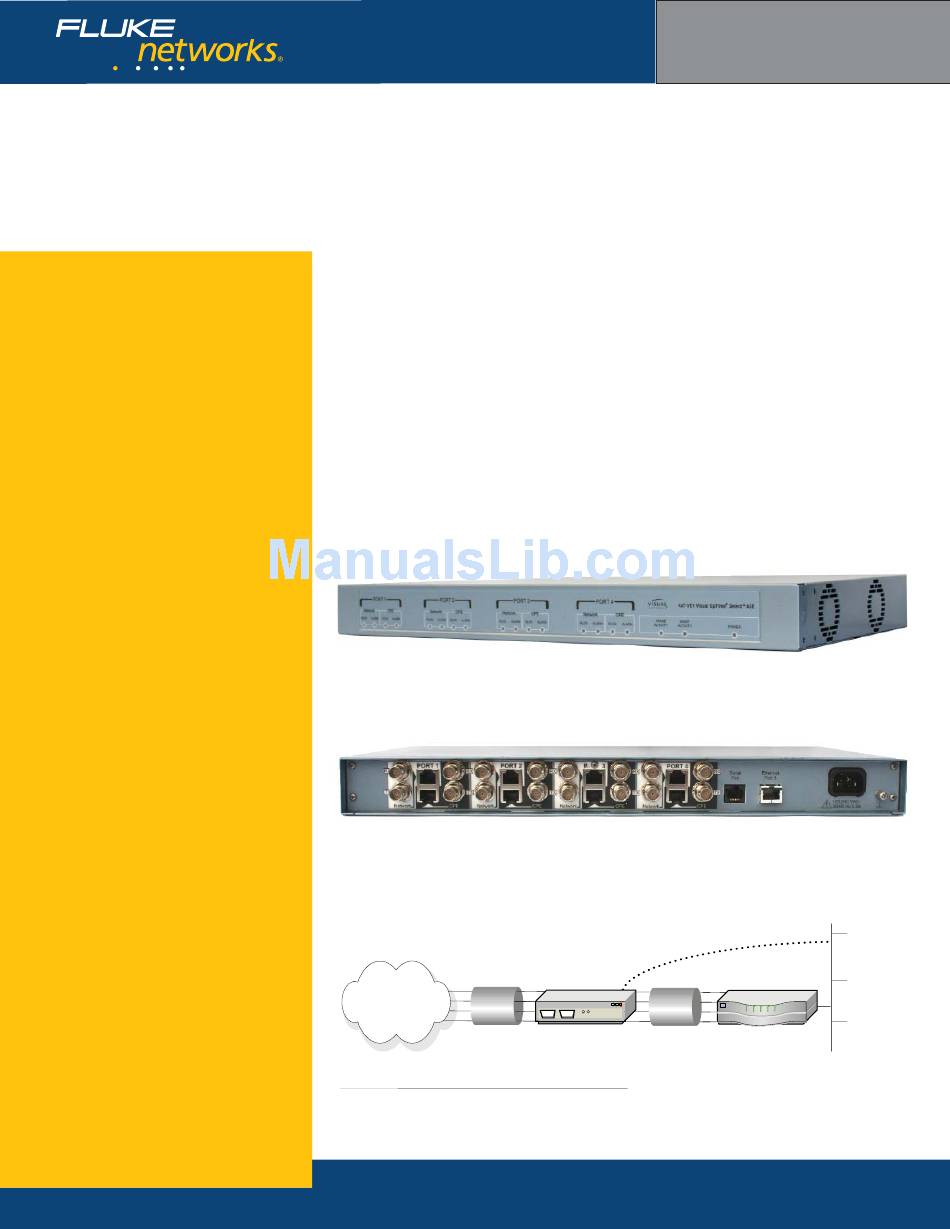

4xT1/E1 inline probe model 807-0115 front
4xT1/E1 inline probe model model 807-0115 rear
Bundled
T1 Line
WAN
4xT1/E1 inline probe model 807-0115 position on network
Visual UpTime Select
ASE model 807-0115
The 4xT1/E1 ASE includes LinkSafe™ technology
to protect circuit integrity in case of a power outage
and it also delivers a notifi cation alarm if there is a
power failure.
Designed for locations with multiple circuits
terminating at a single device, the 4xT1/E1 is typi-
cally deployed as an inline probe between the service
provider's edge device and the customer's termination
equipment. The fi gure below highlights the multilink
deployment for the 4xT1/E1 ASE.
Optional LAN Connection
4xT1/E1 inline ASE
CPE Router
LAN
