Fluke TAP-1000BT-SX Quick Installation Manual

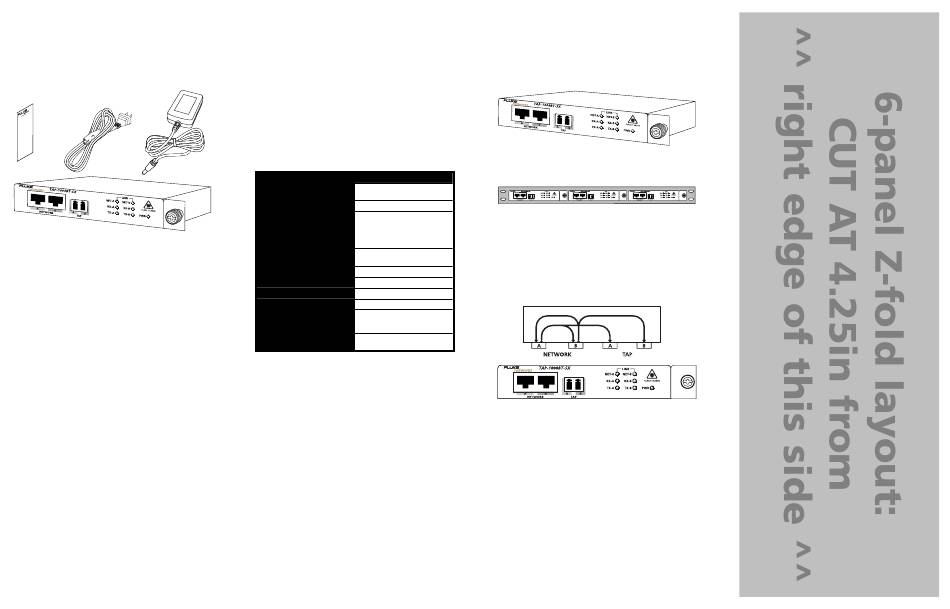

Unpacking
• (1) Quick Installation Guide
• (1) TAP-1000BT-SX Single Port Copper Tap
• (1) AC power cable
• (1) Power supply
AC Power AC Power
Quick
Supplies
Cables
Installation
Guide
Introduction
The TAP-1000BT-SX is a single-port full-duplex device
that provides an easy method to rapidly and effectively
deploy your analysis tools to monitor 1000BASE-T traffic
between your network devices. Typically the tap is
installed on a critical 1000BASE-T link in the network
where monitoring and analysis capabilities are important.
TAP-1000BT-SX features and benefits:
• 1000BASE-T compatible
• Full duplex monitoring
• Power fault tolerant
• Standard RJ45 and SX connectors
TAP-1000BT-SX Specifications
FEATURE SPECIFICATION
One-directional
CHANNEL
10/100/1000BASE-T Ethernet
CABLE TYPE CAT 5E and multi-mode fiber
PORT CONNECTIVITY
NETWORK A RJ45
NETWORK B RJ45
TAP A SX
TAP B SX
90m max. length between
DISTANCE LIMIT
network end-points. Tap typically 1m.
POWER REQUIREMENTS External power supply 5V DC, 1A
OPERATING TEMPERATURE 0° to 40°C (32° to 104°F)
STORAGE TEMPERATURE -30° to 65°C (-22° to 149° )
HUMIDITY RH 5% to 95% non-condensing
(H) 28mm x (W) 146mm x (D) 146mm
DIMENSIONS (H) 1.10" x (W) 5.75" x (D) 5.75"
(includes rack mount bracket)
unit: 340.2g (12oz)
WEIGHT
shipping: 907.2g (2lbs)
R R A A C C K K I I N N S S T T A A L L L L A A T T I I O O N N M M E E T T H H O O D D S S
Prior to installation, you may want to contact your
Fluke Networks representative first to learn more
about using the included thumbscrew mounting
bracket for mounting in either a 1U 3-bay (TAP-RMK-3)
or 4U 14-bay (TAP-RMK-14) Rack Mount Kit.
Figure 1. TAP-1000BT-SX unit shown with included
thumbscrew bracket for standalone mounting
Figure 2. Three TAP-1000BT-SX devices shown mounted in
optional 3-bay (TAP-RMK-3) Rack Mounting Kit
F F U U N N C C T T I I O O N N A A L L O O P P E E R R A A T T I I O O N N
Refer to Figure 3 below for a diagram showing
the functional operation of the TAP-1000BT-SX.
Figure 3. TAP-1000BT-SX functional diagram
