DC Terminal Block Wiring Instructions

The IE-MediaChassis/1 can also be powered with the DC terminal block. From a

power source, connect to any one positive and any one negative terminal on IE-

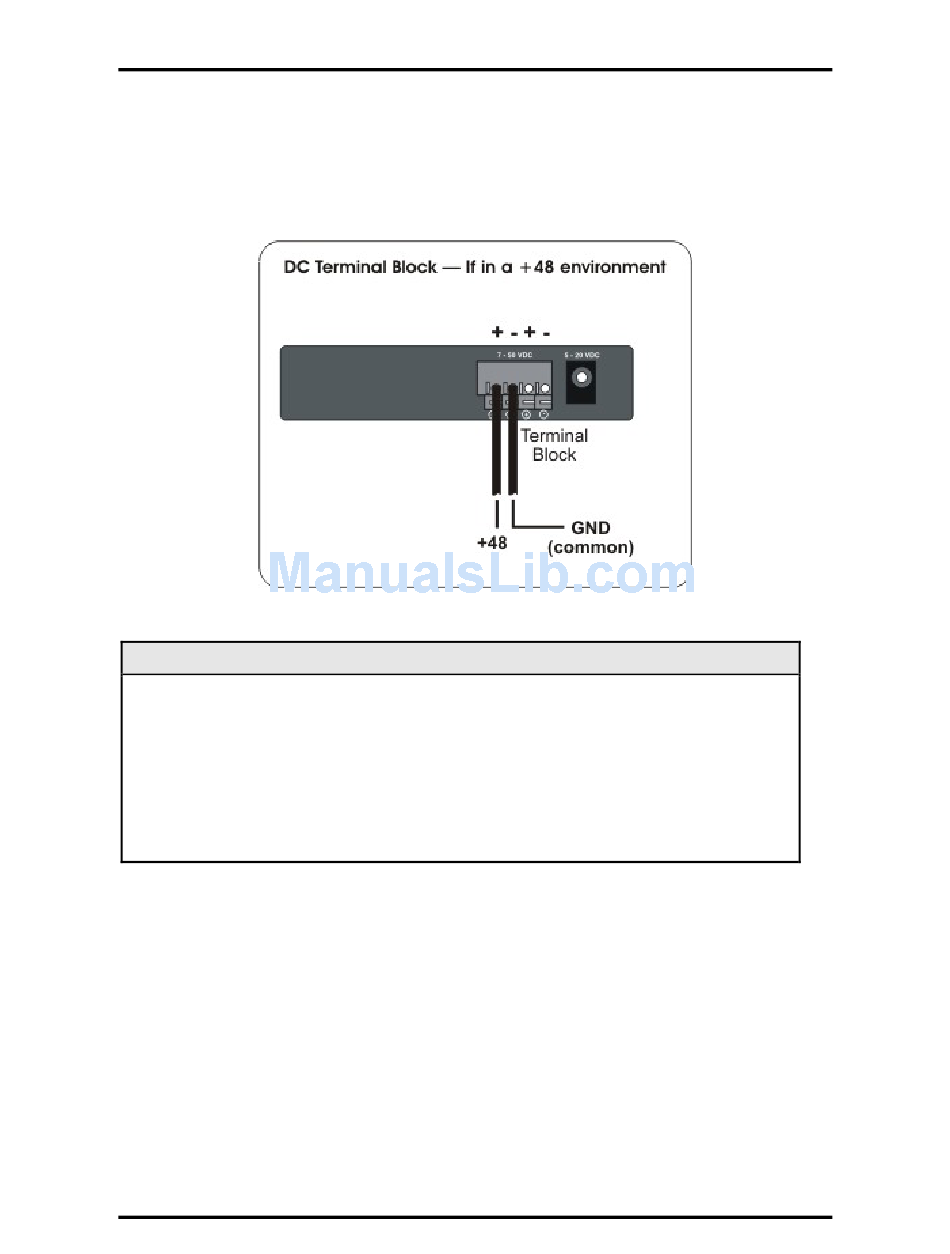

MediaChassis/1. The following chart illustrates an example of the wiring

configurations for the DC terminal block of IE-MediaChassis/1 (±7 to ±50 VDC).

When using stranded wire, the leads must be tinned. The chassis is protected

against mis-wiring; if mis-wired the chassis will not function. The chassis is

internally connected to the negative power terminal.

The power source in this chassis is not isolated, and cannot support positive

reference ground systems typically used in Telco environments. The

MediaChassis/2-DC and the iMediaChassis/6-DC are suitable alternatives.
