Summary of Contents for IMC Networks iMcV-MediaLinX

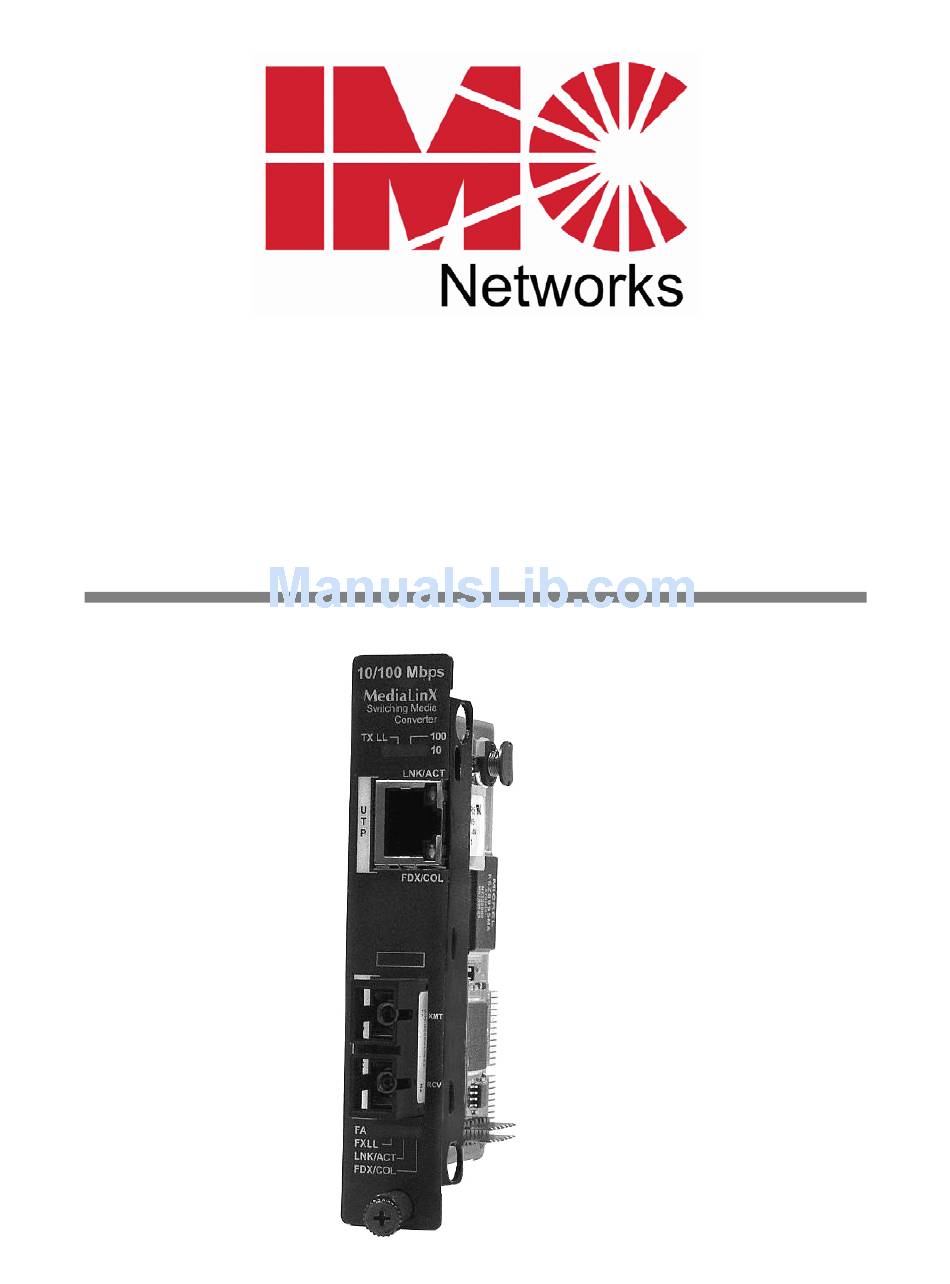

- Page 1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
About the iMcV-MediaLinX................1 Configuration Instructions ..................1 Installing an iMcV Module..................1 FX LinkLoss, TX LinkLoss, Link Fault Pass-Through, FiberAlert and Far End Fault.3 Link Fault Pass-Through (LFPT)................4 Auto Negotiation on iMcV-MediaLinX..............6 Additional MediaLinX Features................7 LED Operation....................8 Installation Troubleshooting ................9 Specifications ....................10 IMC Networks Technical Support..............10... -

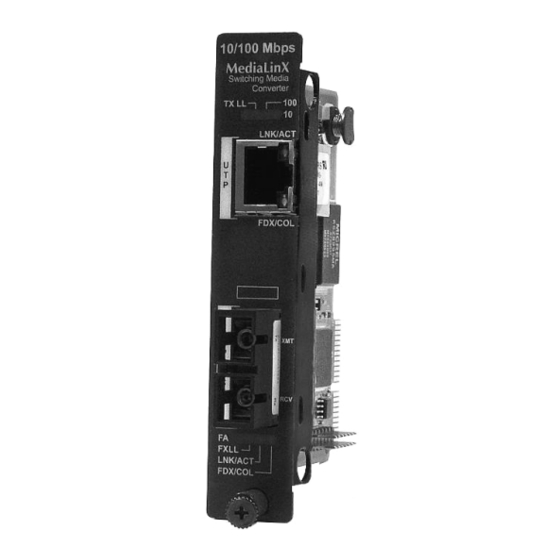

Page 4: About The Imcv-Medialinx
SNMP manageable iMediaChassis, as well as the MediaChassis series, which is unmanaged. The iMcV-MediaLinX is also available in a single-strand fiber version that allows two wavelengths to share one fiber strand—Full-Duplex data travels on different wavelengths;... -
Page 5: Managed Modules
Managed Modules To manage one or more iMcV-MediaLinX Modules, an SNMP agent must be present in the chassis: The iMediaChassis series requires an SNMP Management Module. To configure Managed Modules, install the module first, and then configure using the management software. All fiber type information is now loaded into a NVRAM during manufacturing. -
Page 6: Fx Linkloss, Tx Linkloss, Link Fault Pass-Through, Fiberalert And Far End Fault
The appropriate “LNK” (link) LED is lit to indicate this. The IMC Networks media converter also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other... -
Page 7: Link Fault Pass-Through (Lfpt)
Link Fault Pass-Through (LFPT) is a troubleshooting feature that combines TX and FX LinkLoss from both the local and remote iMcV-MediaLinX modules. LFPT is enabled by turning on both FX and TX LinkLoss on both modules. This feature allows either end of the conversion to detect a link fault occurring at the other end of the media conversion chain. - Page 8 For example if a fault should occur on segment 2 in the direction of segment 1 to 3, FEF would be engaged on the iMcV-MediaLinX between segment 2 and 3. This would then send a signal back to the iMcV-MediaLinX between segment 1 and 2. If the iMcV-MediaLinX between segment 1 and 2 is in a managed chassis, the chassis would send a trap that the port is down.
-
Page 9: Auto Negotiation On Imcv-Medialinx
If the twisted pair port on the other device does not have the ability to Auto Negotiate or a half-duplex connection is desired, then Auto Negotiation must be disabled. The iMcV-MediaLinX is capable of 10 Mbps (half and full duplex) as well as 100 Mbps (half and full duplex). -
Page 10: Additional Medialinx Features
TX Duplex Mode The Duplex Mode settings of the iMcV-MediaLinX converter are offered on DIP Switch #2: FDX:OFF, HDX:ON The default duplex mode for iMcV-MediaLinX is Full-Duplex. This mode is recommended if the End device does not offer Auto... -
Page 11: Led Operation
The Duplex Mode on the fiber port can be configured using DIP Switch #6. This mode is available if the iMcV-MediaLinX is connected to a legacy device fiber-based port. If the legacy device is only capable of HDX, the iMcV-MediaLinX guarantees that it will not transmit at the same time it is receiving. -
Page 12: Installation Troubleshooting
When connecting to an end device, such as another switch, be sure to use the same configuration on its port as well as the iMcV-MediaLinX. For example, if the end device is set to a FORCE mode, then set the copper port of the iMcV- MediaLinX to a FORCE mode as well. -
Page 13: Specifications
5 - 95% (non-condensing) Power Consumption (Typical) iMcV-MediaLinX: 300mA Fiber Optic Specifications For fiber optic specifications, please visit: http://www.imcnetworks.com/adocs/fcs.asp IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web:... -
Page 14: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 15: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 16 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-MediaLinX is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
