Package Contents

Ensure that in addition to the VCX V7122, the package contains:
For the dual AC power supply version two AC power cables are supplied; for the single
AC power supply version one AC power cable is supplied.
For the DC power supply version, one connectorized DC power cable (crimp connection
type) and one DC adaptor (screw connection type) connected to the rear panel of the
VCX V7122 are supplied; use only one type.
CD (software and documentation).
Small plastic bag containing (see
Two brackets and four bracket-to-device screws for 19-inch rack installation option.
Four anti-slide bumpers for desktop / shelf installation option.

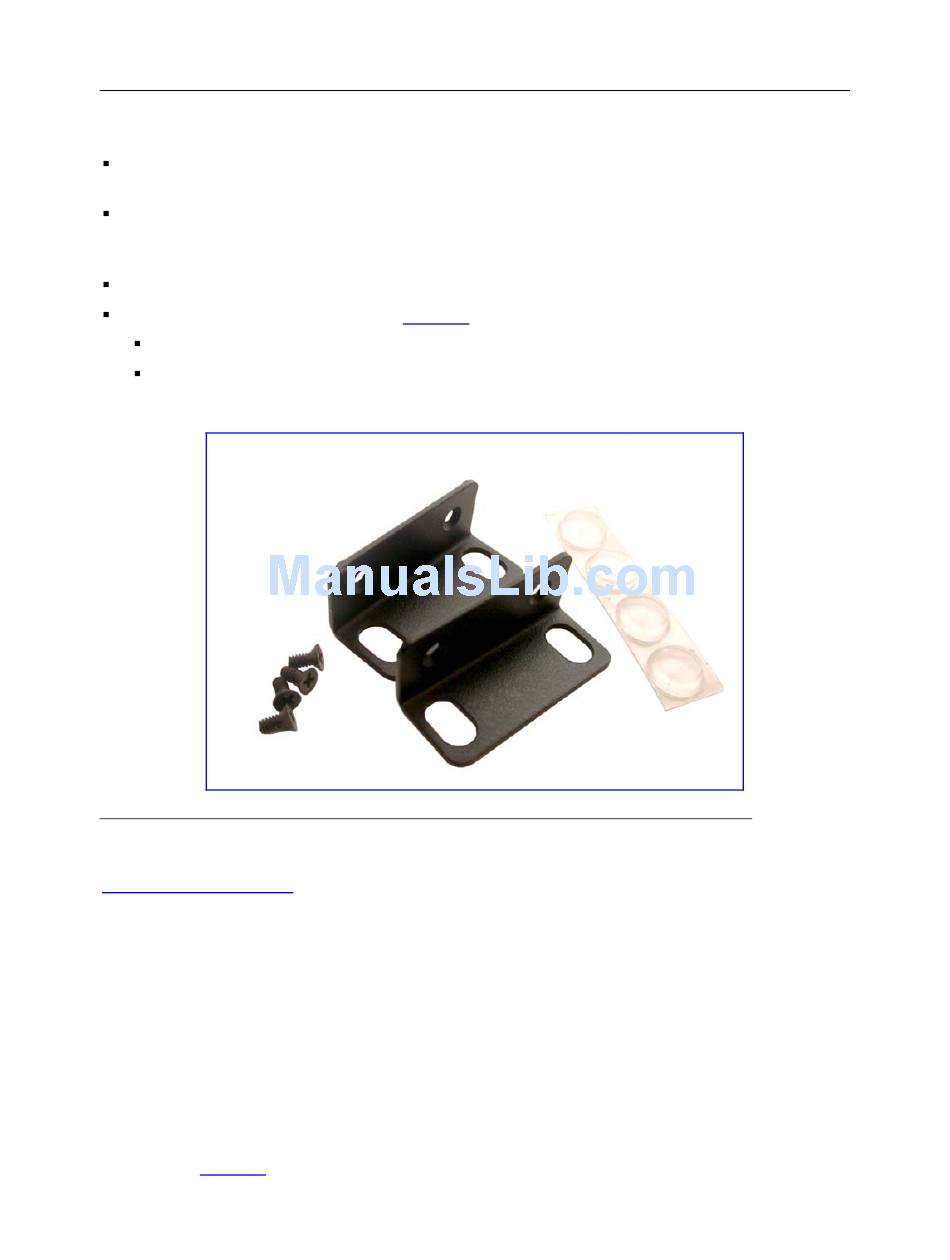

Figure 6 19-inch Rack & Desktop Accessories

Mounting the VCX V7122

The VCX V7122 can be mounted on a desktop, or installed in a standard 19-inch rack. See
Cabling the VCX V7122

Mounting the VCX V7122 on a Desktop

No brackets are required. Optionally, attach the four (supplied) anti-slide bumpers to the
base of the VCX V7122 and place it on the desktop in the position you require.

Installing the VCX V7122 in a 19-inch Rack

Users can install the device in a standard 19-inch rack either by placing the device on a shelf
preinstalled in the rack (preferred method), or by attaching the device directly to the rack's
frame via integral brackets.
Before rack mounting the chassis, attach the two (supplied) brackets to the front sides of the
device (see Figure 7).
26
Figure 6):
on page 28 for cabling the VCX V7122.
