Table 22
IP Connectivity Parameters
Column Name Description
Quality Status Determines the QoS (according to packet loss and delay) of the IP address.
Can be one of the following:
Unknown = Recent quality information isn't available.
OK
Poor
Note: This field is applicable only if the parameter 'AltRoutingTel2IPMode' is set to 2 or 3.
Quality Info. Displays QoS information: delay and packet loss, calculated according to previous calls.
Note: This field is applicable only if the parameter 'AltRoutingTel2IPMode' is set to 2 or 3.
DNS Status Can be one of the following:
DNS Disable
DNS Resolved
DNS Unresolved
IP Tel and Tel IP Call Counters
The IP Tel and Tel IP Call Counters screens provide you with statistic information on
incoming and outgoing calls. You can reset this information by clicking the Reset Counters
button.
To view the IP Tel and Tel IP Call Counters information:
Open the Call Counters screen you want to view (Status & Diagnostics menu >
Gateway Statistics submenu); the relevant Call Counters screen is displayed.
shows the 'Tel IP Call Counters' screen.

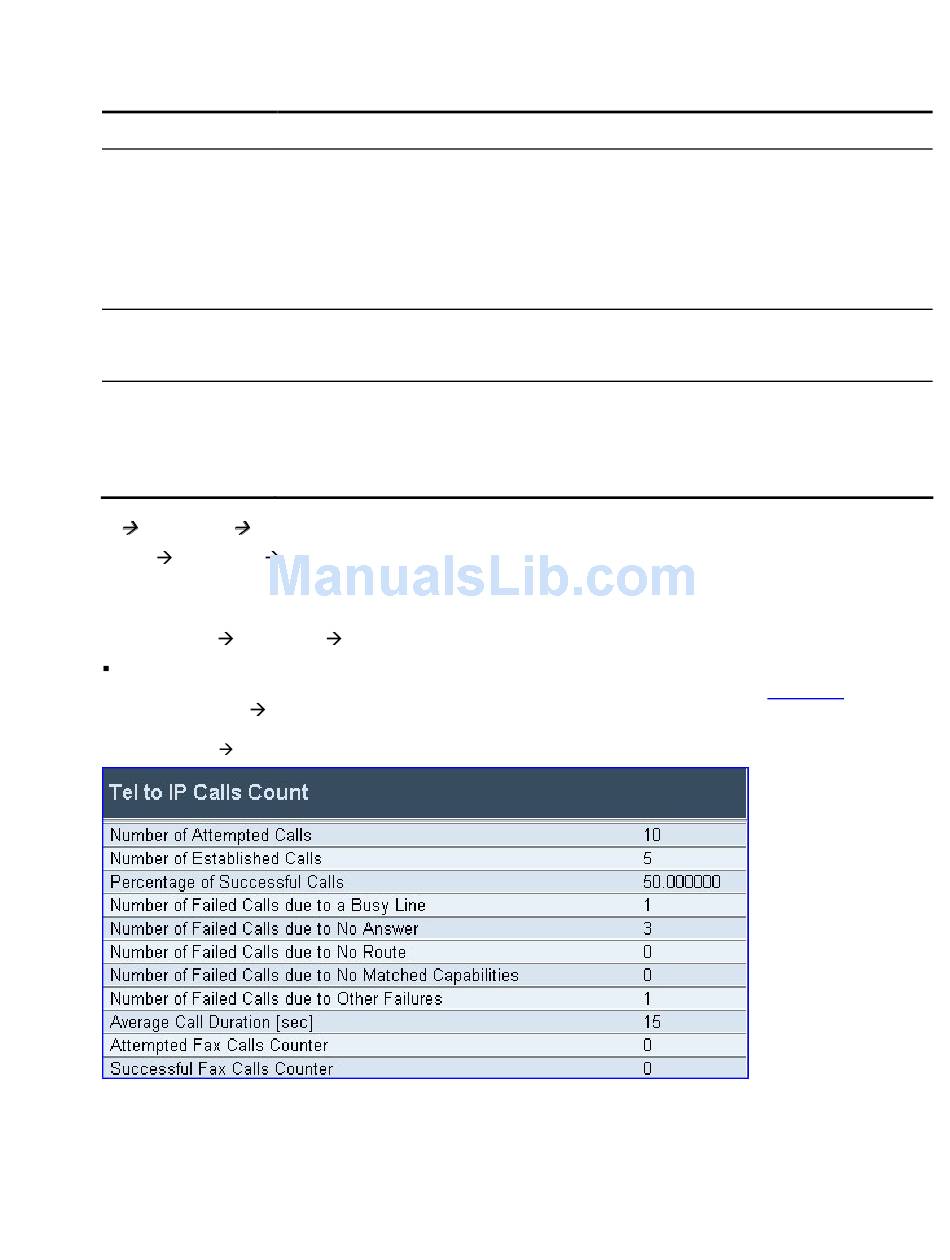

Figure 38
Tel IP Call Counters Screen

Monitoring the VCX V7122 Trunks and Channels

The Trunk & Channel Status screen provides real time monitoring on the current status of
the VCX V7122 trunks & channels.
3Com VCX V7122 SIP VoIP Gateway User Manual
Figure 38
77
