Client Configuration Window

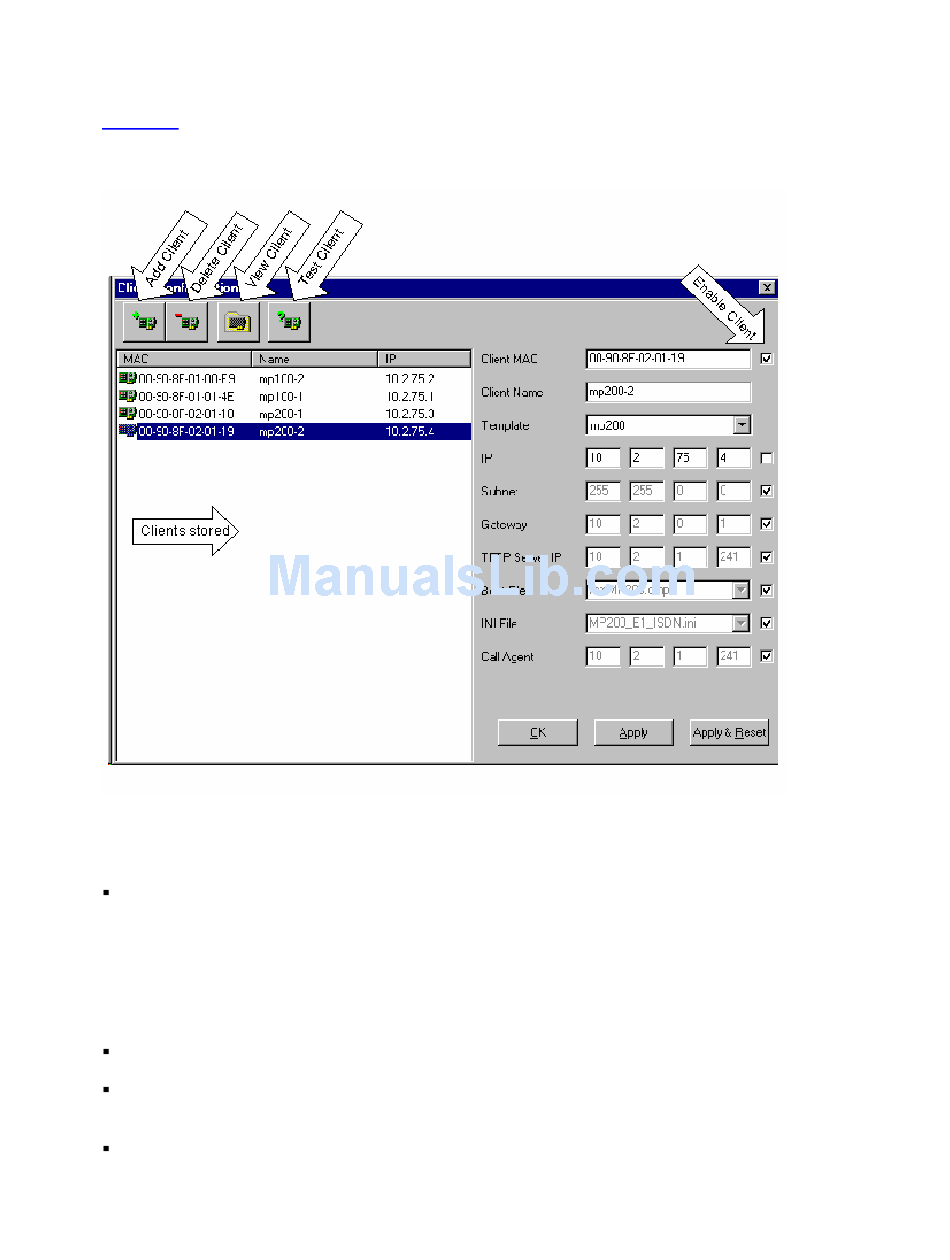

Figure 64 is the Client Configuration Window in which clients are added and defined.
Client Configuration Window
Figure 64
In the left pane of the window is the client list. By clicking on a client in this list, the following
parameters for this client are displayed on the right side of the window:
Client MAC – This is the MAC address of the client. When the user edits the MAC, a
new client is added, with the same parameters as the previous client.
The client can be disabled by clearing the check box on the right side of the Client MAC,
causing the BootP server not to reply to the BootP request. The client can be enabled by
selecting the check box. Click Apply button each time the Client Enable check box is
selected or cleared.
Client Name – Free text for client description.
Template – The template to be used for this client. When a template is selected, its
parameters override all of the previous parameters.
IP, Subnet, Gateway – Normal IP parameters.
