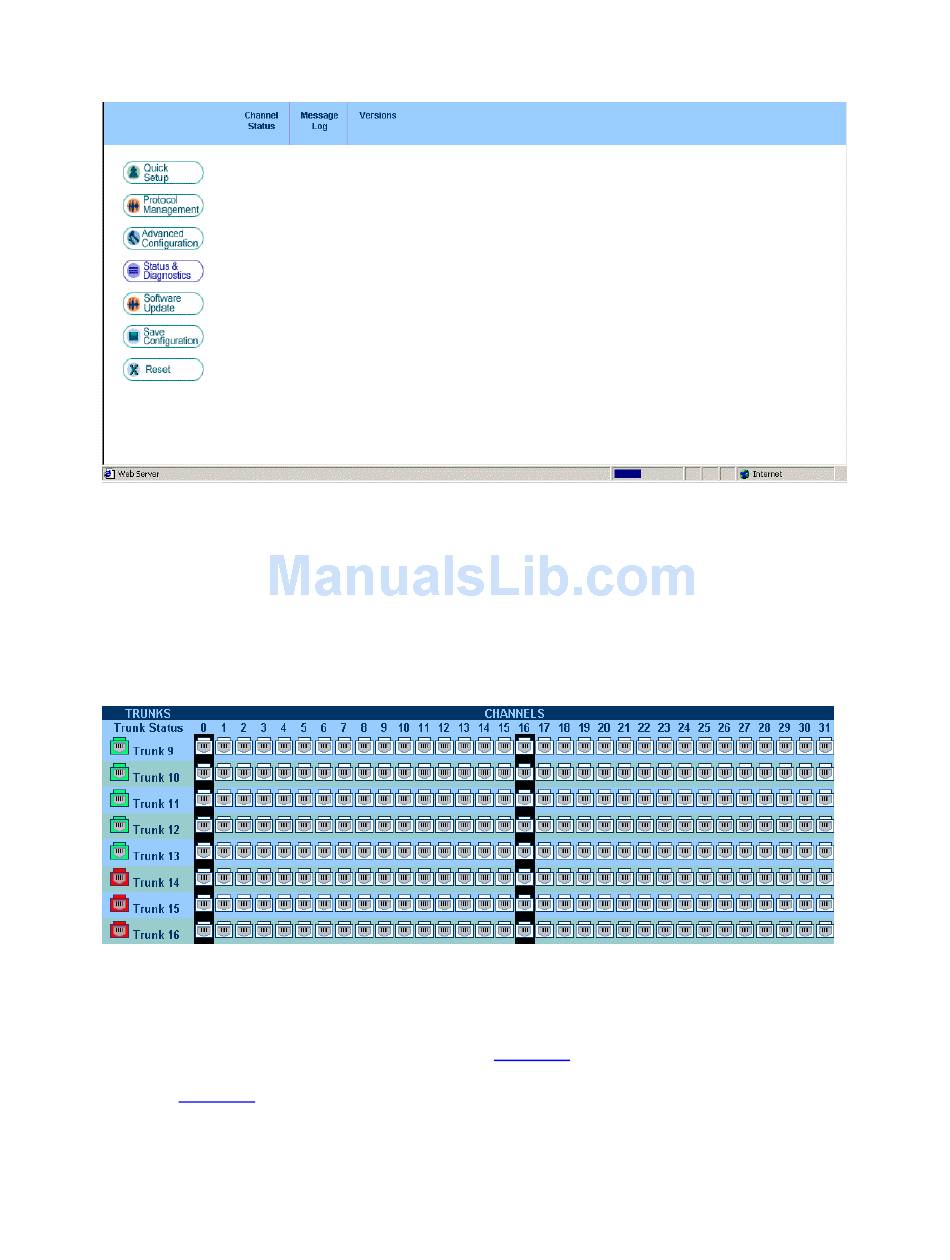

Status and Diagnostics Menu
Figure 52
To display the active configuration of a section and its relevant parameters; click an
2
option in the sub-menu bar on the top (for example, Channel Status or Message Log).
Trunk and Channel Status
To access the Trunk and Channel Status screen on the sub-menu bar on the top, click
Channel Status. The Trunk and Channel Status screen appears. The screen is Read-only.
Trunk and Channel Status
Figure 53
The number of trunks and channels depends of the system configuration. In this example, a
system with eight spans and 32 E1 links (from 0 through 31) is shown.
The Trunk Status indicators can appear colored.
their descriptions. Selecting any channel provides detailed information on that channel,
shown in Figure 55. Selecting each of the sub menus shows the active channel configuration
of each section and the values of its relevant parameters.
122
Figure 54 shows the possible indicators and
