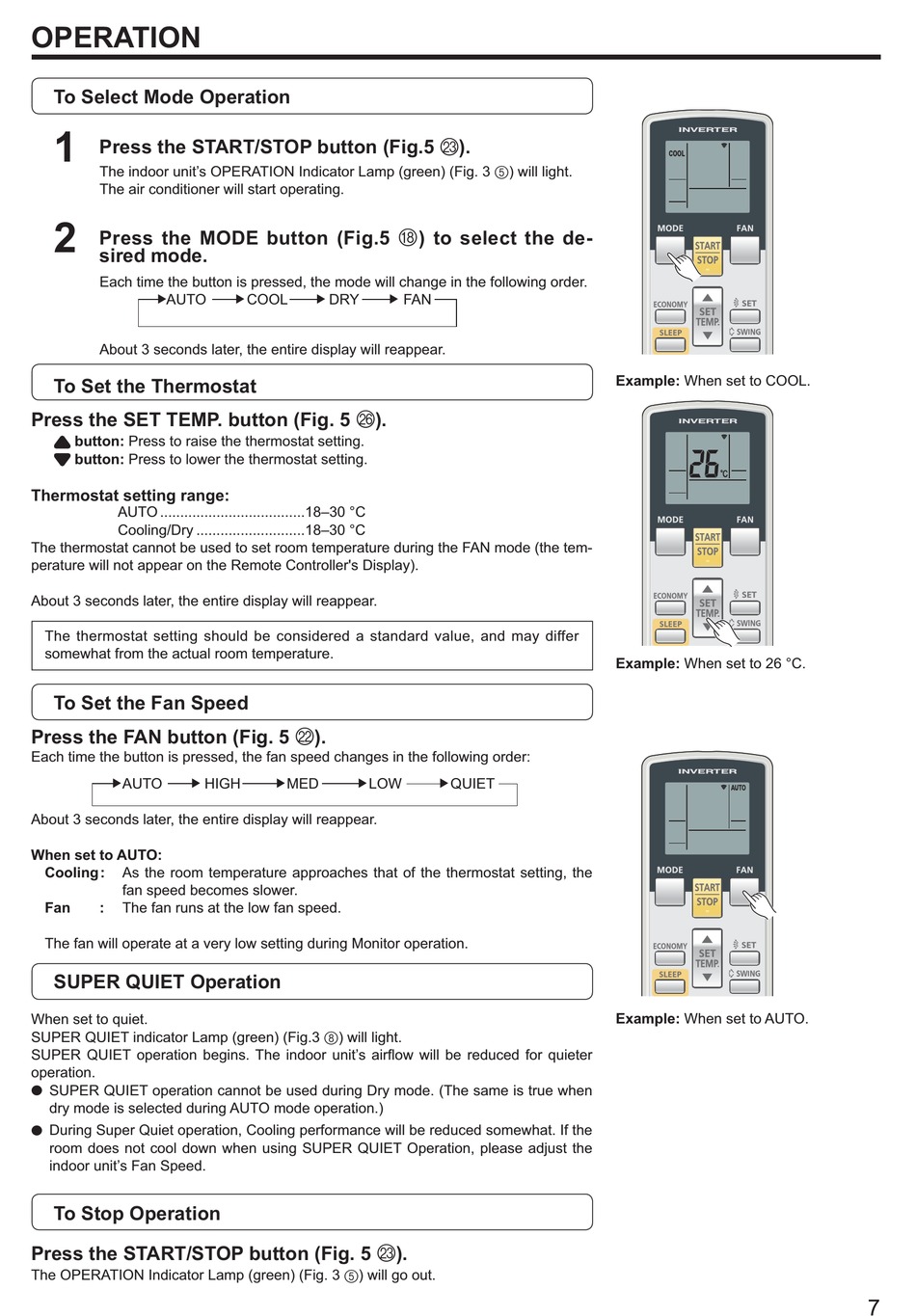

OPERATION

To Select Mode Operation
1
Press the START/STOP button (Fig.5 M ).
The indoor unit's OPERATION Indicator Lamp (green) (Fig. 3 5) will light.
The air conditioner will start operating.
2
Press the MODE button (Fig.5 H ) to select the de-
sired mode.
Each time the button is pressed, the mode will change in the following order.
AUTO
About 3 seconds later, the entire display will reappear.
To Set the Thermostat
Press the SET TEMP. button (Fig. 5 P ).
button: Press to raise the thermostat setting.
button: Press to lower the thermostat setting.
Thermostat setting range:
AUTO ....................................18–30 °C
Cooling/Dry ...........................18–30 °C
The thermostat cannot be used to set room temperature during the FAN mode (the tem-
perature will not appear on the Remote Controller's Display).
About 3 seconds later, the entire display will reappear.
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN button (Fig. 5 L ).
Each time the button is pressed, the fan speed changes in the following order:
AUTO
HIGH
About 3 seconds later, the entire display will reappear.
When set to AUTO:
Cooling :
As the room temperature approaches that of the thermostat setting, the
fan speed becomes slower.
Fan
:
The fan runs at the low fan speed.
The fan will operate at a very low setting during Monitor operation.
SUPER QUIET Operation
When set to quiet.
SUPER QUIET indicator Lamp (green) (Fig.3 8) will light.
SUPER QUIET operation begins. The indoor unit's airÀ ow will be reduced for quieter
operation.
● SUPER QUIET operation cannot be used during Dry mode. (The same is true when
dry mode is selected during AUTO mode operation.)
● During Super Quiet operation, Cooling performance will be reduced somewhat. If the
room does not cool down when using SUPER QUIET Operation, please adjust the
indoor unit's Fan Speed.
To Stop Operation
Press the START/STOP button (Fig. 5 M ).
The OPERATION Indicator Lamp (green) (Fig. 3 5) will go out.
COOL
DRY
FAN
MED
LOW
Example: When set to COOL.
Example: When set to 26 °C.
QUIET
Example: When set to AUTO.
7
