Fujitsu Halcyon 9362292047 Operating Manual

Ceiling suspension type
Hide thumbs

Advertisement

Quick Links

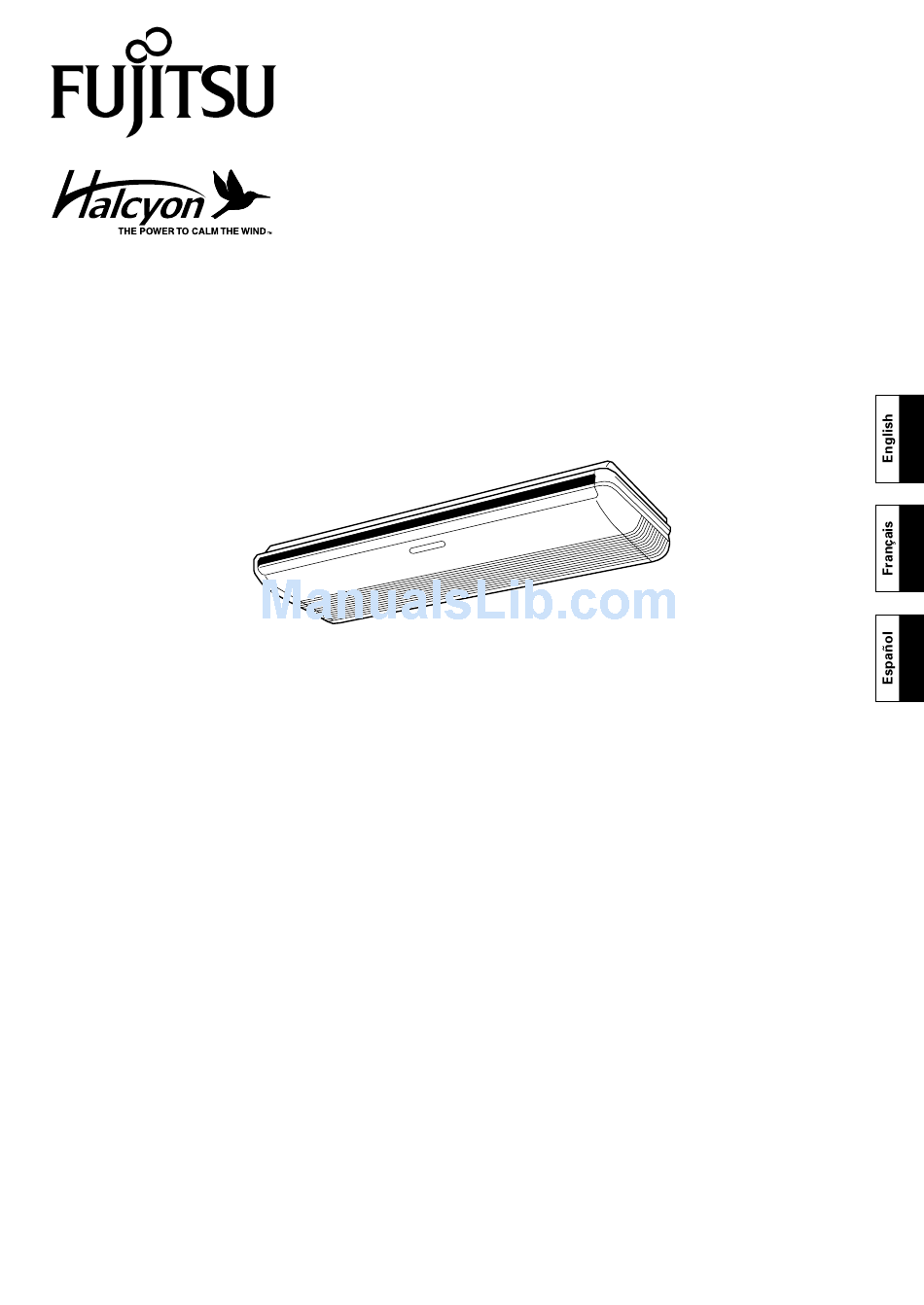

AIR CONDITIONER
CEILING SUSPENSION
TYPE
KEEP THIS MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
OPERATING MANUAL
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
P/N9362292047

Advertisement

loading

  Related Manuals for Fujitsu Halcyon 9362292047

  Summary of Contents for Fujitsu Halcyon 9362292047

  • Page 1 OPERATING MANUAL MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO AIR CONDITIONER CEILING SUSPENSION TYPE KEEP THIS MANUAL FOR FUTURE REFERENCE FUJITSU GENERAL LIMITED P/N9362292047...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ........1 SWING OPERATION ..........11 FEATURES AND FUNCTIONS ......2 MANUAL AUTO OPERATION ......12 NAME OF PARTS ........... 3 CLEANING AND CARE ........12 PREPARATION ............5 SELECTING THE REMOTE CONTROL UNIT OPERATION ............6 SIGNAL CODE .............
  • Page 3: Features And Functions

    FEATURES AND FUNCTIONS AUTOMATIC OPERATION G COOLING MODEL Merely press the START/STOP button, and the unit will begin automatic operation in the Cooling or Dry mode as appropriate, in accordance with the thermostat setting and the actual temperature of the room. G HEAT &...
  • Page 4: Name Of Parts

    NAME OF PARTS Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Fig. 1 MANUAL AUTO SWING SWING TIMER OPERATION Fig. 2 Electrical Breaker This breaker is installed during the electrical installation. Fig. 3 Fig.
  • Page 5 Fig. 4 Remote Control Unit Fig. 1 Indoor Unit 1 Operating Control Panel (Fig. 2) A SLEEP button B MASTER CONTROL button 2 MANUAL AUTO button 3 Remote Control Signal Receiver C SET TEMP./SET TIME buttons ( 4 OPERATION Indicator Lamp (red) D Signal Transmitter E TIMER button 5 TIMER Indicator Lamp (green)
  • Page 6: Preparation

    PREPARATION Load Batteries (R03/LR03/AAA × × × × × 2) CAUTION! G Take care to prevent infants from accidentally swallowing batteries. Press and slide the battery compartment lid on the re- G When not using the remote control unit verse side to open it. for an extended period, remove the batteries to avoid possible leakage and Slide in the direction of the arrow while pressing the...
  • Page 7: Operation

    OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). To Select Mode Operation Press the START/STOP button. The indoor unit’s OPERATION indicator lamp (red) will light. The air conditioner will start operating. Press the MASTER CONTROL button to select the de- sired mode.
  • Page 8 OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). About Mode Operation AUTO: COOLING MODEL G When the room temperature is 4 °F higher than the set temperature, the Cooling Operation mode will switch between Cooling and Drying.
  • Page 9: Timer Operation

    TIMER OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Before using the timer function, be sure that the remote control unit is set to the correct current time (See page 5). To Use the ON timer or OFF timer Press the START/STOP button TIMER (if the unit is already operating, proceed to step 2).
  • Page 10: Sleep Timer Operation

    TIMER OPERATION About the PROGRAM timer About the ON timer G The PROGRAM timer allows you to integrate OFF timer G The timer function is designed to bring your room to a and ON timer operations in a single sequence. The se- comfortable temperature by the set time;...
  • Page 11: Adjusting The Direction Of Air Circulation

    ADJUSTING THE DIRECTION OF AIR CIRCULATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Vertical (up-down) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION VERTICAL SET button. Horizontal (right-left) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION HORIZONTAL SET button.
  • Page 12: Swing Operation

    SWING OPERATION Begin air conditioner operation before performing this procedure. To select Vertical airflow SWING Operation Press the AIR FLOW DIRECTION VERTICAL SWING button. The SWING indicator lamp (VERTICAL SWING) (orange) will light. In this mode, the UP/DOWN air direction flap will swing automatically to direct the air flow both up and down.
  • Page 13: Manual Auto Operation

    MANUAL AUTO OPERATION Use the MANUAL AUTO operation in the event the remote control unit is lost or otherwise unavailable. How To Use the Main Unit Controls Press the MANUAL AUTO button on the main unit operating CAUTION! control panel. Do not press the MANUAL AUTO button with To stop operation, press the MANUAL AUTO button once again.
  • Page 14: Selecting The Remote Control Unit Signal Code

    SELECTING THE REMOTE CONTROL UNIT SIGNAL CODE When two or more air conditioners are installed in a room and the remote control unit is operating an air conditioner other than the one you wish to set, change the signal code of the remote control unit to operate only the air conditioner you wish to set (four selections possible).
  • Page 15: Troubleshooting

    TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the elec- WARNING! trical breaker, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source.
  • Page 16: Operating Tips

    TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Symptom Items to check See Page G Is the power supply plug disconnected from its outlet? CHECK ONCE Doesn’t operate at all: MORE G Has there been a power failure? —...
  • Page 17 OPERATING TIPS AUTO Restart In Event of Power Interruption G Should the power supply to the air conditioner be inter- G Use of other electrical appliances (electric shaver, etc.) or rupted by a power failure, the air conditioner will restart nearby use of a wireless radio transmitter may cause the automatically in the previously selected mode once the air conditioner to malfunction.
