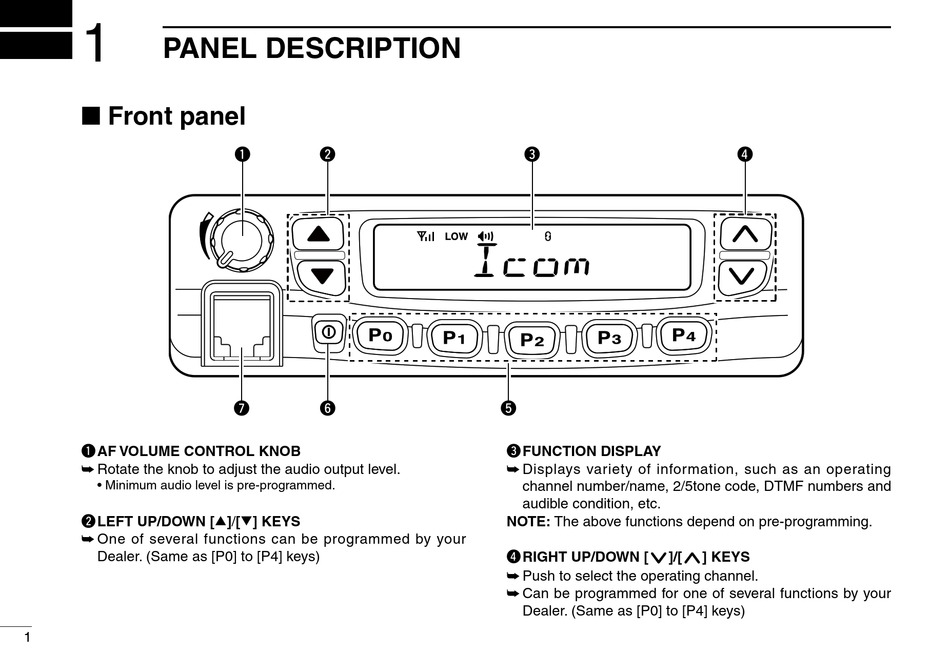

PANEL DESCRIPTION
■ Front panel
q AF VOLUME CONTROL KNOB
➥ Rotate the knob to adjust the audo output level.
• Mnmum audo level s pre-programmed.
w LEFT UP/DOWN [∫]/[√] KEYS
➥ One of several functons can be programmed by your
Dealer. (Same as [P0] to [P4] keys)
1
q
w
u
y
e
t
e FUNCTION DISPLAY
➥ Dsplays varety of nformaton, such as an operatng
channel number/name, 2/5tone code, DTMF numbers and
audble condton, etc.
NOTE: The above functons depend on pre-programmng.
r RIGHT UP/DOWN [
]/[
➥ Push to select the operatng channel.
➥ Can be programmed for one of several functons by your
Dealer. (Same as [P0] to [P4] keys)
r
] KEYS
