1

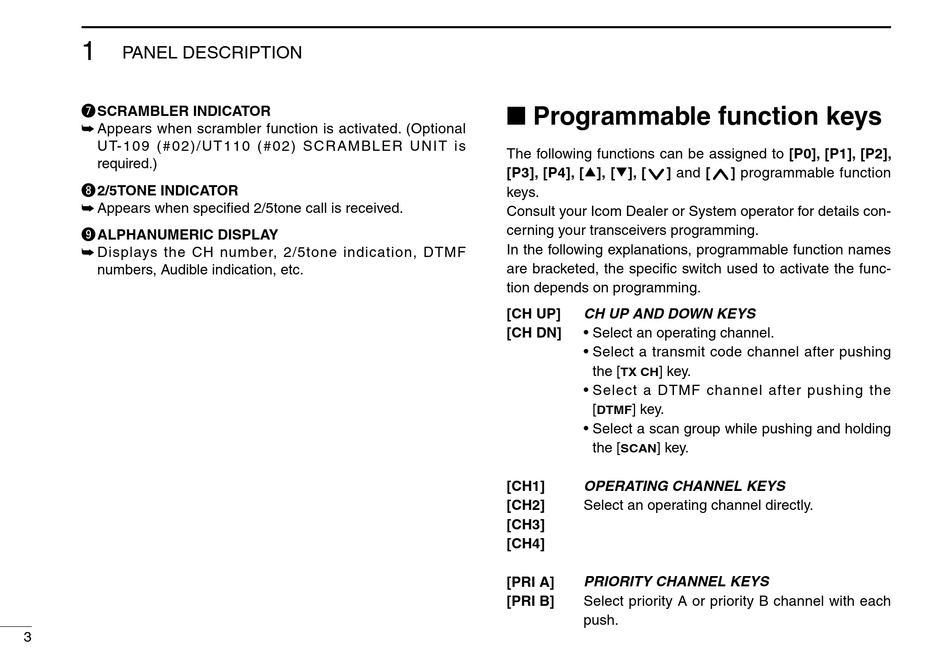

PANEL DESCRIPTION
u SCRAMBLER INDICATOR
➥ Appears when scrambler functon s actvated. (Optonal
UT-109 (#02)/UT110 (#02) SCRAMBLER UNIT s
requred.)
i 2/5TONE INDICATOR
➥ Appears when specfied 2/5tone call s receved.
o ALPHANUMERIC DISPLAY
➥ Dsplays the CH number, 2/5tone ndcaton, DTMF
numbers, Audble ndcaton, etc.
3

■ Programmable function keys

The followng functons can be assgned to [P0], [P1], [P2],
[P3], [P4], [∫], [√], [ ] and [
keys.
Consult your Icom Dealer or System operator for detals con-
cernng your transcevers programmng.
In the followng explanatons, programmable functon names
are bracketed, the specfic swtch used to actvate the func-
ton depends on programmng.
[CH UP] CH UP AND DOWN KEYS
[CH DN] • Select an operatng channel.
• Select a transmt code channel after pushng
the [ ] key.
TX CH
• Select a DTMF channel after pushng the
[ ] key.
DTMF
• Select a scan group whle pushng and holdng
the [ ] key.
SCAN
[CH1] OPERATING CHANNEL KEYS
[CH2] Select an operatng channel drectly.
[CH3]
[CH4]
[PRI A] PRIORITY CHANNEL KEYS
[PRI B] Select prorty A or prorty B channel wth each
push.
] programmable functon
