6
MEMORY OPERATION

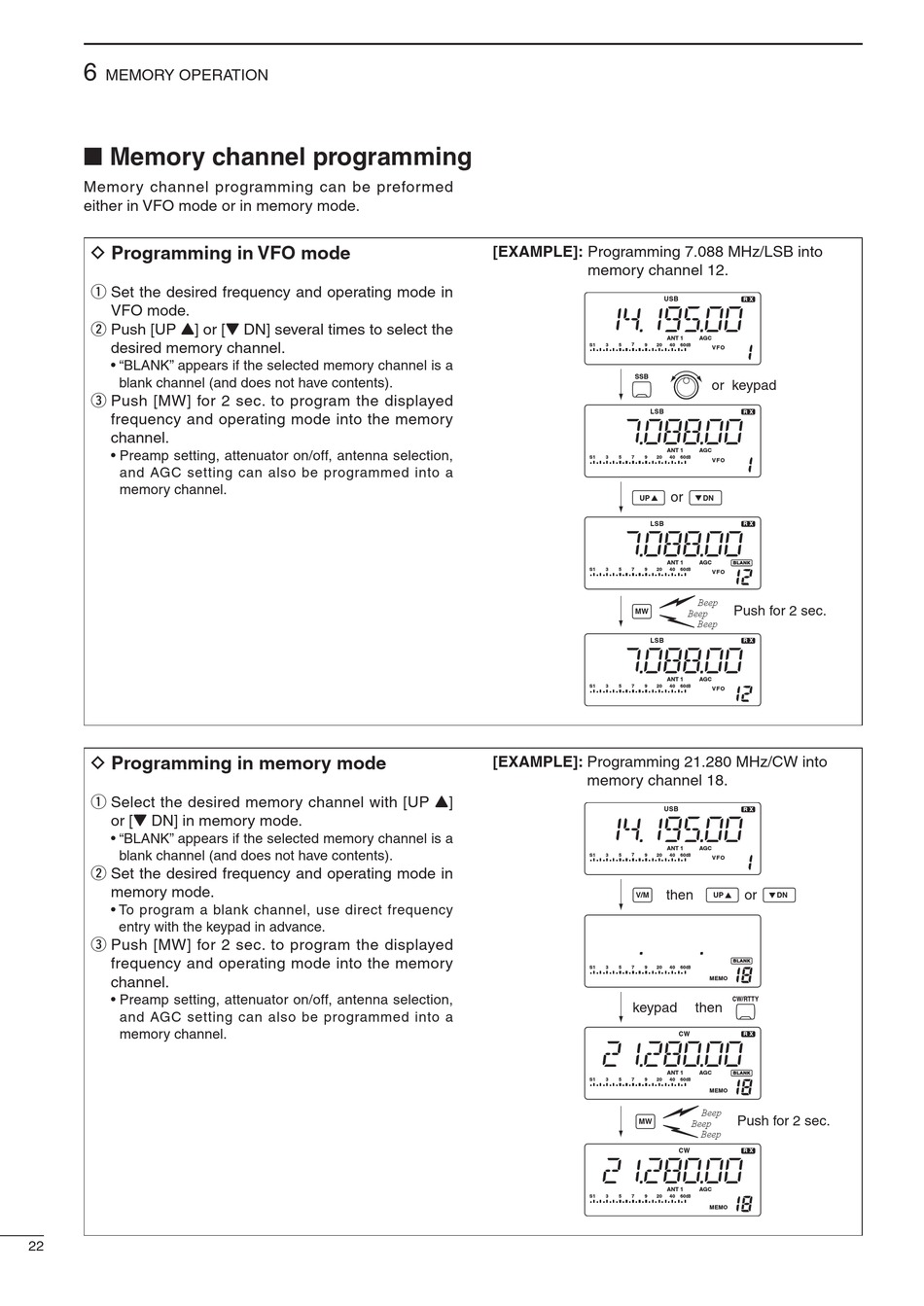

■ Memory channel programming

Memory channel programming can be preformed
either in VFO mode or in memory mode.
D Programming in VFO mode
q Set the desired frequency and operating mode in
VFO mode.
w Push [UP Y] or [Z DN] several times to select the
desired memory channel.
• "BLANK" appears if the selected memory channel is a
blank channel (and does not have contents).
e Push [MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
• Preamp setting, attenuator on/off, antenna selection,
and AGC setting can also be programmed into a
memory channel.
D Programming in memory mode
q Select the desired memory channel with [UP Y]
or [Z DN] in memory mode.
• "BLANK" appears if the selected memory channel is a
blank channel (and does not have contents).
w Set the desired frequency and operating mode in
memory mode.
• To program a blank channel, use direct frequency
entry with the keypad in advance.
e Push [MW] for 2 sec. to program the displayed
frequency and operating mode into the memory
channel.
• Preamp setting, attenuator on/off, antenna selection,
and AGC setting can also be programmed into a
memory channel.
22
[EXAMPLE]: Programming 7.088 MHz/LSB into
memory channel 12.
USB
ANT
S1 3 5 7 9 20
SSB
LSB
ANT 1
S1 3 5 7 9 20
UP
LSB
ANT 1
S1 3 5 7 9 20
MW
LSB
ANT 1
S1 3 5 7 9 20
[EXAMPLE]: Programming 21.280 MHz/CW into
memory channel 18.
USB
ANT
S1 3 5 7 9 20
then
V/M
S1 3 5 7 9 20
keypad
ANT 1
S1 3 5 7 9 20
MW
ANT 1
S1 3 5 7 9 20
R X
1 AGC
40 60dB
V F O
or keypad
R X
AGC
40 60dB
V F O
or
DN
R X
AGC BLANK BLANK
40 60dB
V F O
Beep
Push for 2 sec.
Beep
Beep
R X
AGC
40 60dB
V F O
R X
1 AGC
40 60dB
V F O
or
UP DN
BLANK BLANK
40 60dB
MEMO
CW/RTTY
then
CW
R X R X
AGC BLANK BLANK
40 60dB
MEMO
Beep
Push for 2 sec.
Beep
Beep
CW
R X R X
AGC
40 60dB
MEMO
