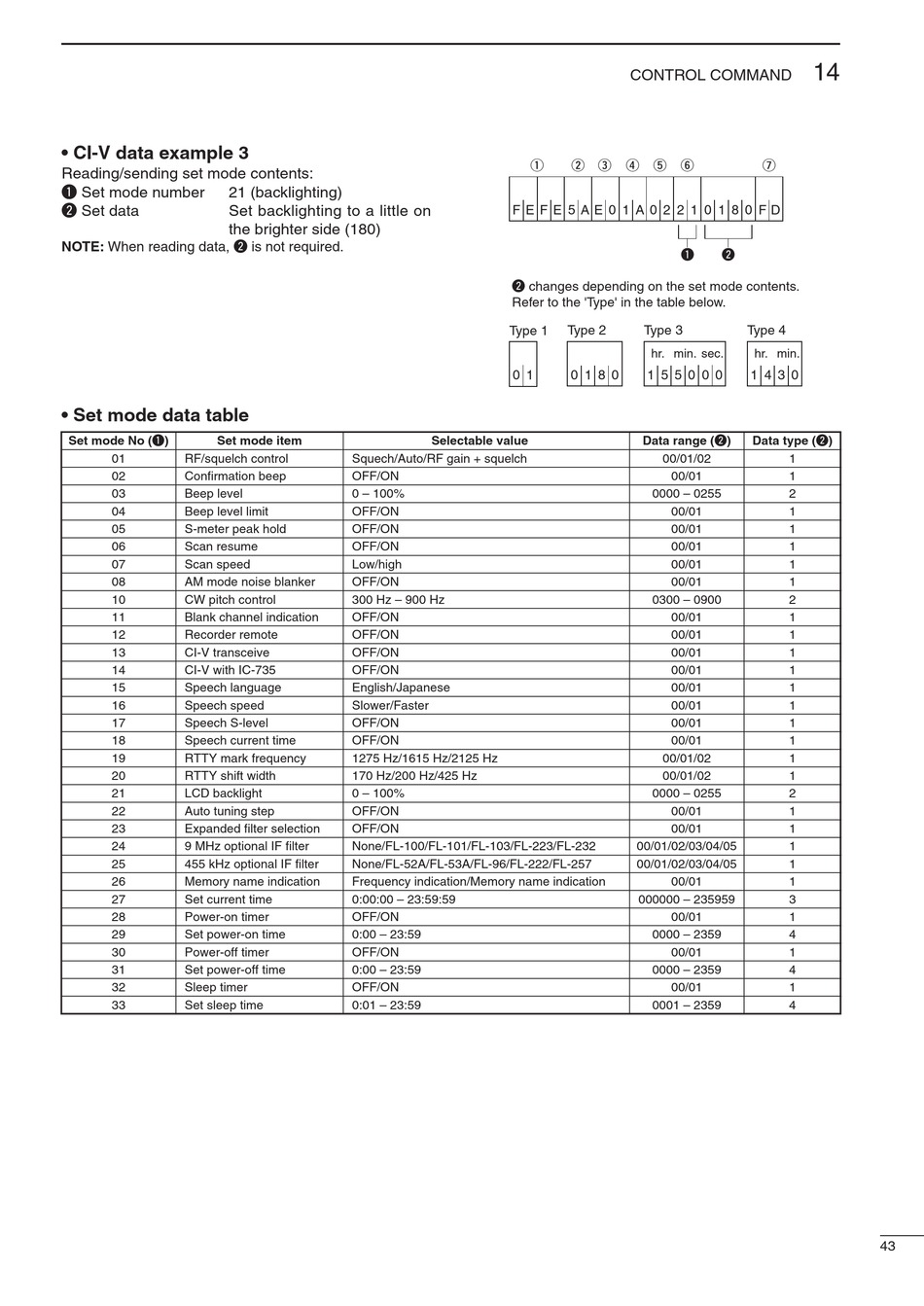

Control Command - Icom IC-R75 Instruction Manual

• CI-V data example 3
Reading/sending set mode contents:
q Set mode number 21 (backlighting)
w Set data Set backlighting to a little on
the brighter side (180)
NOTE: When reading data, w is not required.
• Set mode data table
Set mode No (q) Set mode item
01 RF/squelch control
02 Confirmation beep
03 Beep level
04 Beep level limit
05 S-meter peak hold
06 Scan resume
07 Scan speed
08 AM mode noise blanker
10 CW pitch control
11 Blank channel indication
12 Recorder remote
13 CI-V transceive
14 CI-V with IC-735
15 Speech language
16 Speech speed
17 Speech S-level
18 Speech current time
19 RTTY mark frequency
20 RTTY shift width
21 LCD backlight
22 Auto tuning step
23 Expanded filter selection
24 9 MHz optional IF filter
25 455 kHz optional IF filter
26 Memory name indication
27 Set current time
28 Power-on timer
29 Set power-on time
30 Power-off timer
31 Set power-off time
32 Sleep timer
33 Set sleep time
F E F E 5 A E 0 1 A 0 2 2 1 0 1
w changes depending on the set mode contents.
Refer to the 'Type' in the table below.
Type 1
0 1
Selectable value
Squech/Auto/RF gain + squelch
OFF/ON
0 – 100%
OFF/ON
OFF/ON
OFF/ON
Low/high
OFF/ON
300 Hz – 900 Hz
OFF/ON
OFF/ON
OFF/ON
OFF/ON
English/Japanese
Slower/Faster
OFF/ON
OFF/ON
1275 Hz/1615 Hz/2125 Hz
170 Hz/200 Hz/425 Hz
0 – 100%
OFF/ON
OFF/ON
None/FL-100/FL-101/FL-103/FL-223/FL-232
None/FL-52A/FL-53A/FL-96/FL-222/FL-257
Frequency indication/Memory name indication
0:00:00 – 23:59:59
OFF/ON
0:00 – 23:59
OFF/ON
0:00 – 23:59
OFF/ON
0:01 – 23:59

CONTROL COMMAND

q w e r t y
q
Type 2 Type 3
hr. min. sec.
1 5 5 0 0 0
0 1 8 0
Data range (w)
00/01/02
00/01
0000 – 0255
00/01
00/01
00/01
00/01
00/01
0300 – 0900
00/01
00/01
00/01
00/01
00/01
00/01
00/01
00/01
00/01/02
00/01/02
0000 – 0255
00/01
00/01
00/01/02/03/04/05
00/01/02/03/04/05
00/01
000000 – 235959
00/01
0000 – 2359
00/01
0000 – 2359
00/01
0001 – 2359
14
u
8 0 F D
w
Type 4
hr. min.
1 4 3 0
Data type (w)
1
1
2
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
3
1
4
1
4
1
4
43
