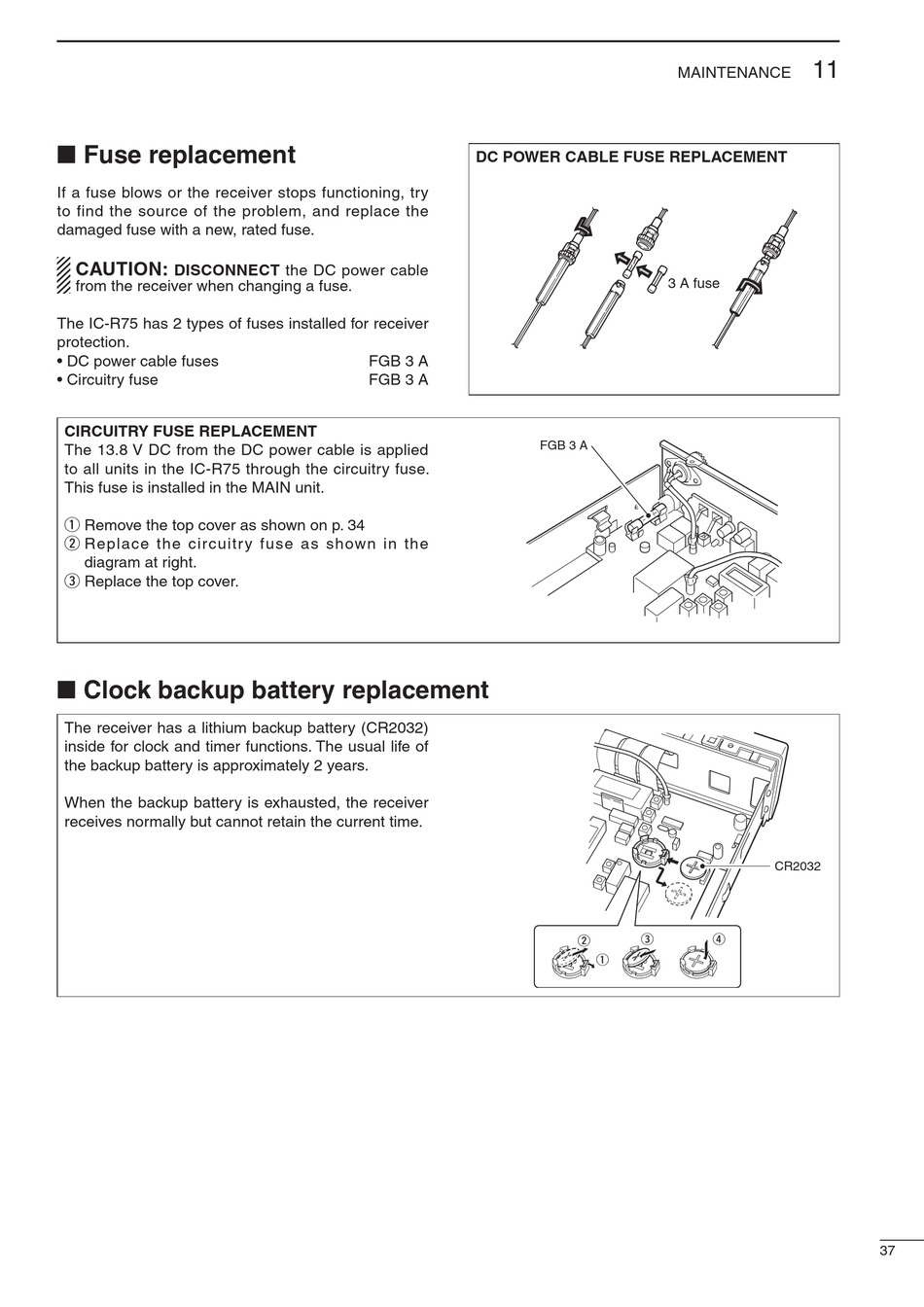

■ Fuse replacement

If a fuse blows or the receiver stops functioning, try
to find the source of the problem, and replace the
damaged fuse with a new, rated fuse.
CAUTION:
DISCONNECT the DC power cable
from the receiver when changing a fuse.
The IC-R75 has 2 types of fuses installed for receiver
protection.
• DC power cable fuses
• Circuitry fuse
CIRCUITRY FUSE REPLACEMENT
The 13.8 V DC from the DC power cable is applied
to all units in the IC-R75 through the circuitry fuse.
This fuse is installed in the MAIN unit.
q Remove the top cover as shown on p. 34
w Replace the circuitr y fuse as shown in the
diagram at right.
e Replace the top cover.

■ Clock backup battery replacement

The receiver has a lithium backup battery (CR2032)
inside for clock and timer functions. The usual life of
the backup battery is approximately 2 years.
When the backup battery is exhausted, the receiver
receives normally but cannot retain the current time.
DC POWER CABLE FUSE REPLACEMENT
FGB 3 A
FGB 3 A
FGB 3 A

MAINTENANCE

3 A fuse
e r
w
q
11
CR2032
37
