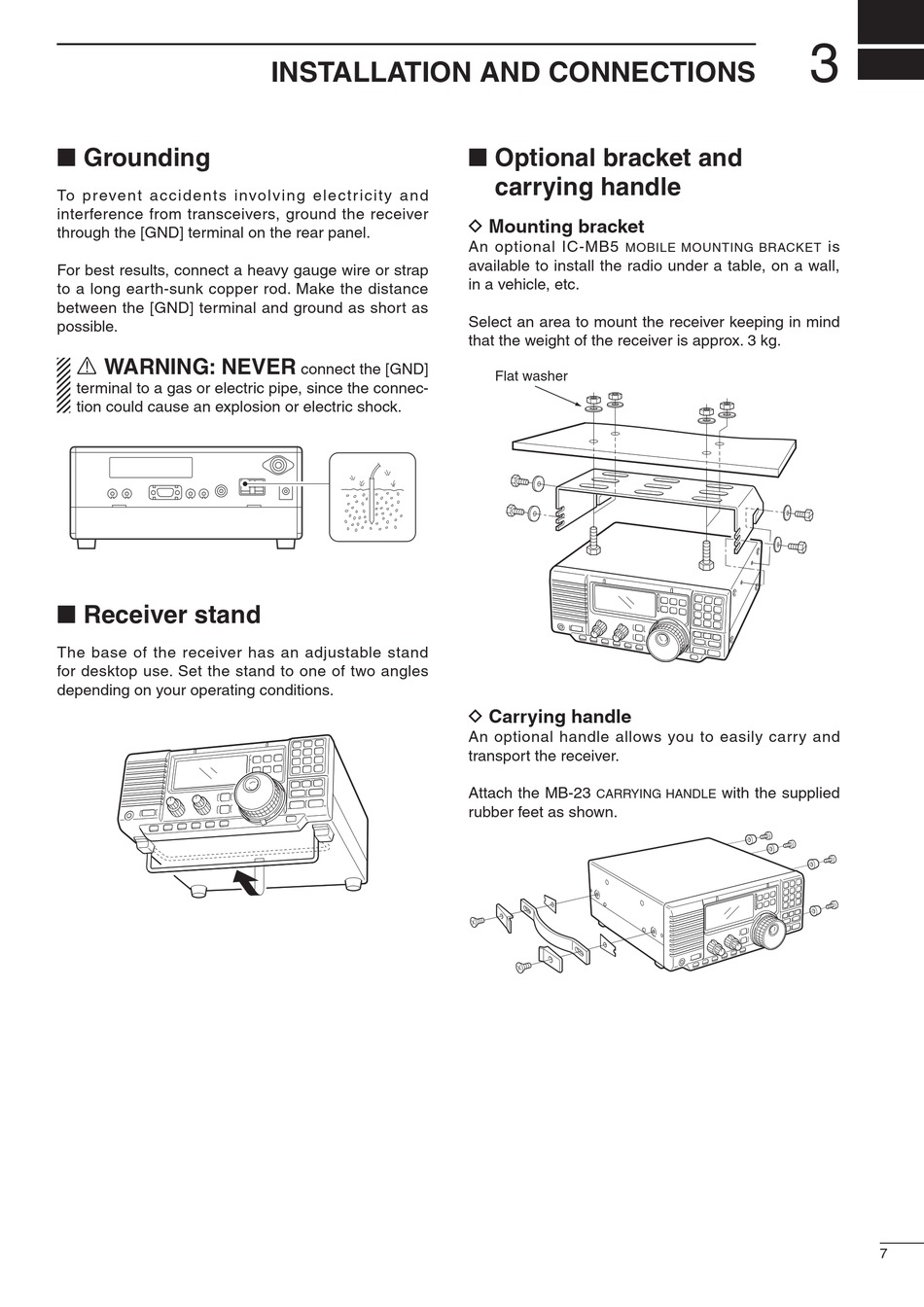

Installation And Connections; Grounding; Receiver Stand; Optional Bracket And Carrying Handle - Icom IC-R75 Instruction Manual

■ Grounding

To prevent accidents involving electr icity and
interference from transceivers, ground the receiver
through the [GND] terminal on the rear panel.
For best results, connect a heavy gauge wire or strap
to a long earth-sunk copper rod. Make the distance
between the [GND] terminal and ground as short as
possible.
R WARNING: NEVER
terminal to a gas or electric pipe, since the connec-
tion could cause an explosion or electric shock.

■ Receiver stand

The base of the receiver has an adjustable stand
for desktop use. Set the stand to one of two angles
depending on your operating conditions.

INSTALLATION AND CONNECTIONS

connect the [GND]
■ Optional bracket and
carrying handle
D Mounting bracket
An optional IC-MB5
MOBILE MOUNTING BRACKET
available to install the radio under a table, on a wall,
in a vehicle, etc.
Select an area to mount the receiver keeping in mind
that the weight of the receiver is approx. 3 kg.
Flat washer
D Carrying handle
An optional handle allows you to easily carry and
transport the receiver.
Attach the MB-23
CARRYING HANDLE
rubber feet as shown.
3
is
with the supplied
7
