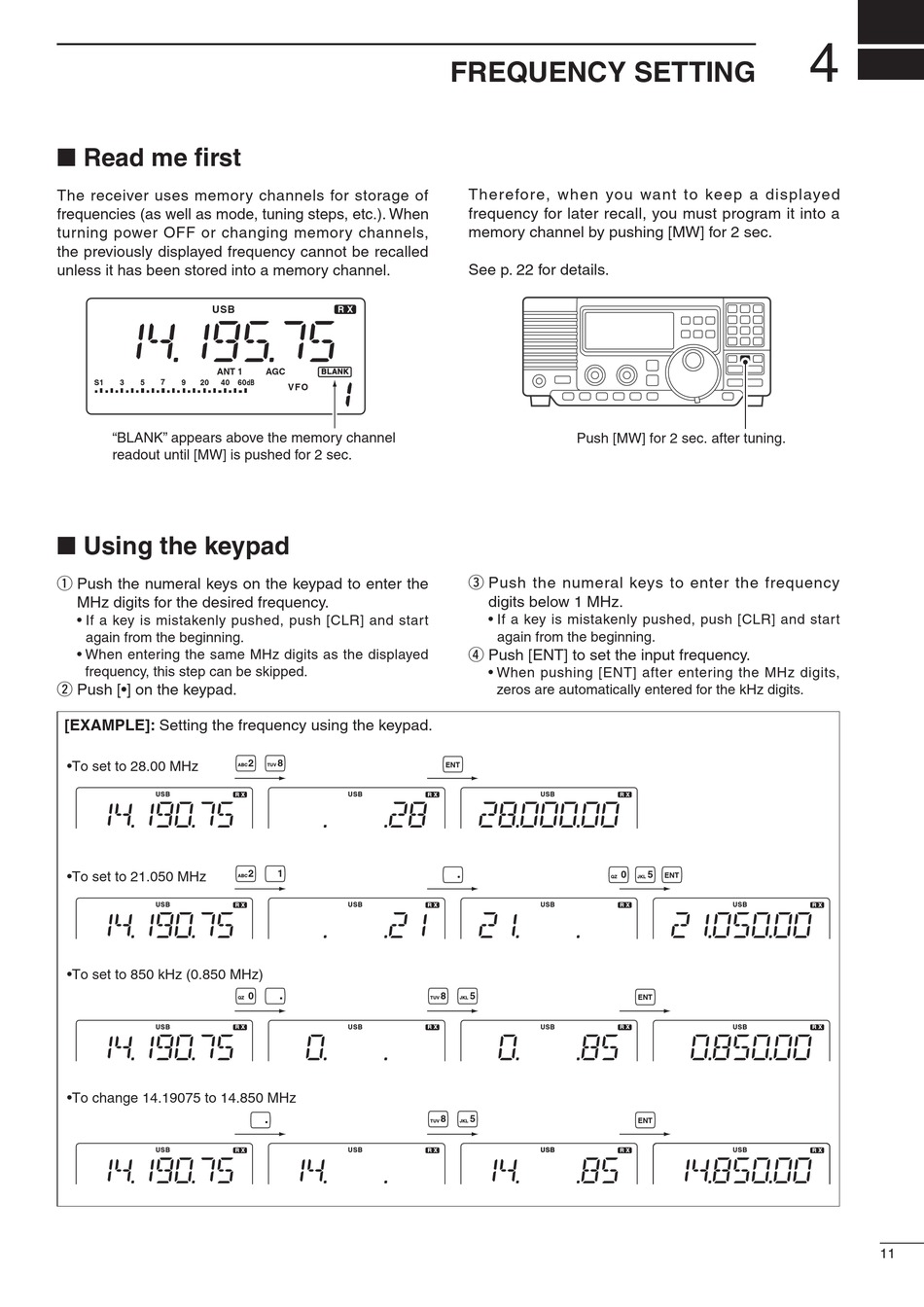

Frequency Setting; Read Me First; Using The Keypad - Icom IC-R75 Instruction Manual

■ Read me first

The receiver uses memory channels for storage of
frequencies (as well as mode, tuning steps, etc.). When
turning power OFF or changing memory channels,
the previously displayed frequency cannot be recalled
unless it has been stored into a memory channel.
USB
ANT
S1 3 5 7 9 20 40
"BLANK" appears above the memory channel
readout until [MW] is pushed for 2 sec.

■ Using the keypad

q Push the numeral keys on the keypad to enter the
MHz digits for the desired frequency.
• If a key is mistakenly pushed, push [CLR] and start
again from the beginning.
• When entering the same MHz digits as the displayed
frequency, this step can be skipped.
w Push [•] on the keypad.
[EXAMPLE]: Setting the frequency using the keypad.
•To set to 28.00 MHz
USB
•To set to 21.050 MHz
USB
•To set to 850 kHz (0.850 MHz)
USB
•To change 14.19075 to 14.850 MHz
USB
R X
1 AGC
BLANK BLANK
60dB
VFO
2 8
ABC TUV
USB
R X
2 1
ABC
R X USB
.
0
QZ
R X USB
.
R X USB

FREQUENCY SETTING

Therefore, when you want to keep a displayed
frequency for later recall, you must program it into a
memory channel by pushing [MW] for 2 sec.
See p. 22 for details.
Push [MW] for 2 sec. after tuning.
e Push the numeral keys to enter the frequency
digits below 1 MHz.
• If a key is mistakenly pushed, push [CLR] and start
again from the beginning.
r Push [ENT] to set the input frequency.
• When pushing [ENT] after entering the MHz digits,
zeros are automatically entered for the kHz digits.
ENT
USB
R X
.
R X USB
8 5
TUV JKL
R X USB
8 5
TUV JKL
R X USB USB
R X
0 5
ENT
QZ JKL
R X USB
ENT
R X USB
ENT
R X R X USB
4
R X
R X
R X
11
