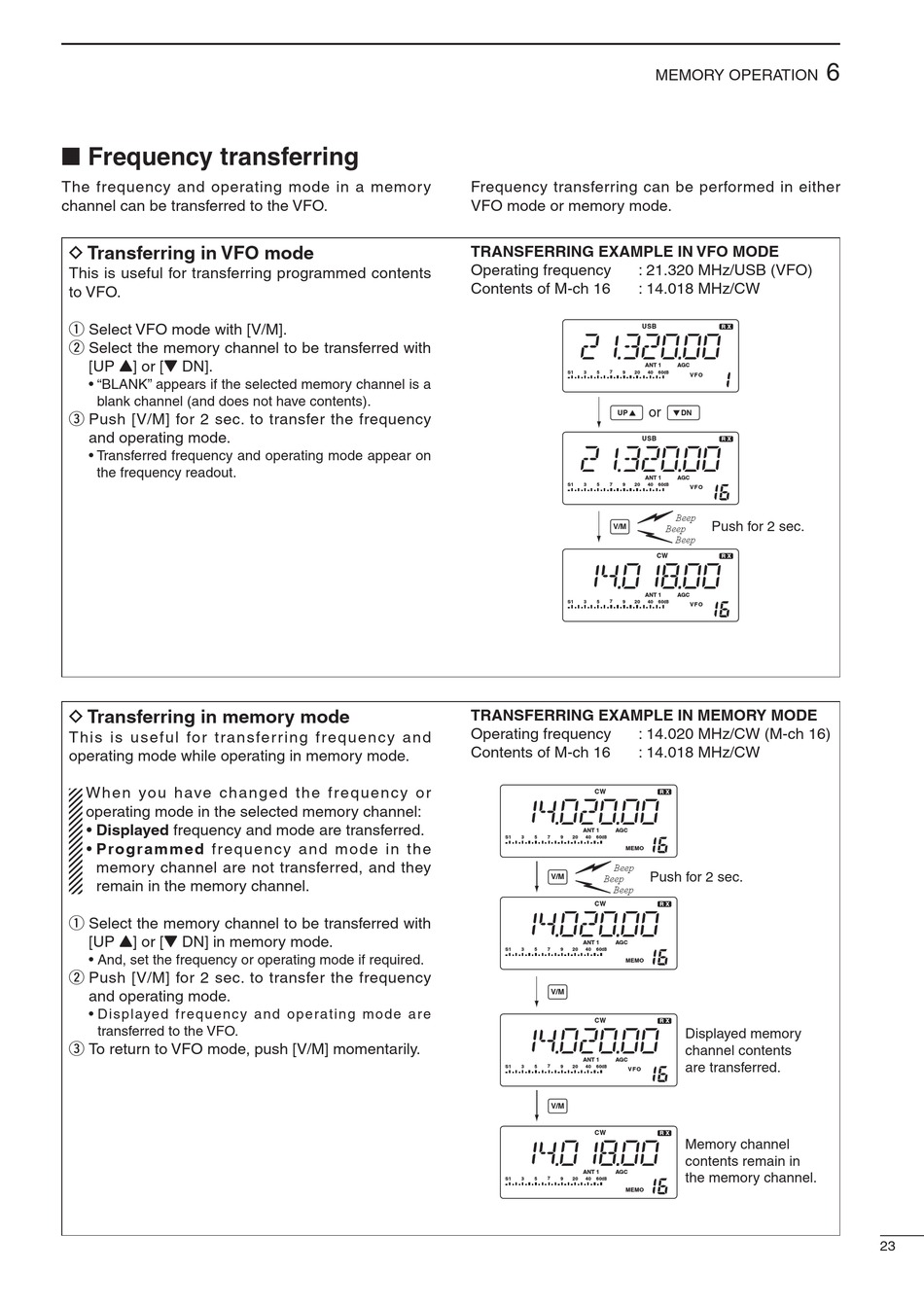

■ Frequency transferring

The frequency and operating mode in a memory
channel can be transferred to the VFO.
D Transferring in VFO mode
This is useful for transferring programmed contents
to VFO.
q Select VFO mode with [V/M].
w Select the memory channel to be transferred with
[UP Y] or [Z DN].
• "BLANK" appears if the selected memory channel is a
blank channel (and does not have contents).
e Push [V/M] for 2 sec. to transfer the frequency
and operating mode.
• Transferred frequency and operating mode appear on
the frequency readout.
D Transferring in memory mode
This is useful for transferr ing frequency and
operating mode while operating in memory mode.
When you have changed the frequency or
operating mode in the selected memory channel:
• Displayed frequency and mode are transferred.
• Programmed frequency and mode in the
memory channel are not transferred, and they
remain in the memory channel.
q Select the memory channel to be transferred with
[UP Y] or [Z DN] in memory mode.
• And, set the frequency or operating mode if required.
w Push [V/M] for 2 sec. to transfer the frequency
and operating mode.
• Displayed frequency and operating mode are
transferred to the VFO.
e To return to VFO mode, push [V/M] momentarily.
Frequency transferring can be performed in either
VFO mode or memory mode.
TRANSFERRING EXAMPLE IN VFO MODE
Operating frequency : 21.320 MHz/USB (VFO)
Contents of M-ch 16 : 14.018 MHz/CW
USB
ANT 1
S1 3 5 7 9 20
UP
USB
ANT
S1 3 5 7 9 20
V/M
ANT
S1 3 5 7 9 20
TRANSFERRING EXAMPLE IN MEMORY MODE
Operating frequency : 14.020 MHz/CW (M-ch 16)
Contents of M-ch 16 : 14.018 MHz/CW
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
MEMO
Beep
V/M Beep
Beep
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
MEMO
V/M
CW
ANT 1 AGC
7
S1 3 5 9 20 40 60dB
V F O
V/M
CW
ANT 1 AGC
S1 3 5 7 9 20 40 60dB
MEMO
MEMORY OPERATION
R X
AGC
40 60dB
VFO
or
DN
R X
1 AGC
40 60dB
VFO
Beep
Push for 2 sec.
Beep
Beep
CW
R X
1 AGC
40 60dB
VFO
R X
Push for 2 sec.
R X
R X
Displayed memory
channel contents
are transferred.
R X
Memory channel
contents remain in
the memory channel.
