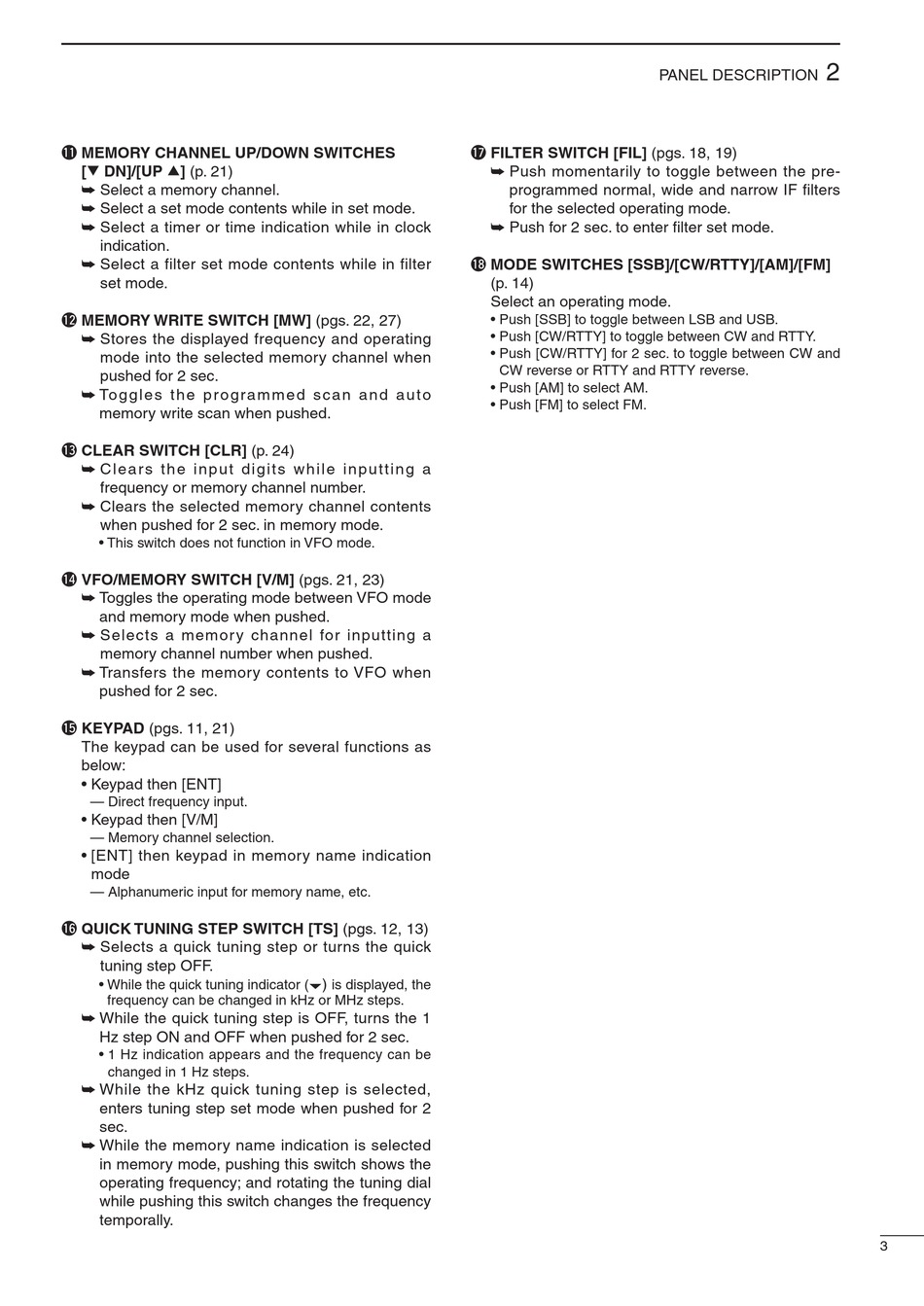

Icom IC-R75 Instruction Manual page 7

!1 MEMORY CHANNEL UP/DOWN SWITCHES
[√ DN]/[UP ∫] (p. 21)
➥ Select a memory channel.
➥ Select a set mode contents while in set mode.
➥ Select a timer or time indication while in clock
indication.
➥ Select a filter set mode contents while in filter
set mode.
!2 MEMORY WRITE SWITCH [MW] (pgs. 22, 27)
➥ Stores the displayed frequency and operating
mode into the selected memory channel when
pushed for 2 sec.
➥ To g g l e s t h e p r o gra m m e d s c a n a n d a u t o
memory write scan when pushed.
!3 CLEAR SWITCH [CLR] (p. 24)
➥ Cl e a rs th e i n p u t digit s w hile in putt ing a
frequency or memory channel number.
➥ Clears the selected memory channel contents
when pushed for 2 sec. in memory mode.
• This switch does not function in VFO mode.
!4 VFO/MEMORY SWITCH [V/M] (pgs. 21, 23)
➥ Toggles the operating mode between VFO mode
and memory mode when pushed.
➥ Selects a memor y channel for inputting a
memory channel number when pushed.
➥ Transfers the memory contents to VFO when
pushed for 2 sec.
!5 KEYPAD (pgs. 11, 21)
The keypad can be used for several functions as
below:
• Keypad then [ENT]
— Direct frequency input.
• Keypad then [V/M]
— Memory channel selection.
• [ENT] then keypad in memory name indication
mode
— Alphanumeric input for memory name, etc.
!6 QUICK TUNING STEP SWITCH [TS] (pgs. 12, 13)
➥ Selects a quick tuning step or turns the quick
tuning step OFF.
• While the quick tuning indicator (
frequency can be changed in kHz or MHz steps.
➥ While the quick tuning step is OFF, turns the 1
Hz step ON and OFF when pushed for 2 sec.
• 1 Hz indication appears and the frequency can be
changed in 1 Hz steps.
➥ While the kHz quick tuning step is selected,
enters tuning step set mode when pushed for 2
sec.
➥ While the memory name indication is selected
in memory mode, pushing this switch shows the
operating frequency; and rotating the tuning dial
while pushing this switch changes the frequency
temporally.
!7 FILTER SWITCH [FIL] (pgs. 18, 19)
!8 MODE SWITCHES [SSB]/[CW/RTTY]/[AM]/[FM]
)
is displayed, the
√
PANEL DESCRIPTION
➥ Push momentarily to toggle between the pre-
programmed normal, wide and narrow IF filters
for the selected operating mode.
➥ Push for 2 sec. to enter filter set mode.
(p. 14)
Select an operating mode.
• Push [SSB] to toggle between LSB and USB.
• Push [CW/RTTY] to toggle between CW and RTTY.
• Push [CW/RTTY] for 2 sec. to toggle between CW and
CW reverse or RTTY and RTTY reverse.
• Push [AM] to select AM.
• Push [FM] to select FM.
