14

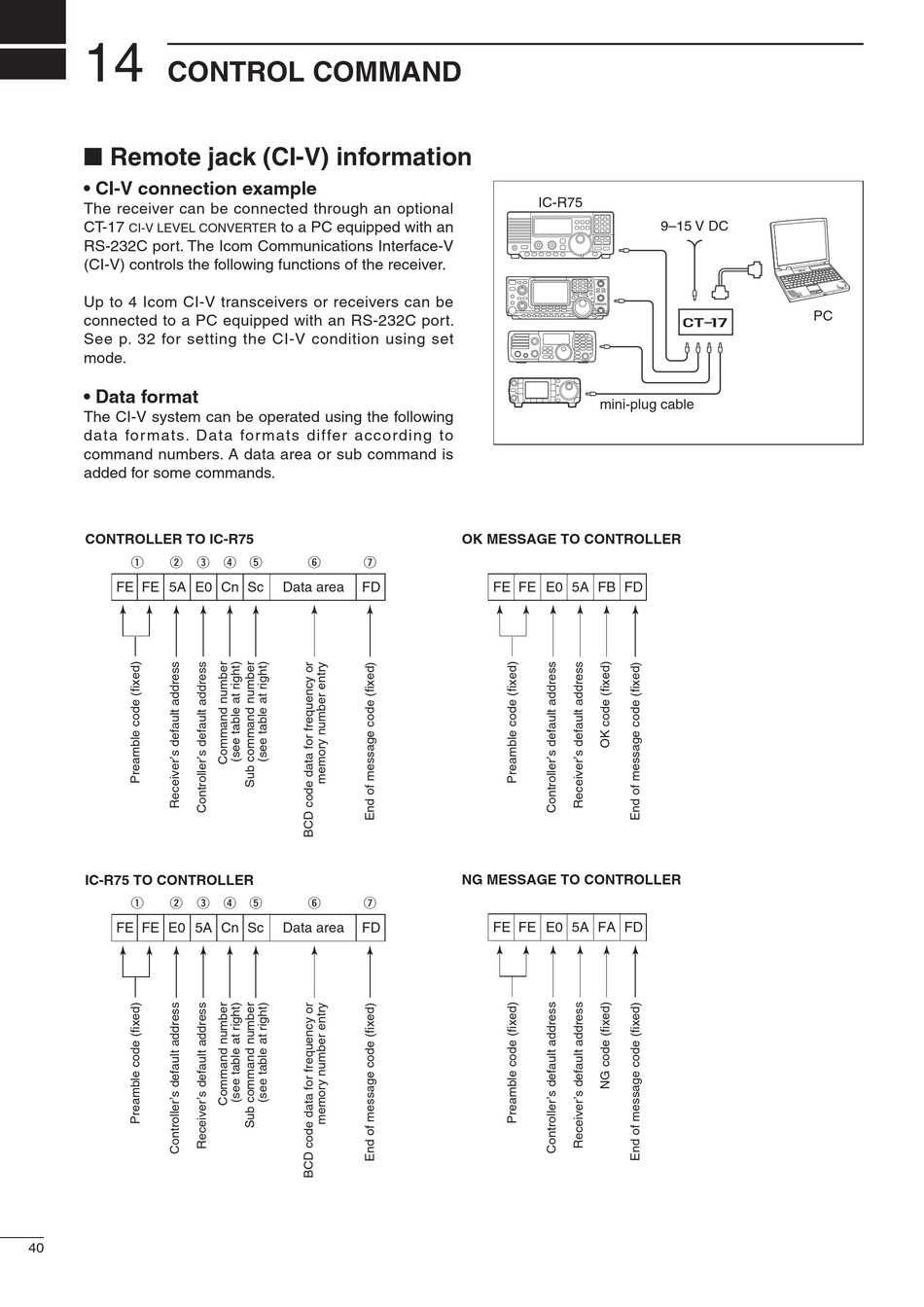

CONTROL COMMAND

■ Remote jack (CI-V) information

• CI-V connection example
The receiver can be connected through an optional
CT-17
CI-V LEVEL CONVERTER
RS-232C port. The Icom Communications Interface-V
(CI-V) controls the following functions of the receiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a PC equipped with an RS-232C port.
See p. 32 for setting the CI-V condition using set
mode.
• Data format
The CI-V system can be operated using the following
data for mats. Data for mats differ according to
command numbers. A data area or sub command is
added for some commands.
CONTROLLER TO IC-R75
q w e
FE FE 5A E0 Cn Sc
IC-R75 TO CONTROLLER
q w e
FE FE E0 5A Cn Sc
40
to a PC equipped with an
r t y u
Data area FD
r t y u
Data area FD
IC-R75
mini-plug cable
OK MESSAGE TO CONTROLLER
FE FE E0 5A FB FD
NG MESSAGE TO CONTROLLER
FE FE E0 5A FA FD
9–15 V DC
PC
ct-17
