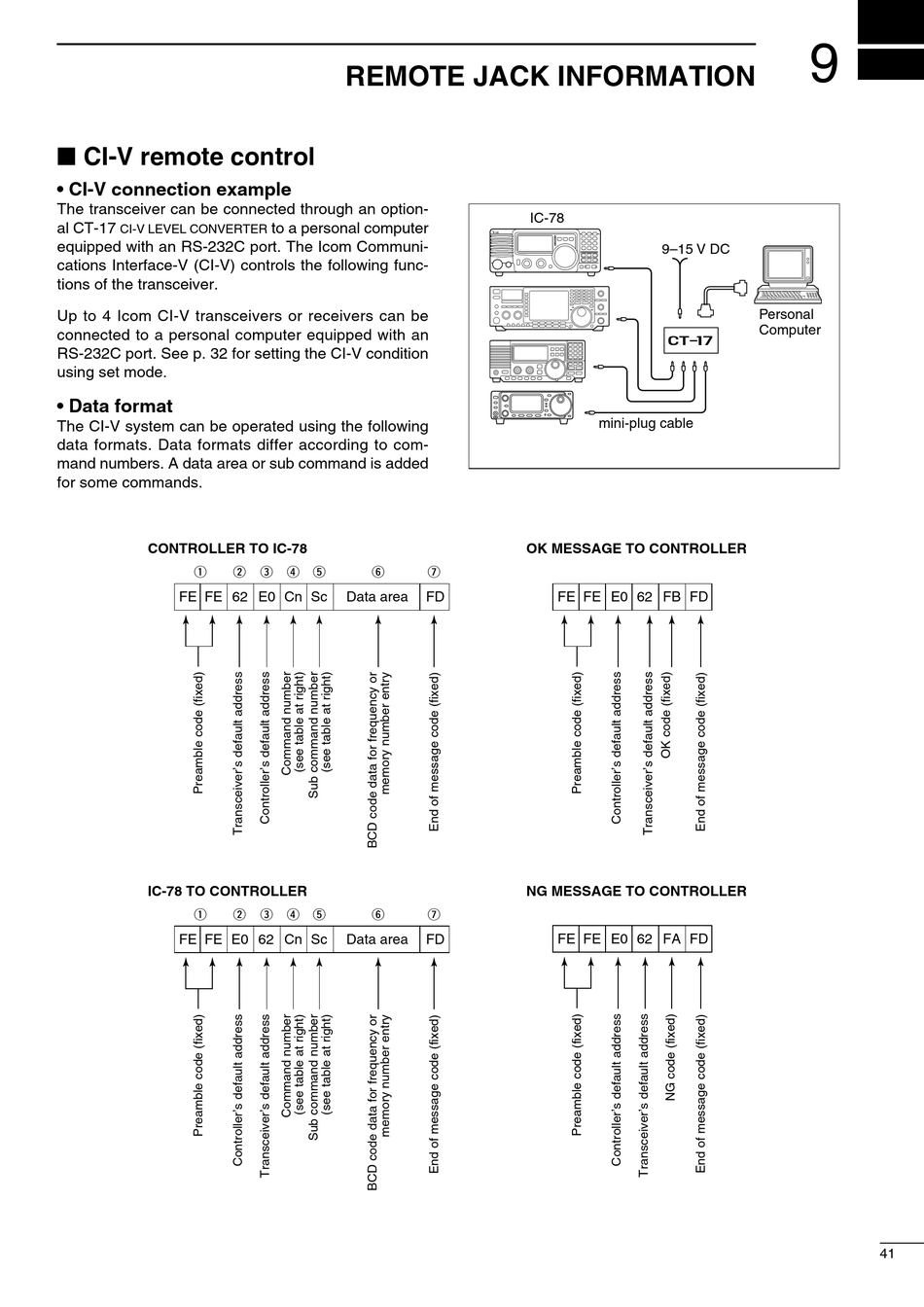

n CI-V remote control
• CI-V connection example
The transceiver can be connected through an option-
al CT-17
CI-V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cations Interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 32 for setting the CI-V condition
using set mode.
• Data format
The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area or sub command is added
for some commands.
CONTROLLER TO IC-78
q
FE FE 62 E0 Cn Sc
IC-78 TO CONTROLLER
q
FE FE E0 62 Cn Sc

REMOTE JACK INFORMATION

to a personal computer
w e r t y
Data area
w e r t y
Data area
IC-78
mini-plug cable
OK MESSAGE TO CONTROLLER
u
FD FE FE E0 62 FB FD
NG MESSAGE TO CONTROLLER
u
FE FE E0 62 FA FD
FD
9
9–15 V DC
Personal
Computer
ct-17
