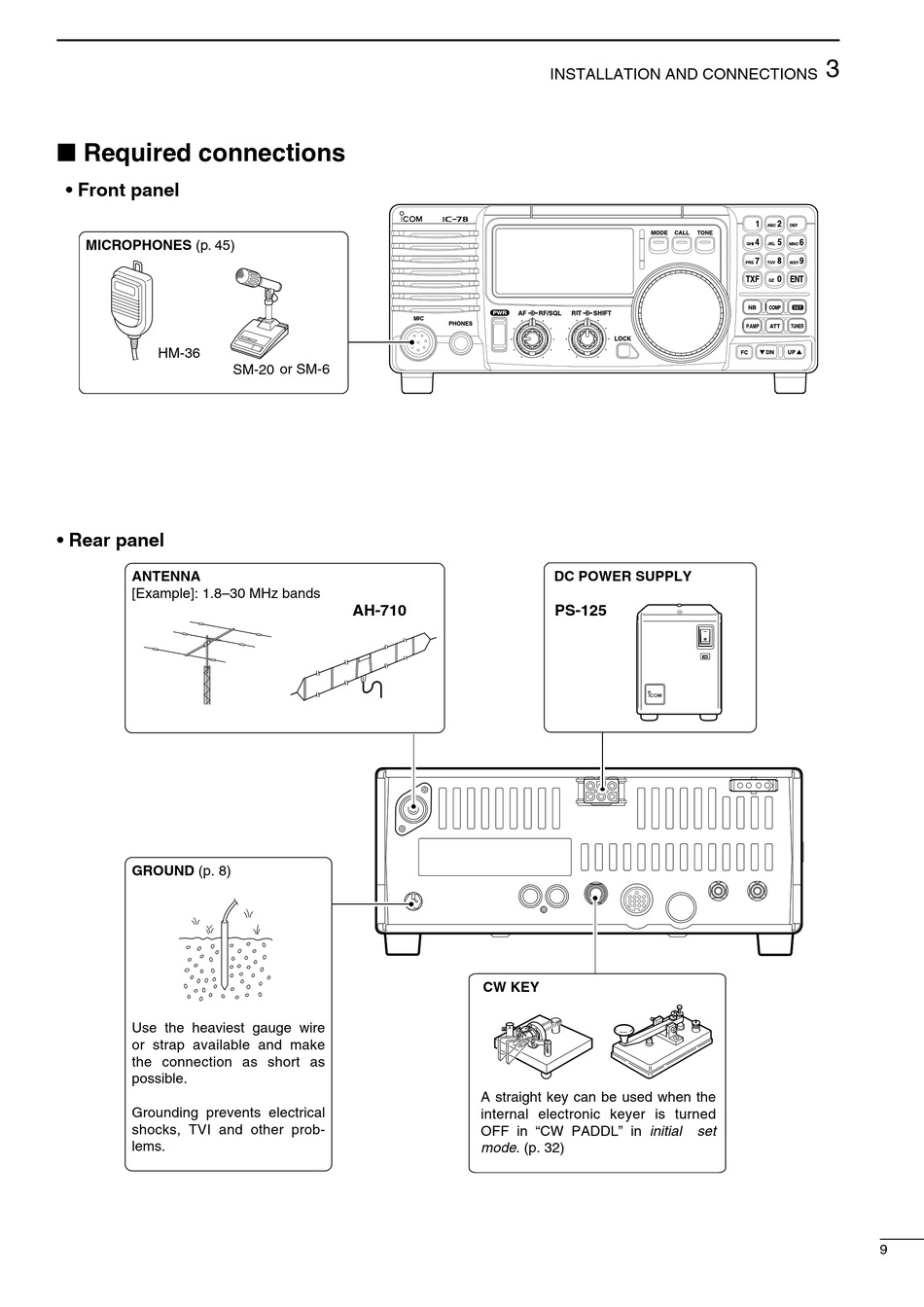

n Required connections
• Front panel
MICROPHONES (p. 45)
HM-36
• Rear panel
ANTENNA
[Example]: 1.8–30 MHz bands
GROUND (p. 8)
Use the heaviest gauge wire
or strap available and make
the connection as short as
possible.
Grounding prevents electrical
shocks, TVI and other prob-
lems.
SM-20 or SM-6
AH-710
INSTALLATION AND CONNECTIONS
PWR
DC POWER SUPPLY
PS-125
CW KEY
A straight key can be used when the
internal electronic keyer is turned
OFF in "CW PADDL" in initial
mode. (p. 32)
3
set
9
