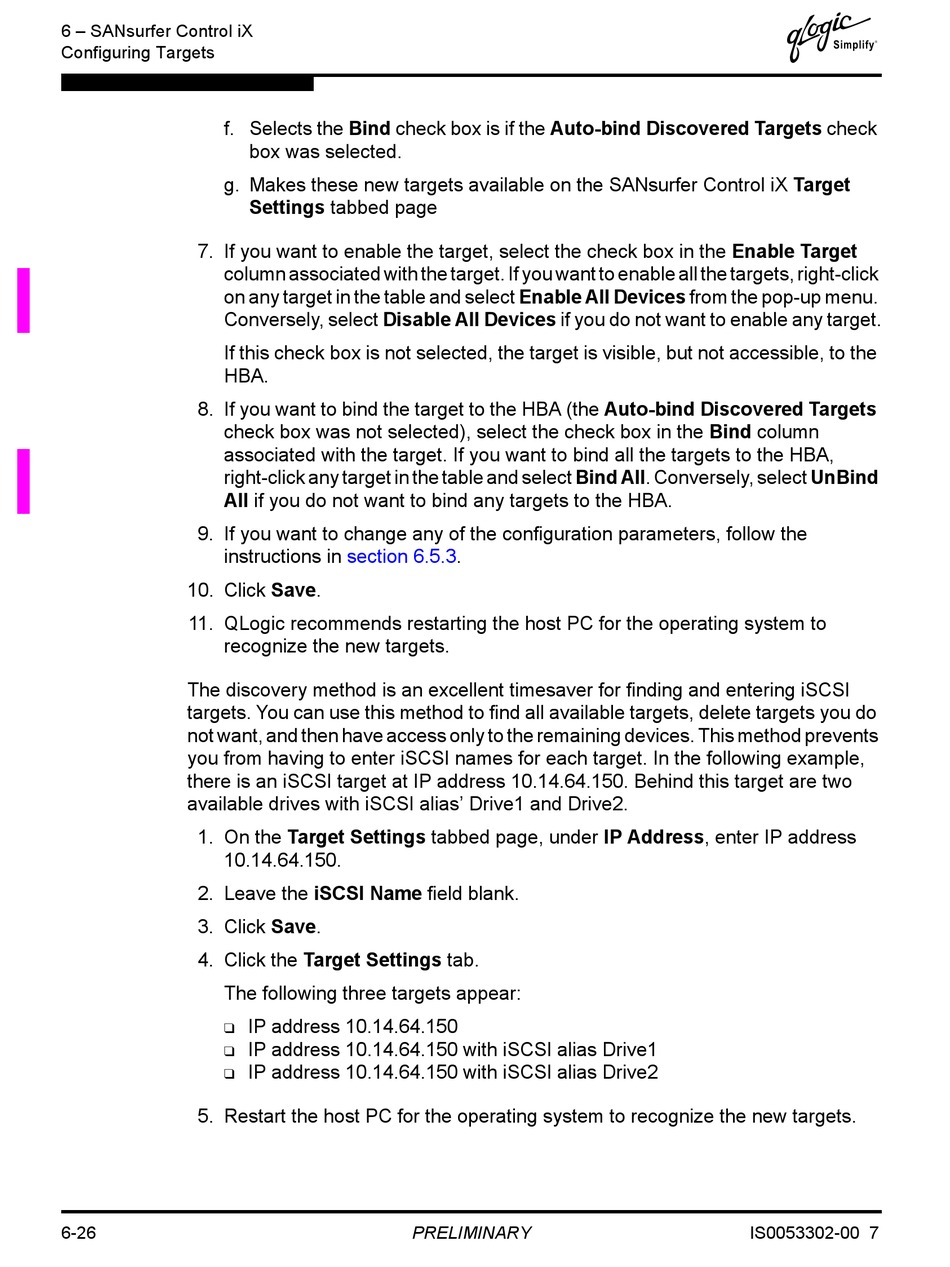

Qlogic QLA4010 User Manual page 68

6 – SANsurfer Control iX
Configuring Targets
f. Selects the Bind check box is if the Auto-bind Discovered Targets check
g. Makes these new targets available on the SANsurfer Control iX Target
7. If you want to enable the target, select the check box in the Enable Target
column associated with the target. If you want to enable all the targets, right-click
on any target in the table and select Enable All Devices from the pop-up menu.
Conversely, select Disable All Devices if you do not want to enable any target.
If this check box is not selected, the target is visible, but not accessible, to the
HBA.
8. If you want to bind the target to the HBA (the Auto-bind Discovered Targets
check box was not selected), select the check box in the Bind column
associated with the target. If you want to bind all the targets to the HBA,
right-click any target in the table and select Bind All. Conversely, select UnBind
All if you do not want to bind any targets to the HBA.
9. If you want to change any of the configuration parameters, follow the
instructions in
10. Click Save.
11. QLogic recommends restarting the host PC for the operating system to
recognize the new targets.
The discovery method is an excellent timesaver for finding and entering iSCSI
targets. You can use this method to find all available targets, delete targets you do
not want, and then have access only to the remaining devices. This method prevents
you from having to enter iSCSI names for each target. In the following example,
there is an iSCSI target at IP address 10.14.64.150. Behind this target are two
available drives with iSCSI alias' Drive1 and Drive2.
1. On the Target Settings tabbed page, under IP Address, enter IP address
10.14.64.150.
2. Leave the iSCSI Name field blank.
3. Click Save.
4. Click the Target Settings tab.
The following three targets appear:
❑
❑
❑
5. Restart the host PC for the operating system to recognize the new targets.
6-26
box was selected.
Settings tabbed page
section 6.5.3.
IP address 10.14.64.150
IP address 10.14.64.150 with iSCSI alias Drive1
IP address 10.14.64.150 with iSCSI alias Drive2
PRELIMINARY
Q
IS0053302-00 7
