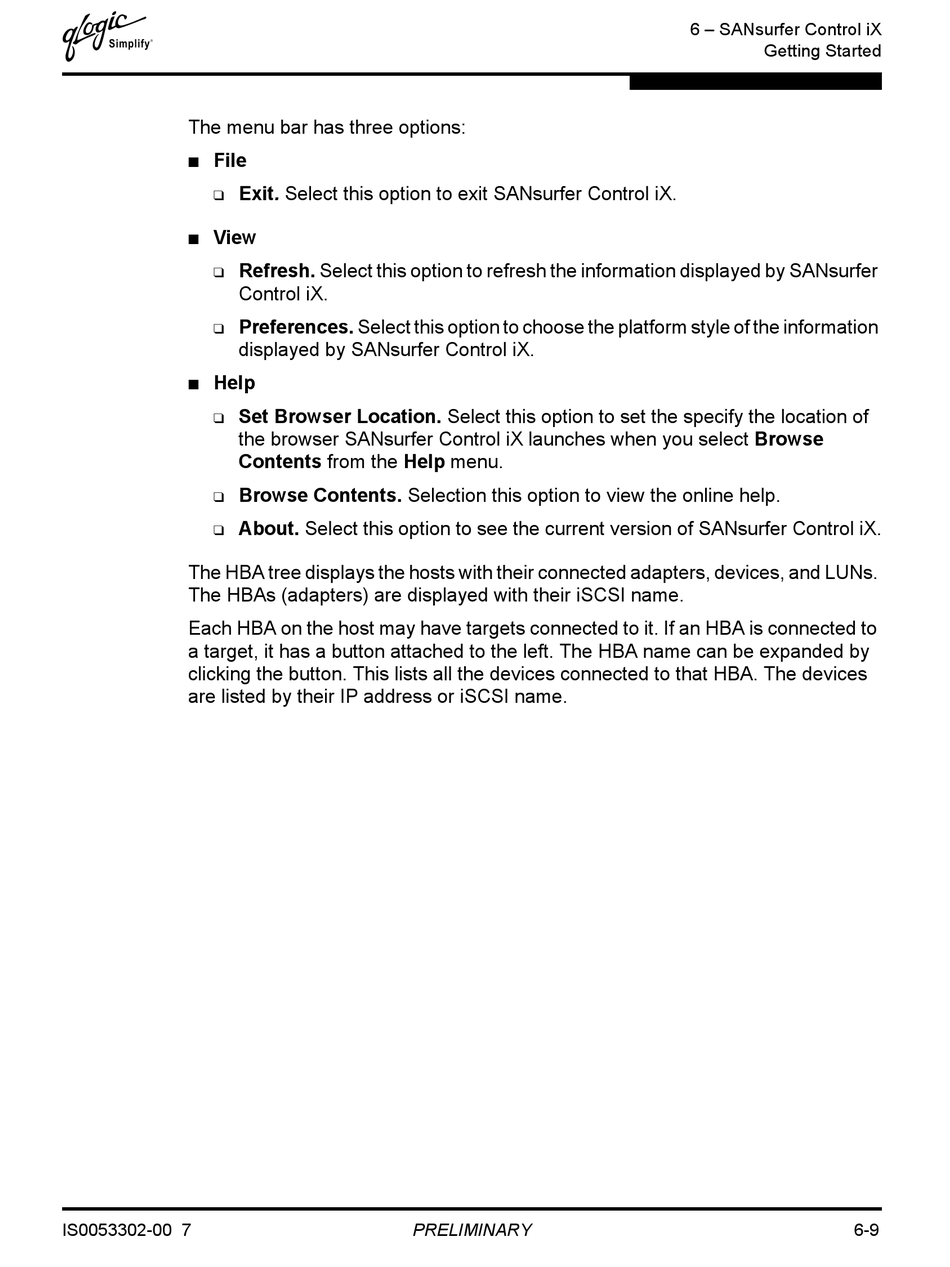

Qlogic QLA4010 User Manual page 51

Q
The menu bar has three options:
File
■
Exit. Select this option to exit SANsurfer Control iX.
❑
View
■
Refresh. Select this option to refresh the information displayed by SANsurfer
❑
Control iX.
Preferences. Select this option to choose the platform style of the information
❑
displayed by SANsurfer Control iX.
Help
■
Set Browser Location. Select this option to set the specify the location of
❑
the browser SANsurfer Control iX launches when you select Browse
Contents from the Help menu.
Browse Contents. Selection this option to view the online help.
❑
About. Select this option to see the current version of SANsurfer Control iX.
❑
The HBA tree displays the hosts with their connected adapters, devices, and LUNs.
The HBAs (adapters) are displayed with their iSCSI name.
Each HBA on the host may have targets connected to it. If an HBA is connected to
a target, it has a button attached to the left. The HBA name can be expanded by
clicking the button. This lists all the devices connected to that HBA. The devices
are listed by their IP address or iSCSI name.
