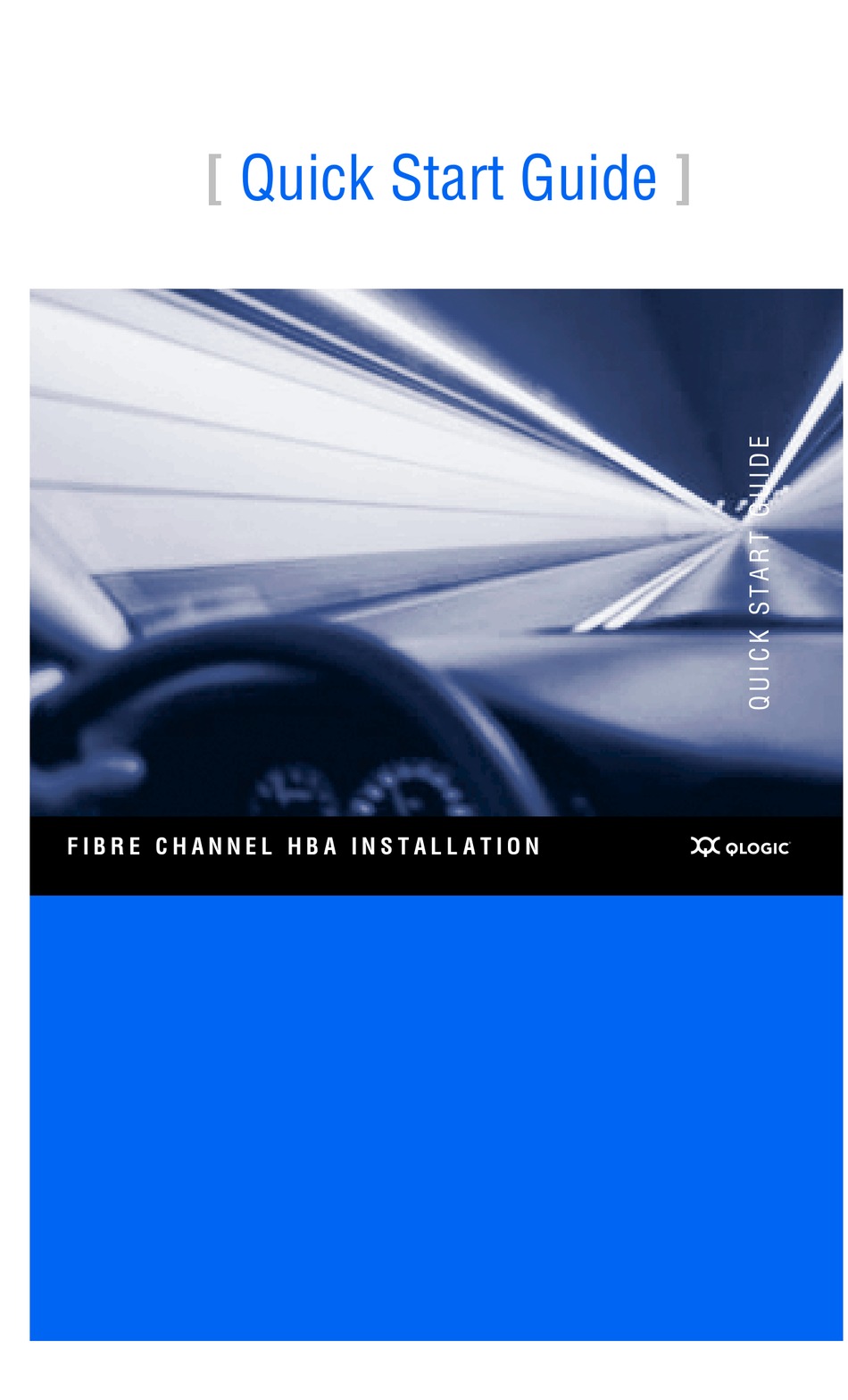

- Page 1 Quick Start Guide F I B R E C H A N N E L H B A I N S T A L L A T I O N...
- Page 2 Purchasers of OEM products should consult with the OEM for support. Please feel free to contact your QLogic approved reseller or QLogic Technical Support at any phase of integration for assistance. QLogic Technical Support can be reached by the following methods: http://support.qlogic.com...
-
Page 3: Installation Instructions
Quick Start Guide Installation Instructions This Quick Start Guide describes how to install and configure your new QLogic host bus adapter (HBA) in four simple steps: ❑ Step 1. Verify the package contents. ❑ Step 2. Install the HBA hardware. - Page 4 For Solaris/Netware/Mac OS, select the driver and complete the installation as described in the readme file. NOTE: For detailed driver installation options, please refer to the specific driver readme file located on the CD or on the QLogic website http://support.qlogic.com/support/drivers_software.aspx.
- Page 5 QLogic website at http://support.qlogic.com/support/drivers_software.aspx and download the latest versions. ❑ The following section contains additional information about the QLogic HBA, including the LED scheme, troubleshooting, warranty, technical support and certification information. HBA LEDs QLA2310/QLA200 HBA LED Scheme QLA234x/QLA210/QLE220 HBA LED Scheme...
- Page 6 QEM2462 Power and Attention Switch LED Scheme Green Power Activity Power off ❍ Insertion or removal of the adapter is permitted. Power ● Insertion or removal of the adapter is NOT permitted. Hot-plug operation is in progress and insertion or removal of Blinking the adapter is NOT permitted.
-
Page 7: Warranty
Älä katso suoraan laitteeseen käyttämällä optisia instrumentteja Agency Certification QLogic HBAs The following sections contain a summary of EMC/EMI test specifications performed on the QLogic HBAs to comply with radiated emission, radiated immunity, and product safety standards. EMI and EMC Requirements FCC Part 15 compliance: Class A (QLE236x, QLA24xx, QLA2xx, QLE2464, QLE2xx, QEM2462, QLE25xx), Class B (QLA23xx, QLE24xx) FCC compliance information statement: This device complies with Part 15 of the FCC Rules. - Page 8 Class B (QLE24xx, QLA2xx) ❑ For QLA2310F, QLA2340, QLA2342, QLE236x, QLA24xx, QLE2xx, QLE2464, QEM2462, and QLE25xx HBAs: Korea MIC Class A Certified Product Name/Model Fibre Channel HBA Certification holder QLogic Corporation Manufactured date Refer to date code listed on product...
-
Page 9: Product Safety Compliance
Product Safety Compliance UL, cUL product safety compliance: QLA23xx, QLE236x, QLA24xx, QLE24xx, QLA2xx, QLE2xx, QLE2464, QEM2462, QLE25xx UL60950 CSA C22.2 No.60950 Class 1 Laser Product per DHHS 21CFR (J) 73/23/ECC low voltage directive: QLA23xx, QLE236x, QLA24xx, QLE24xx, QLA2xx, QLE2xx, QEM2462, QLE2464, QLE25xx TUV: -EN60950-1:2001 -EN60825-1:1994+A1+A2... - Page 11 © 2005–2008 QLogic Corporation. QLogic, the QLogic logo, and SANsurfer are registered trademarks or trademarks of QLogic Corporation. All other brands and product names are trademarks or registered trademarks of their respective owners. Information supplied by QLogic is believed to be accurate and reliable. QLogic Corporation assumes no responsibility for any errors in this brochure.
- Page 12 *FC0054505-00 QLogic Corporation 26650 Aliso Viejo Parkway Aliso Viejo, CA 92656 949.389.6000 www.qlogic.com FC0054505-00 D...
