6 – Performing Diagnostics
Viewing Logs
The IPv6 Neighbor Cache log opens
NOTE:
For the HBA port that you selected, the neighbor cache log shows the
following information:
Last Update Time The date-time stamp of the last neighbor cache entry.
Neighbor IP
Neighbor MAC
Address
State
Flags
6-12

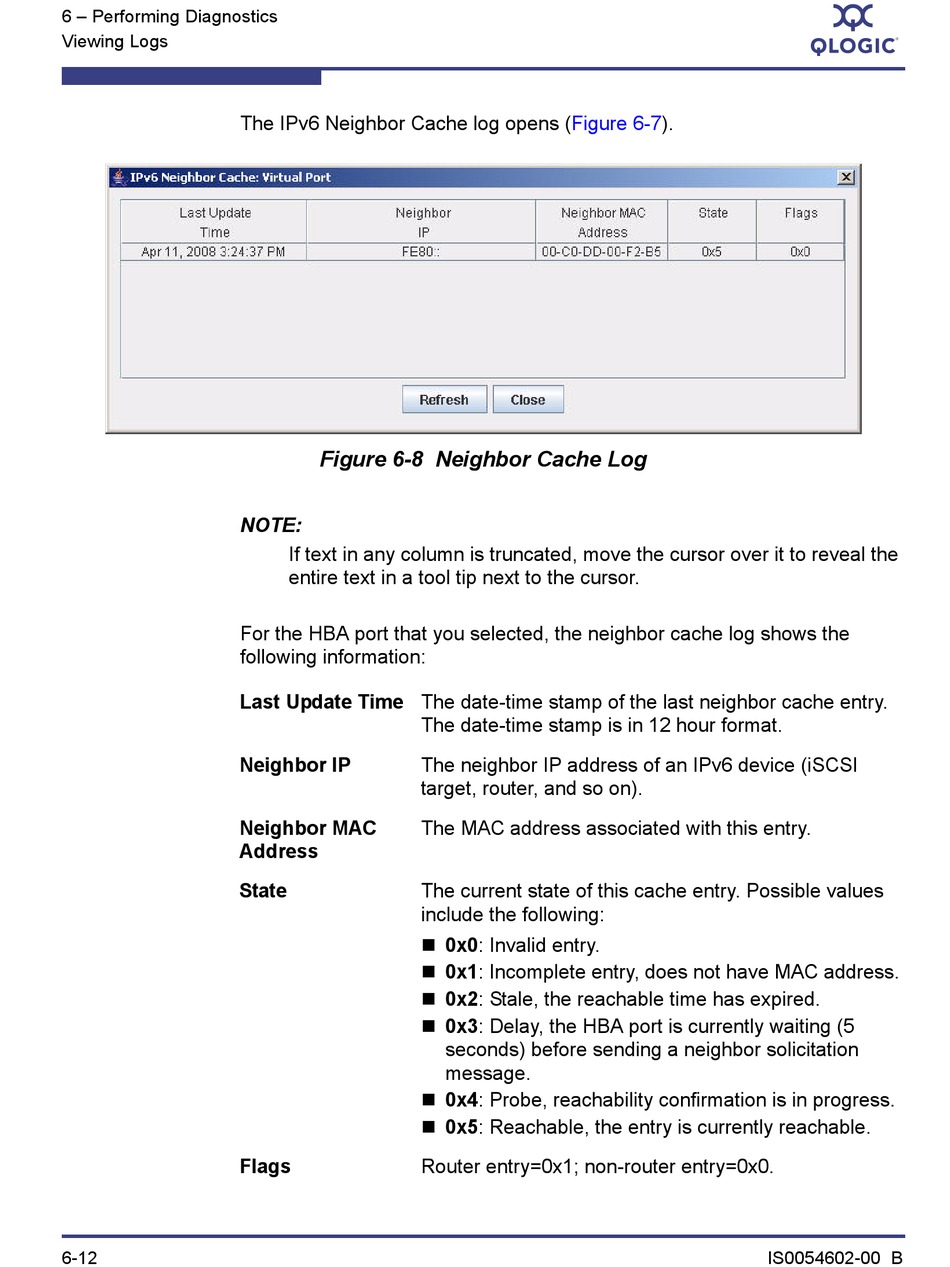

Figure 6-8 Neighbor Cache Log
If text in any column is truncated, move the cursor over it to reveal the
entire text in a tool tip next to the cursor.
The date-time stamp is in 12 hour format.
The neighbor IP address of an IPv6 device (iSCSI
target, router, and so on).
The MAC address associated with this entry.
The current state of this cache entry. Possible values
include the following:
0x0: Invalid entry.
0x1: Incomplete entry, does not have MAC address.
0x2: Stale, the reachable time has expired.
0x3: Delay, the HBA port is currently waiting (5
seconds) before sending a neighbor solicitation
message.
0x4: Probe, reachability confirmation is in progress.
0x5: Reachable, the entry is currently reachable.
Router entry=0x1; non-router entry=0x0.
(Figure 6-7).
