6

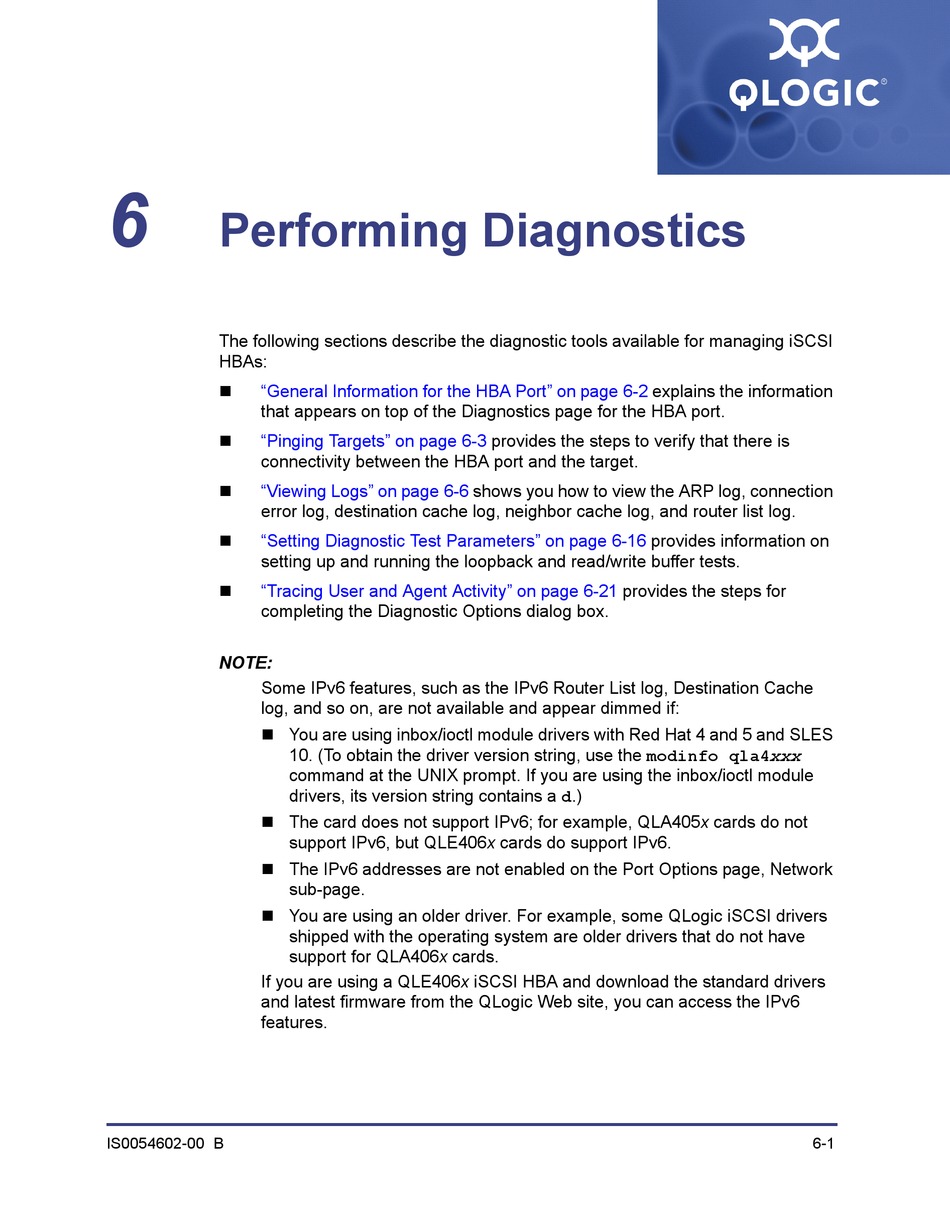

Performing Diagnostics

The following sections describe the diagnostic tools available for managing iSCSI
HBAs:
"General Information for the HBA Port" on page 6-2
that appears on top of the Diagnostics page for the HBA port.
"Pinging Targets" on page 6-3
connectivity between the HBA port and the target.
"Viewing Logs" on page 6-6
error log, destination cache log, neighbor cache log, and router list log.
"Setting Diagnostic Test Parameters" on page 6-16
setting up and running the loopback and read/write buffer tests.
"Tracing User and Agent Activity" on page 6-21
completing the Diagnostic Options dialog box.
NOTE:
Some IPv6 features, such as the IPv6 Router List log, Destination Cache
log, and so on, are not available and appear dimmed if:
If you are using a QLE406x iSCSI HBA and download the standard drivers
and latest firmware from the QLogic Web site, you can access the IPv6
features.
IS0054602-00 B
You are using inbox/ioctl module drivers with Red Hat 4 and 5 and SLES
10. (To obtain the driver version string, use the modinfo qla4xxx
command at the UNIX prompt. If you are using the inbox/ioctl module
drivers, its version string contains a d.)
The card does not support IPv6; for example, QLA405x cards do not
support IPv6, but QLE406x cards do support IPv6.
The IPv6 addresses are not enabled on the Port Options page, Network
sub-page.
You are using an older driver. For example, some QLogic iSCSI drivers
shipped with the operating system are older drivers that do not have
support for QLA406x cards.
explains the information
provides the steps to verify that there is
shows you how to view the ARP log, connection
provides information on
provides the steps for
6-1
