HBA port-identifying information on the top of the HBA Options page
includes the following:
HBA Model
State
Serial Number
HBA Alias Name HBA port iSCSI alias name. Symbolic name you assign
4. On the HBA Utilities page, click Retrieve Coredump Record.
The Save FW Coredump dialog box
5. To save the core dump record, choose one of the following options:
IS0054602-00 B
HBA instance number and HBA model.
The HBA port state. For details about the HBA port state
and its correspondence with the HBA icons, see the
help topic,
Green background
port is operational and ready.
Yellow background
HBA port is not in an operational state.
Blue background
HBA port is processing an operation. The state
remains unknown until the operation is complete.
After the operation is complete, the state changes to
green, yellow, or red based on the results of the
operation.
Red background
is not available.
HBA serial number.
to the HBA port for identification purposes.

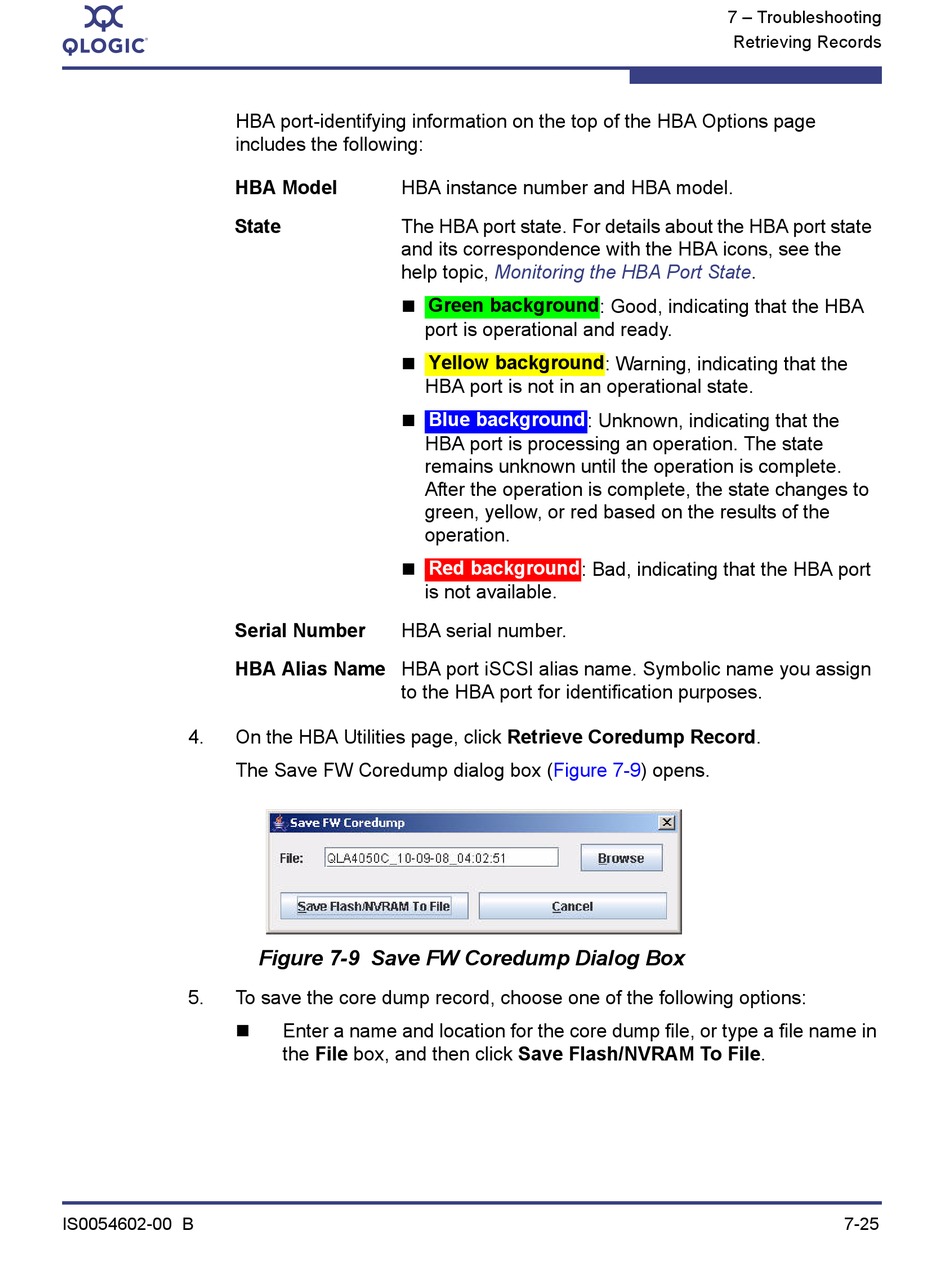

Figure 7-9 Save FW Coredump Dialog Box
Enter a name and location for the core dump file, or type a file name in
the File box, and then click Save Flash/NVRAM To File.
Monitoring the HBA Port
: Good, indicating that the HBA
: Warning, indicating that the
: Unknown, indicating that the
: Bad, indicating that the HBA port
(Figure 7-9) opens.
