Update Sansurfer: Server Proxy Settings Dialog Box - Qlogic SANsurfer iSCSI HBA Manager User Manual

A
The Server Proxy Settings dialog box

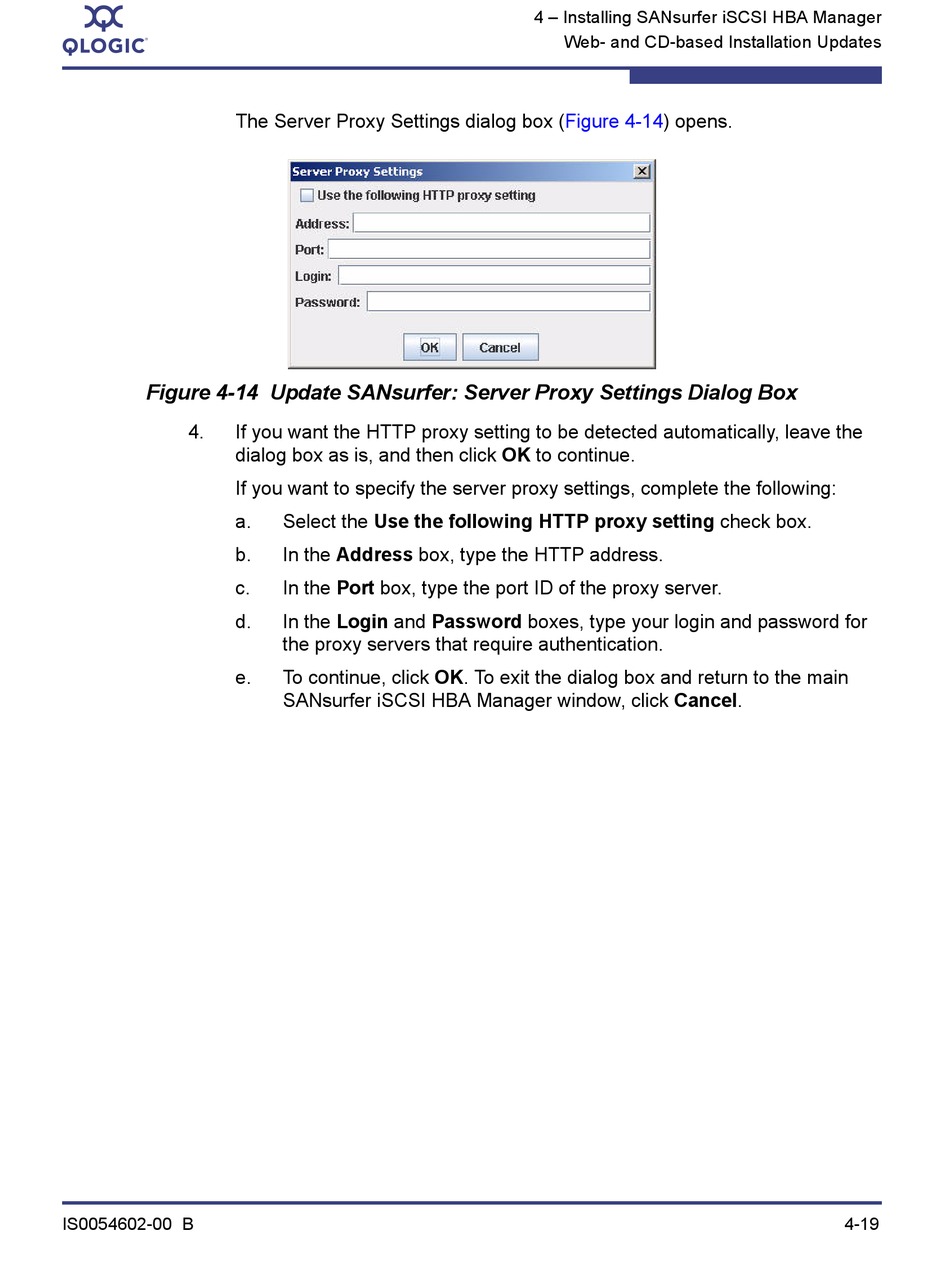

Figure 4-14 Update SANsurfer: Server Proxy Settings Dialog Box
4. If you want the HTTP proxy setting to be detected automatically, leave the
dialog box as is, and then click OK to continue.
If you want to specify the server proxy settings, complete the following:
a.
b.
c.
d.
e.
IS0054602-00 B
Select the Use the following HTTP proxy setting check box.
In the Address box, type the HTTP address.
In the Port box, type the port ID of the proxy server.
In the Login and Password boxes, type your login and password for
the proxy servers that require authentication.
To continue, click OK. To exit the dialog box and return to the main
SANsurfer iSCSI HBA Manager window, click Cancel.
4 – Installing SANsurfer iSCSI HBA Manager
Web- and CD-based Installation Updates
(Figure 4-14) opens.
4-19
