System Map: Bottom Views

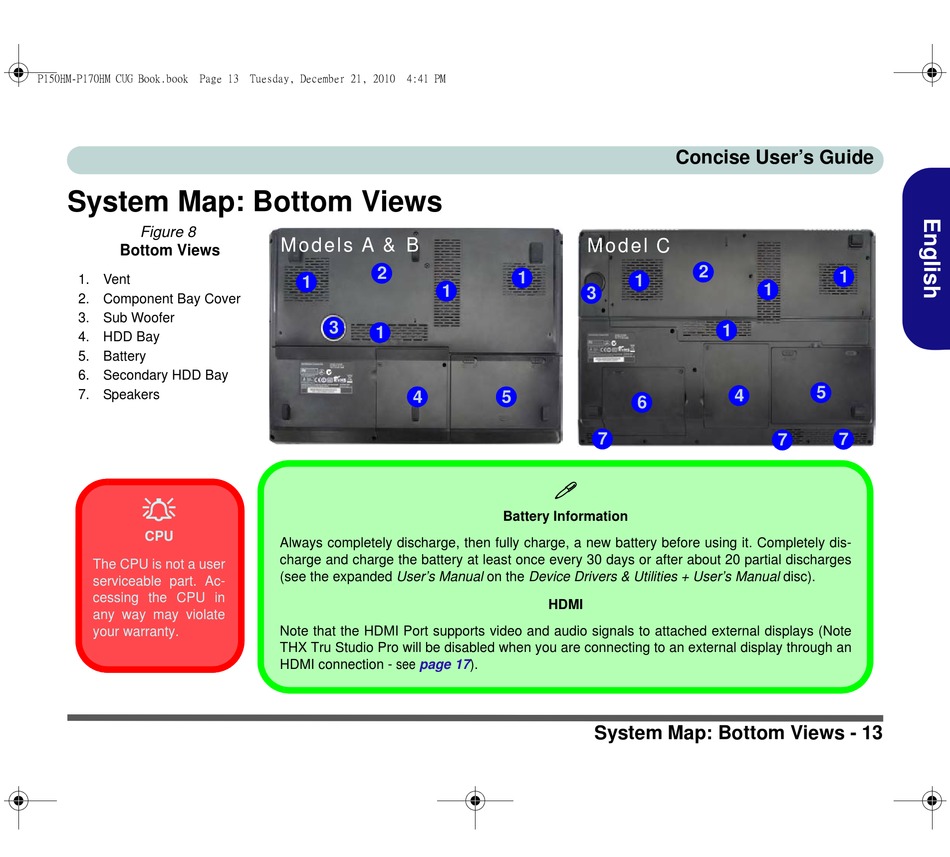

Figure 8
Bottom Views
1. Vent
2. Component Bay Cover
3. Sub Woofer
4. HDD Bay
5. Battery
6. Secondary HDD Bay
7. Speakers

CPU
The CPU is not a user
serviceable part. Ac-
cessing the CPU in
any way may violate
your warranty.
Models A & B
2
1
1
3
1
4
Always completely discharge, then fully charge, a new battery before using it. Completely dis-
charge and charge the battery at least once every 30 days or after about 20 partial discharges
(see the expanded User's Manual on the Device Drivers & Utilities + User's Manual disc).
Note that the HDMI Port supports video and audio signals to attached external displays (Note
THX Tru Studio Pro will be disabled when you are connecting to an external display through an
HDMI connection - see page 17).
Concise User's Guide
Model C
1
1
3
5
6
7

Battery Information
HDMI
System Map: Bottom Views - 13
