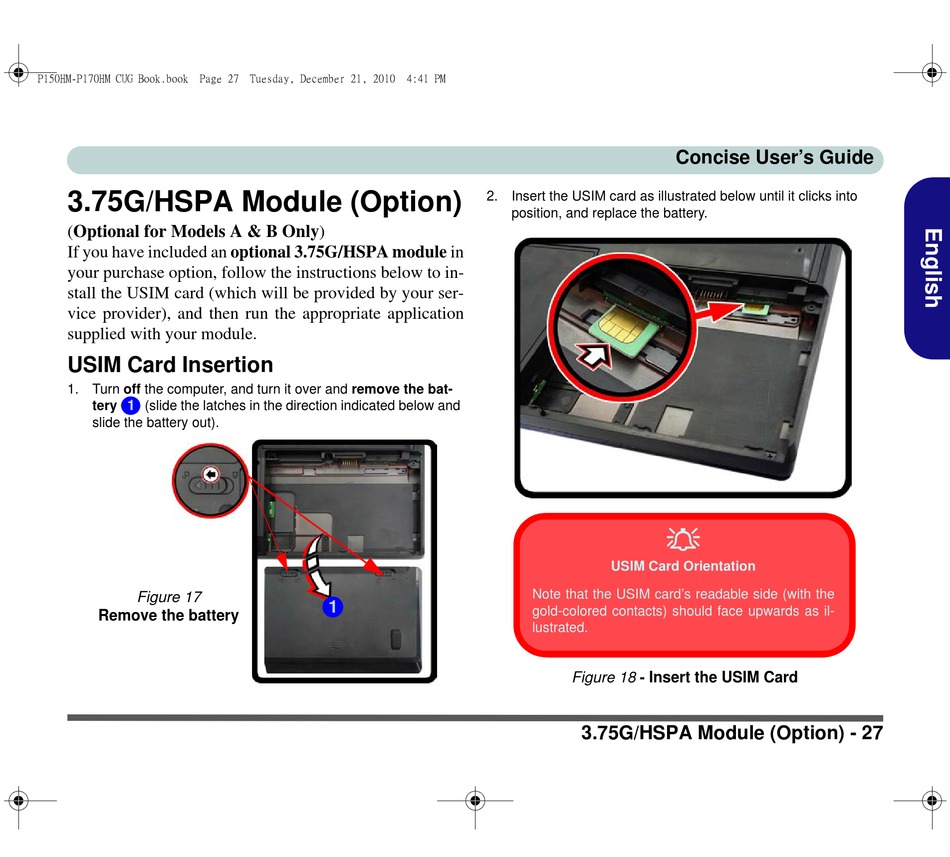

3.75G/HSPA Module (Option)

(Optional for Models A & B Only)
If you have included an optional 3.75G/HSPA module in
your purchase option, follow the instructions below to in-
stall the USIM card (which will be provided by your ser-
vice provider), and then run the appropriate application
supplied with your module.
USIM Card Insertion
1. Turn off the computer, and turn it over and remove the bat-
1
tery (slide the latches in the direction indicated below and
slide the battery out).
Figure 17
Remove the battery
2. Insert the USIM card as illustrated below until it clicks into
1
Concise User's Guide
position, and replace the battery.

USIM Card Orientation
Note that the USIM card's readable side (with the
gold-colored contacts) should face upwards as il-
lustrated.
Figure 18 - Insert the USIM Card
3.75G/HSPA Module (Option) - 27
