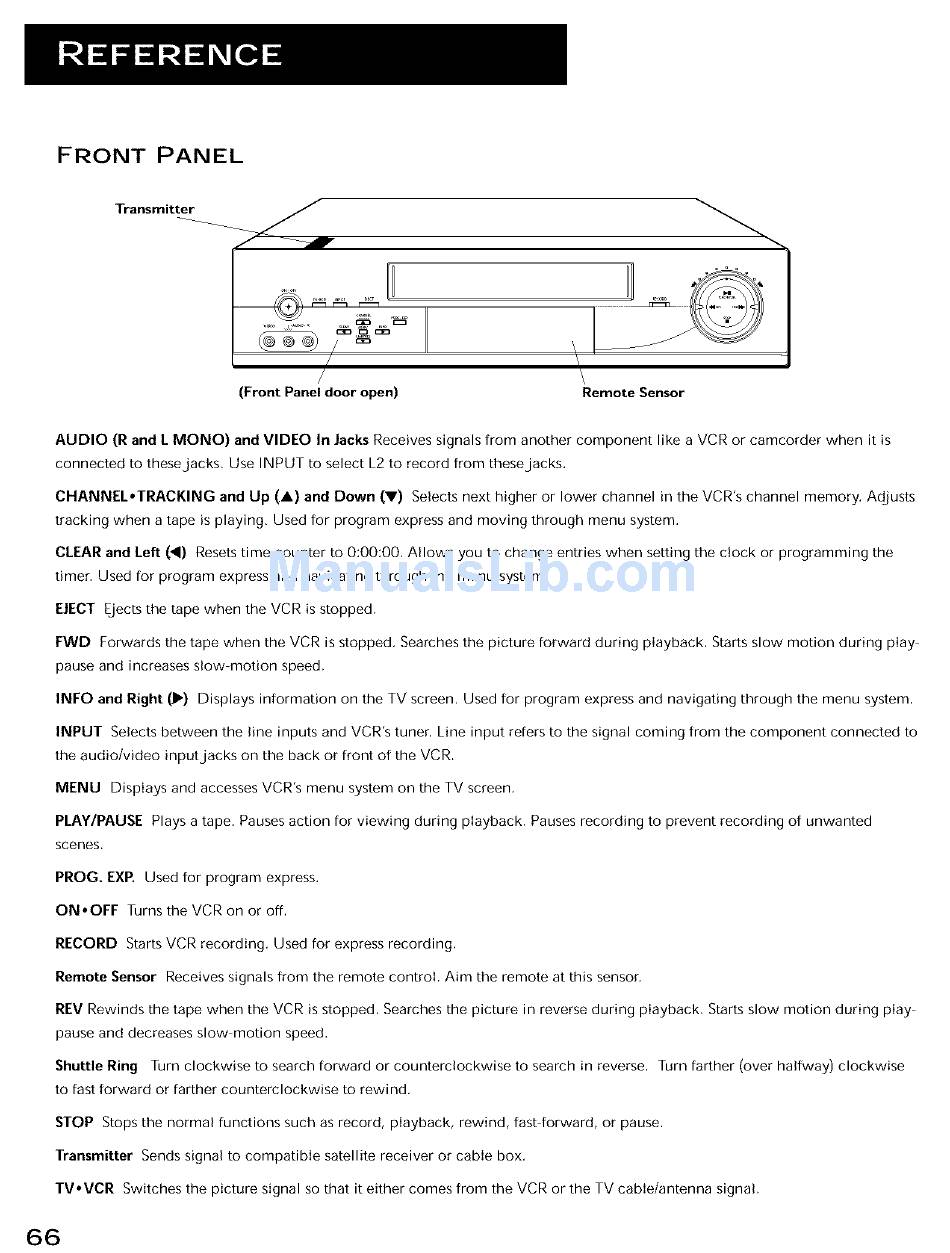

FRONT PANEL
/
(Front Panel door open)
\
\
Remote Sensor
AUDIO (R and L MONO) and VIDEO In Jacks Receives signals from another component like a VCR or camcorder when it is
connected to these jacks, Use INPUT to select L2 to record from these jacks.
CHANNEL,TRACKING and Up (A) and Down (V) Selects next higher or lower channel in the VCR's channel memory, Adjusts
tracking when a tape is playing, Used for program express and moving through menu system,
CLEAR and Left (4) Resets time counter to 0:00:00, Allows you to change entries when setting the clock or programming the
timer, Used for program express and navigating through the menu system.
EJECT Ejects the tape when the VCR is stopped.
FWD Forwards the tape when the VCR is stopped. Searches the picture forward during playback. Starts slow motion during play
pause and increases slow motion speed.
INFO and Right (J_) Displays information on the TV screen. Used for program express and navigating through the menu system.
INPUT Selects between the line inputs and VCR's tuner. Line input refers to the signal coming from the component connected to
the audio/video input jacks on the back or front of the VCR.
MENU Displays and accesses VCR's menu system on the TV screen.
PLAY/PAUSE Plays a tape. Pauses action for viewing during playback. Pauses recording to prevent recording of unwanted
scenes.
PROG. EXE Used for program express.
ON.OFF Turns the VCR on or off.
RECORD Starts VCR recording. Used for express recording.
Remote Sensor Receives signals from the remote control. Aim the remote at this sensor.
REV Rewinds the tape when the VCR is stopped. Searches the picture in reverse during playback. Starts slow motion during play
pause and decreases slow motion speed.
Shuttle Ring Turn clockwise to search forward or counterclockwise to search in reverse. Turn farther (over halfway) clockwise
to fast forward or farther counterclockwise to rewind.
STOP Stops the normal functions such as record, playback, rewind, fast forward, or pause.
Transmitter Sends signal to compatible satellite receiver or cable box.
TV.VCR Switches the picture signal so that it either comes from the VCR or the TV cable/antenna signal.
