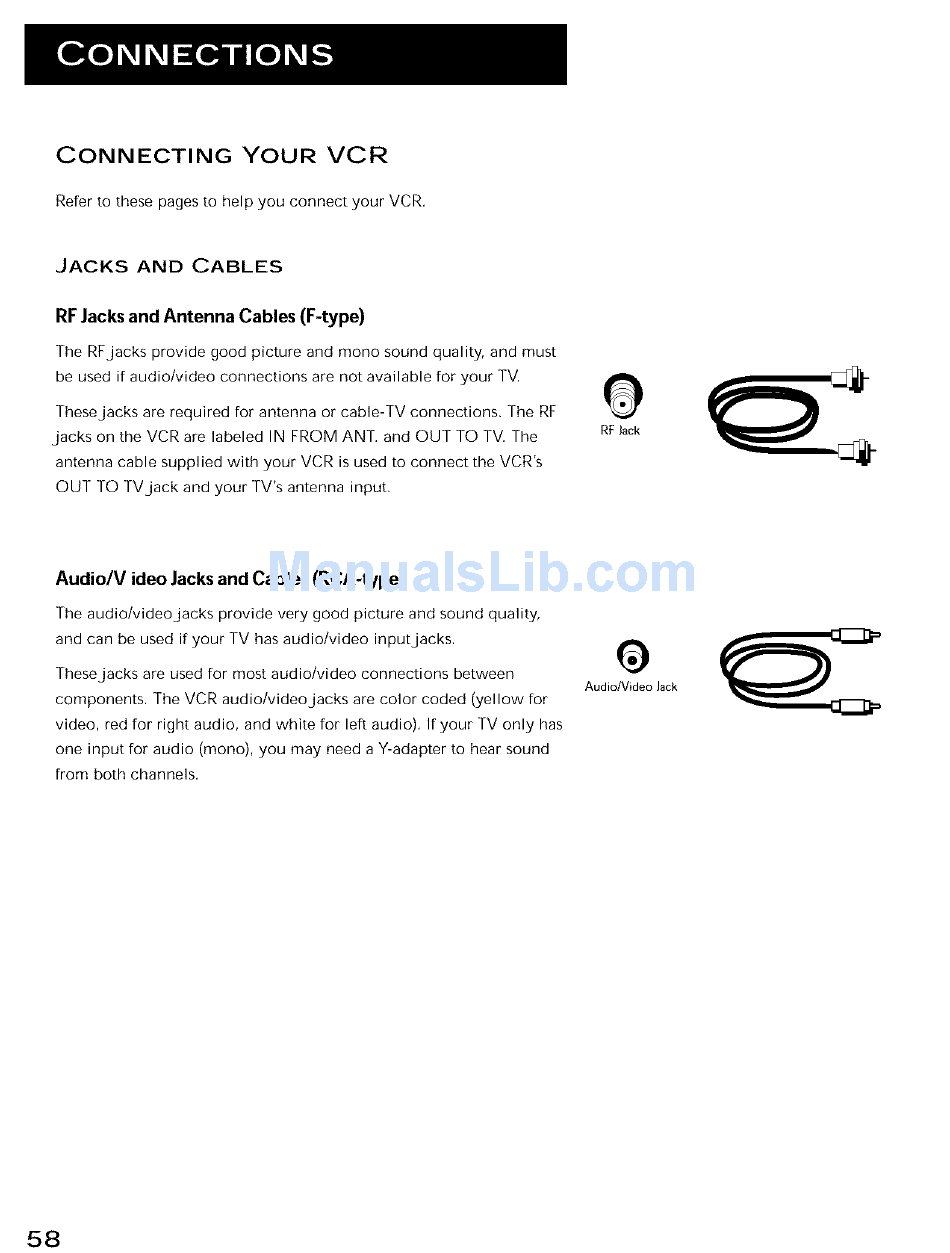

CONNECTING
YOUR
VCR
Refer to these pages to help you connect
your VCR,
JACKS
AND
CABLES
RF Jacks and Antenna Cables (F-type)
The RFjacks provide good picture and mono sound quality, and must
be used if audio/video connections are not available for your TV.
Thesejacks
are required
for antenna or cable-TV
connections.
The RF
jacks
on the VCR are labeled IN FROM ANT. and OUT TO TV. The
antenna cable supplied
with your VCR is used to connect
the VCR's
OUT TO TVjack
and your TV's antenna
input.
9
RFJack
Audio/V
ideo Jacks and Cables (RCA-type)
The audio/video jacks provide very good picture and sound quality,
and can be used if your TV has audio/video input jacks.
These jacks
are used for most audio/video
connections
between
components.
The VCR audio/videojacks
are color coded (yellow
for
video,
red for right audio, and white for left audio).
If your TV only has
one input for audio (mono),
you may need a Y-adapter
to hear sound
from both channels.
AudioNideo
Jack
