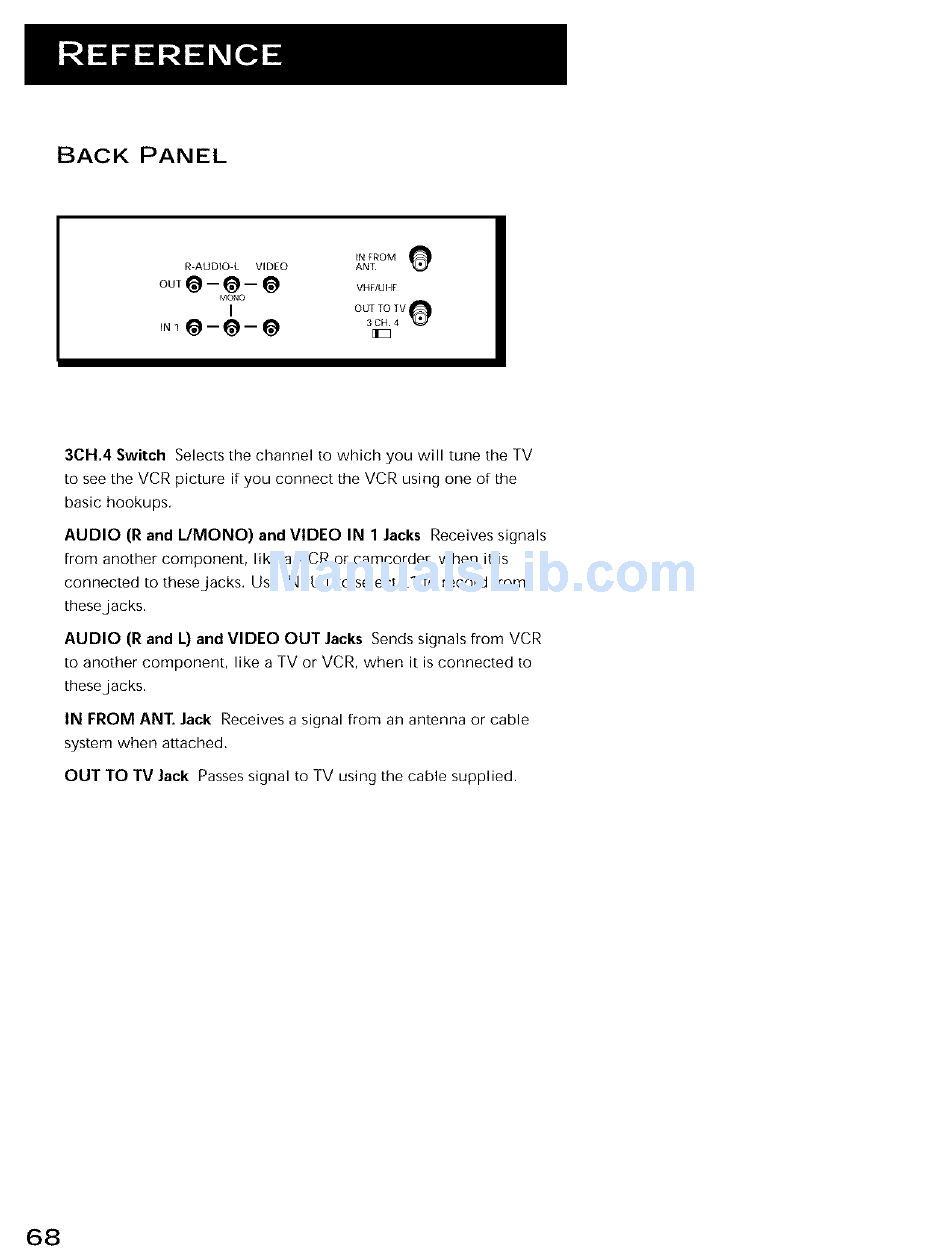

BACK PANEL
IN FROM
R AUDIO L VIDEO ANT
OUT _ i @ i @ VHF/UHF
MONO
OUT TO TV
I acH4
,.1 @-@- @
3CH,4 Switch Selects the channel to which you will tune the TV
to see the VCR picture if you connect the VCR using one of the
basic hookups.
AUDIO (R and L/MONO) and VIDEO IN 1 Jacks Receives signals
from another component, like a VCR or camcorder, when it is
connected to these jacks. Use INPUT to select L1 to record from
these jacks.
AUDIO (R and L) and VIDEO OUT Jacks Sends signals from VCR
to another component, like a TV or VCR, when it is connected to
these jacks.
IN FROM ANT. Jack Receives a signal from an antenna or cable
system when attached.
OUT TO TV Jack Passes signal to TV using the cable supplied.
68
