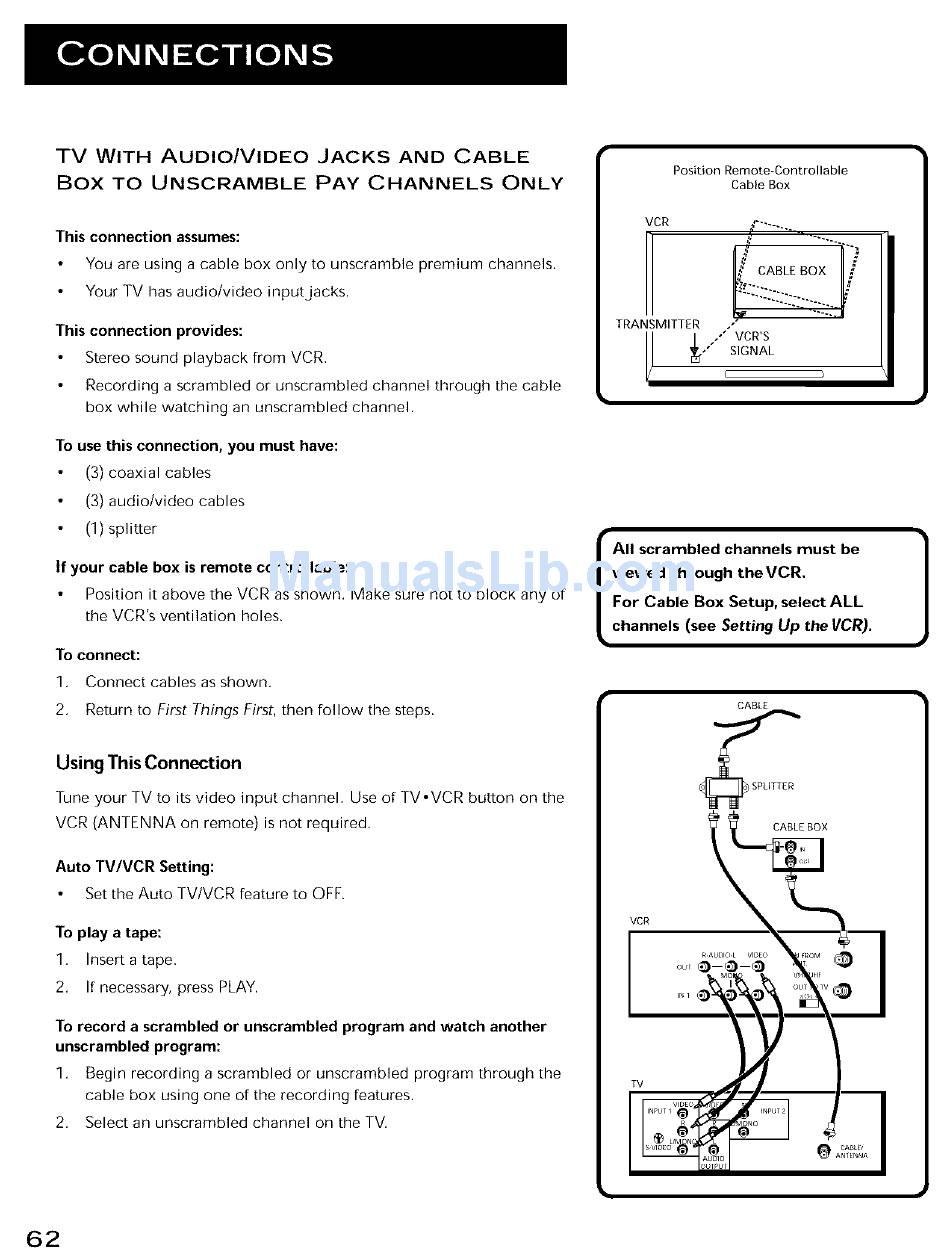

Pay Channels Only - ProScan PSVR74 User Manual

TV
WITH AUDIO/VIDEO JACKS AND CABLE
BOX
TO UNSCRAMBLE PAY CHANNELS ONLY
This connection assumes:
You are using a cable box only to unscramble premium channels.
Your TV has audio/video inputjacks.
This connection provides:
Stereo sound playback from VCR,
Recording a scrambled or unscrambled channel through the cable
box while watching an unscrambled channel.
To use this connection, you must have:
(3) coaxial cables
(3) audio/video cables
(1) splitter
If your cable box is remote controllable:
Position it above the VCR as shown. Make sure not to block any of
the VCR's ventilation holes,
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps,
Using This Connection
Tune your TV to its video input channel. Use of TV,VCR button on the
VCR (ANTENNA on remote) is not required.
Auto TV/VCR Setting:
Set the Auto TV/VCR feature to OFF.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record a scrambled or unscrambled program and watch another
unscrambled program:
1. Begin recording a scrambled or unscrambled program through the
cable box using one of the recording features.
2. Select an unscrambled channel on the TV.
Position Remote-Controllable
Cable Box
VCR €......
22-':22-.'222--: ....... !'"
# #
£ CABLE BOXi
TRANSMITTER /
! .., v c0s
/" SIGNAL )
Ail scrambled channels must be
viewed through theVCR.
For Cable Box Setup, select ALL
channels (see Setting Up the VCR),
CABLE
CABLEBOX
VCR
TV
}
62
