Chapter 2 Overview: Cisco CRS-1 SPA Interface Processor

Identifying Slots and Subslots for SIPs and SPAs

The following sections describe SIP, SPA, and interface numbering:
•
•
•

SIP Slot Locations on the Cisco CRS-1 Router

A SIP can be installed in PLIM slots 0 through 15 on the Cisco CRS-1 router 16-slot line card chassis
and PLIM slots 0 through 7 on the Cisco CRS-1 router 8-slot line card chassis.
show the slot numbering on the front (PLIM side) of the line card chassis.
Figure 2-2
0 1 2 3
8 9 10 11
OL-17439-01
SIP Slot Locations on the Cisco CRS-1 Router, page 2-3
SPA Slot Numbering on the Cisco CRS-1 SIP-800, page 2-4
SPA Interface Addresses on SIPs, page 2-6

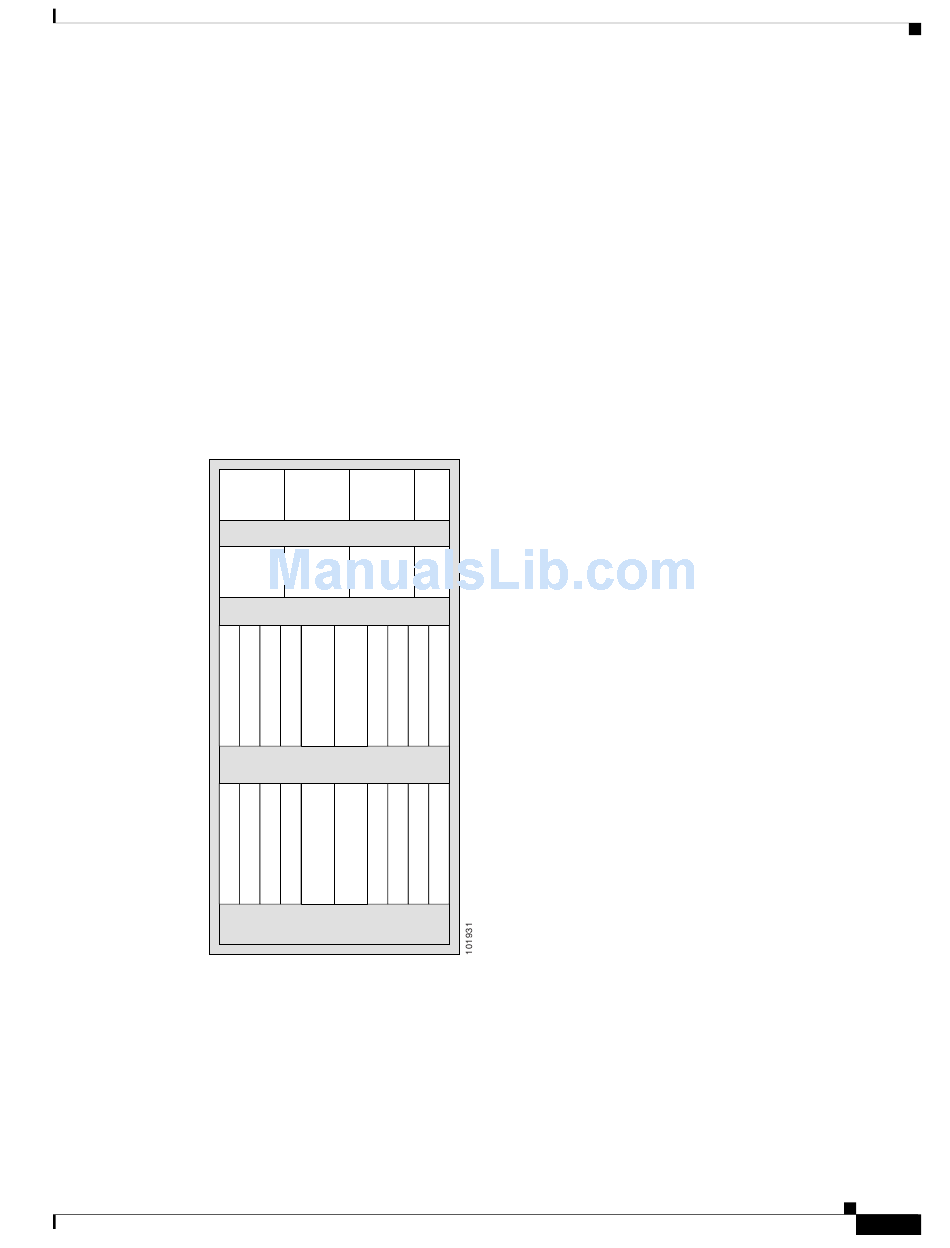

16-Slot Line Card Chassis Slot Numbers—Front (PLIM) View
A0 A1 A2 AM0
PS0 (Power shelf)
B0 B1 B2 AM1
PS1 (Power shelf)
FC0 FC1 4 5 6 7
Upper PLIM card cage
RP0 RP1 12 13 14 15
Lower PLIM card cage
Cisco CRS-1 Carrier Routing System SIP and SPA Hardware Installation Guide
Identifying Slots and Subslots for SIPs and SPAs
Figure 2-2 and Figure 2-3
2-3
