LIFESTYLER LS elite 780 Owner's Manual

0-8 mph 2.0 hp direct pulse interface fat burn guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

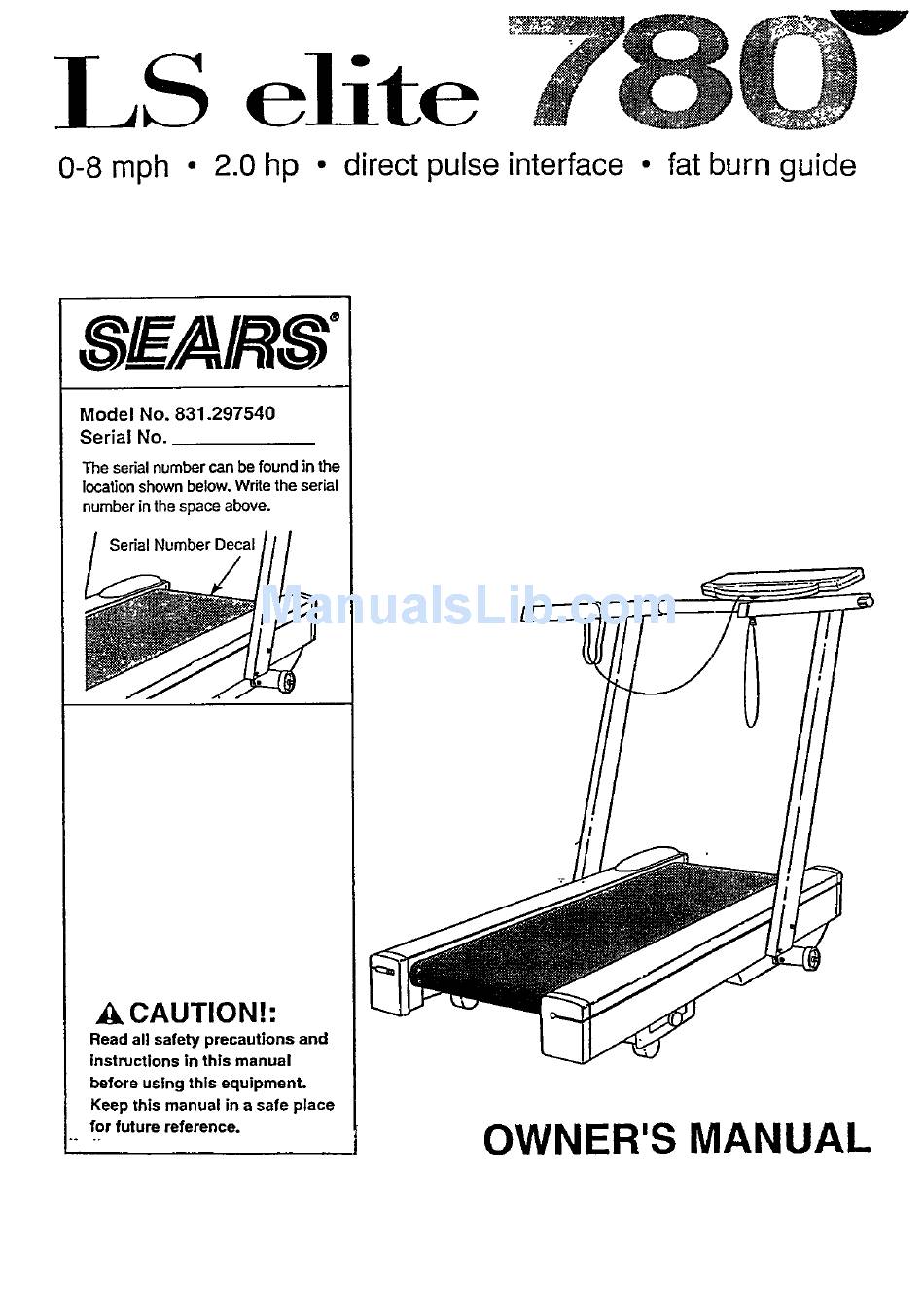

LS ehte
0-8 mph • 2.0 hp • direct pulse interface • fat burn guide
SEARS"
Model No. 831.297540
Serial No.
The serial number can be found in the
location shown below. Write the serial
number in the space above.
Serial Number Decal
CAUTION!:
Read all safety precautions and
instructions in this manual
before using thls equipment.
Keep this manual in a safe place
for future reference.
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS elite 780 and is the answer not in the manual?

Questions and answers

Related Manuals for LIFESTYLER LS elite 780

Summary of Contents for LIFESTYLER LS elite 780

  • Page 1 LS ehte 0-8 mph • 2.0 hp • direct pulse interface • fat burn guide SEARS" Model No. 831.297540 Serial No. The serial number can be found in the location shown below. Write the serial number in the space above.
  • Page 2 For 90 days from the date of purchase, when prcper assembly and maintenance procedures detailed in the Owner's Manual are followed, SEARS will, free of charge, repair or replace and install a replacement part for any defective pad, when this treadmill is used in a normal manner.

  • Page 3: Table Of Contents

    Before beginning this or any exercise program, consult your physician. Thls is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. SEARS assumes no responsibility for personal injury or property...

  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS A WARNING: To reduce the risk Of burns, fire, electric shock or injury to persons, read the fol- lowing important safety precautions and information before operating the treadmill. 1. Position the treadmill on a level surface, with at least 8 feet of clearance behind the treadmill. Do not place the treadmill near water, outdoors or on any surface that blocks an air opening.

  • Page 5: Before You Begin

    BEFORE BEGIN Thank you for selecting the SEARS LS ELITE 780 treadmill. The LS ELITE 780 treadmill blends advanced tech- nology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home.

  • Page 6: Assembly

    ASSEMBLY Assembly requires the assistance of a second person. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembl_is completed. THE FOLLOWING TOOLS ARE REQUIRED FOR ASSEMBLY: An adjustable wrench _ (not Included).
  • Page 7 5. Plug the lower end of the Upright Wire Harness (12) into the 20" Wire Harness (45). The small latch on the Upright Wire • Harness should snap onto the 20" Wire Harness (see the upper inset drawing). If the Wire Harnesses do not fit easily, turn them;...

  • Page 8: How To Use The Pulse Sensor

    HOW TO USE THE PULSE SENSOR "the LS ELITE 780 treadmill features an innovative headband-style pulse sensor. The rubber-armored pulse sen- sor and lightweight headband are specially designed for greater accuracy, comfort and durability• To get the best performance from the pulse sensor, please read the following instructions• ADJUSTING THE HEADBAND 1•...

  • Page 9: Operation And Adjustment

    OPERATION AND ADJUSTMENT PLUGGING IN THE POWER CORD This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
  • Page 10 DIAGRAM OF THE CONSOLE The heart of the treadmill is the state-of-the-art interactive console. The console offers electronic speed and incline control, six independent LED displays, and a Fitness Test that measures your fitness level. In addition, a unique Fat Calorie Monitor is built into the console. During exercise, your body burns either fat calories or carbo- hydrate calories, depending on the intensity of your exercise.
  • Page 11 ENTERING YOUR AGEANDWEIGHT For the console to measure calories accurately, and for the Fat Calorie Monitor and the Fitness Test to function properly, your age and weight must be entered into the console. To enter your age, press one of the AGE SET buttons.
  • Page 12 SPEED DISPLAY--The speed display will show the speed setting that has been selected. TIME DISPLAY--The time display will show the total tir_e that the walking belt has been moving. Note: If the Fitness Test is selected, the display will be reset to zero. The display will be reset again when the Fitness Test is completed.
  • Page 13 TURNING OFFTHEPOWER To turn off the power, remove the safety key from the console. All indicators and LED displays will darken. Store the safety key in a secure location. INFORMATION MODE The console features an information mode that keeps track of trip time and distance, as well as the total time and distance that the treadmill has been operated.

  • Page 14: Trouble-Shooting And Storage

    TROUBLE-SHOOTING AND STORAGE Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1- 800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time. 1.
  • Page 15 and UNPLUG THE POWER CORD. Using the belt tool, turn the rear roller adjustment bolt counterclockwise 1/4 of a turn. Plug in the powercord,insertthe safety key and runthetread- millfor a few minutes.Repeat untilthe walkingbelt is centered. _'Belt Tool STORAGE Unplug the power cord when the treadmill is not in use. Remove one bolt and washer from the lower ends of the left and right uprights.

  • Page 16: Conditioning Guidelines

    CONDITIONING GUIDELINES • The following guidelines will help you to plan your exercise program. Remember that proper nutrition and ade- quate rest are essential for successful results. RNING: Before beginning this or any exercise prog ram, consult your physician. This is especially Important for individuals over the age of 35 or individuals with pre-existing health problems.
  • Page 17 SUGGESTED STRETCHES The following stretches can provide a good warm-up or cool-down. Correct form for each stretch is shown in the drawings below. Move slowly as you stretch-never bounce. TOE TOUCH STRETCH Stand with your knees bent slightly and slowly bend forward from your hips.

  • Page 18: Part List

    PART LISTmModel No. 831.297540 R994A "Key Part Qty. Description Qty. Description 120554 120242 Belt Tension Spring Endcap 120492 Cushion Foot Rod 120202 Left Upright 120244 Console Knob 013141 Endcap Screw 120245 012096 Spring Nut Upright Endcap 111869 Cage Nut 102633 Optic Switch Wire Harness Console Crossbar 102959...

  • Page 19: Exploded Drawing

    EXPLODED DRAWINGmModel No. 831.297540 R994A 97 64 '100 91 88 32 52 51...

  • Page 20: Ordering Replacement Parts

    All parts listed herein can be ordered through SEARS, RoEBucK AND CO. SERVICE CENTERS and most SEARS RETAIL STORES. If parts you need are not stocked locally, your order will be transmitted to a SEARS PARTS DISTRIBUTION CENTER for handling.
