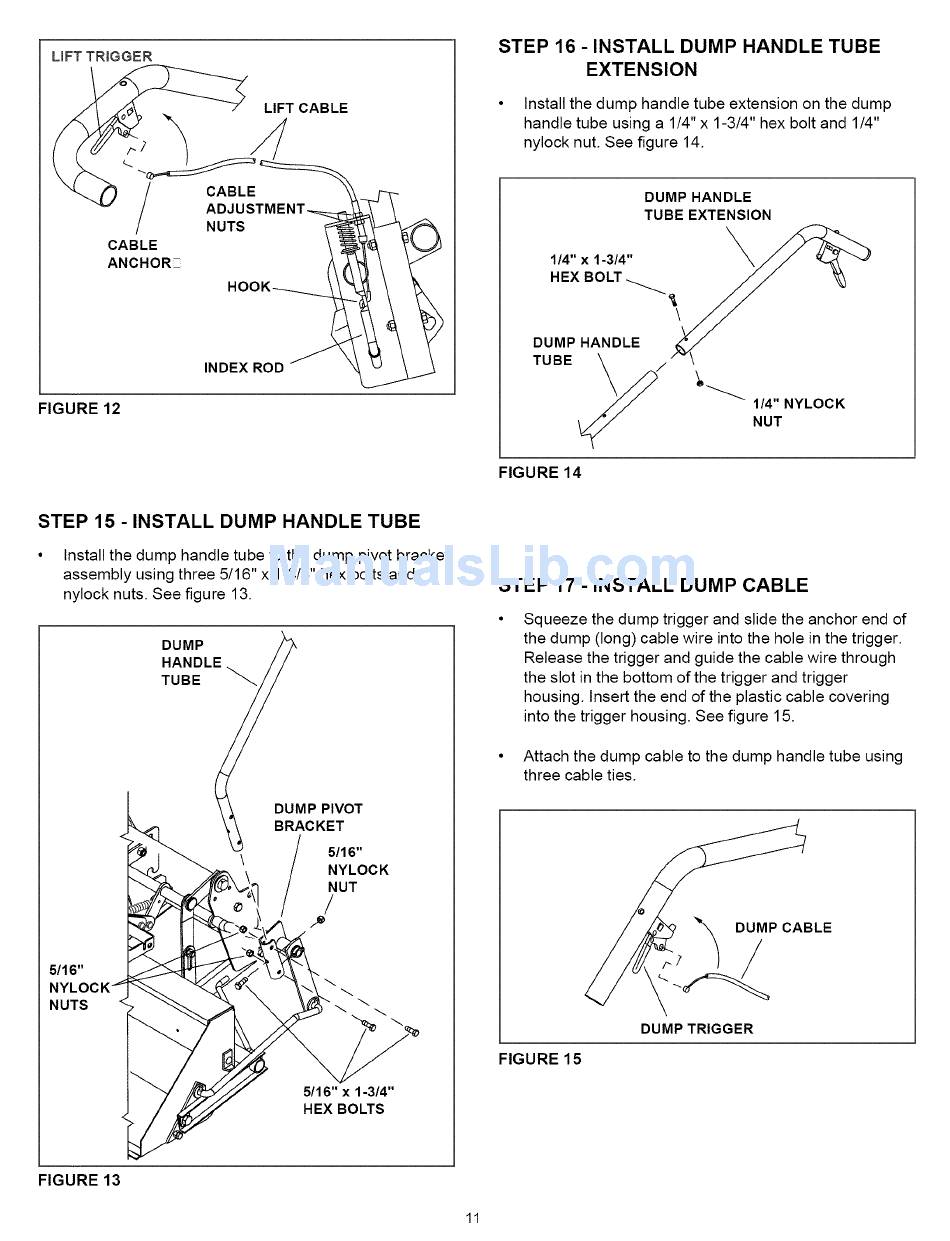

LmFT TRIGGER
LIFT CABLE
CABLE
o OSTMENT-
CABLE
ANCHOR-
HOOK
' (
INDEX RO_
FIGURE 12
STEP 16 - INSTALL
DUMP HANDLE
TUBE
EXTENSION
Install the dump handle tube extension on the dump
handle tube using a 1/4" x 1-3/4" hex bolt and 1/4"
nylock nut. See figure 14.
DUMP HANDLE
TUBE EXTENSION
\
1/4" x 1-3/4"
REX BOLT
\
DUMP HANDLE
TUBE
_/
1/4" NYLOCK
NUT
FIGURE 14
STEP 15 - INSTALL
DUMP HANDLE
TUBE
Install the dump handle tube to the dump pivot bracket
assembly using three 5/16" x 1-3/4" hex bolts and
nylock nuts. See figure 13.
DUMP
/
HANDLE
TUBE
DUMP PIVOT
BRACKET
\
5/16"
NYLOCK
NUT
/
5/16"
NUTS
5/16" x 1-3/4"
HEX BOLTS
STEP 17 - INSTALL
DUMP CABLE
Squeeze the dump trigger and slide the anchor end of
the dump (long) cable wire into the hole in the trigger.
Release the trigger and guide the cable wire through
the slot in the bottom of the trigger and trigger
housing. Insert the end of the plastic cable covering
into the trigger housing. See figure 15.
Attach the dump cable to the dump handle tube using
three cable ties.
DUMP CABLE
DUMP TRIGGER
FIGURE 15
FIGURE 13
11
