Managing the MSA SAN Switch 2/8

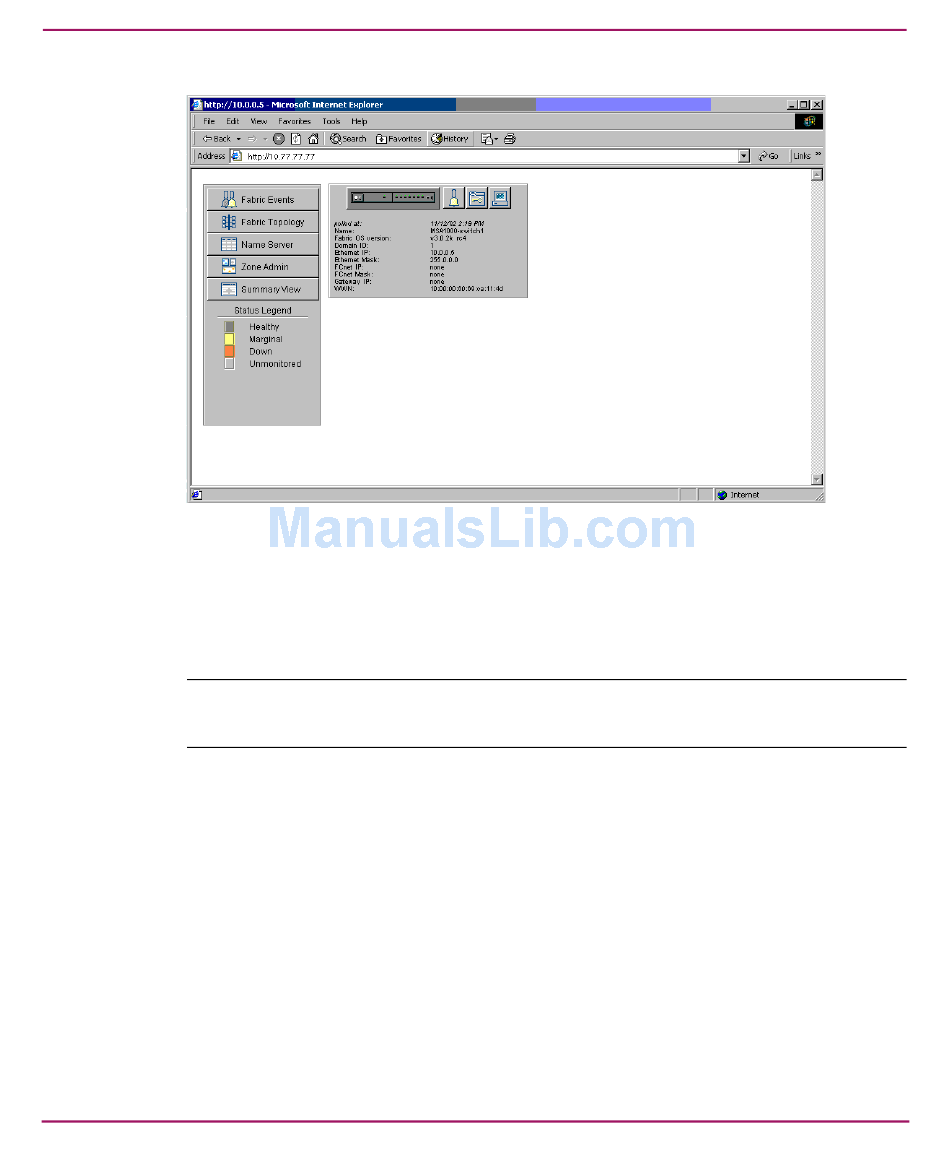

Figure 9: Initial Web Tools display
All switches in the fabric are displayed in the Web Tools main window, including
switches that do not have a Web Tools license. However, only switches that have a
Web Tools license can be managed through the Web Tools GUI.
Note: The switch panel image in the documentation is a representation of the switch.
The switch panel on your screen display will accurately represent your switch.
For instructions using Web Tools to manage your MSA SAN Switch and on
installing the Java Plug-in, refer to the HP StorageWorks Web Tools User Guide.
This manual is available on the documentation CD, included in the shipping
carton with the switch.
MSA SAN Switch 2/8 Installation Guide 41
