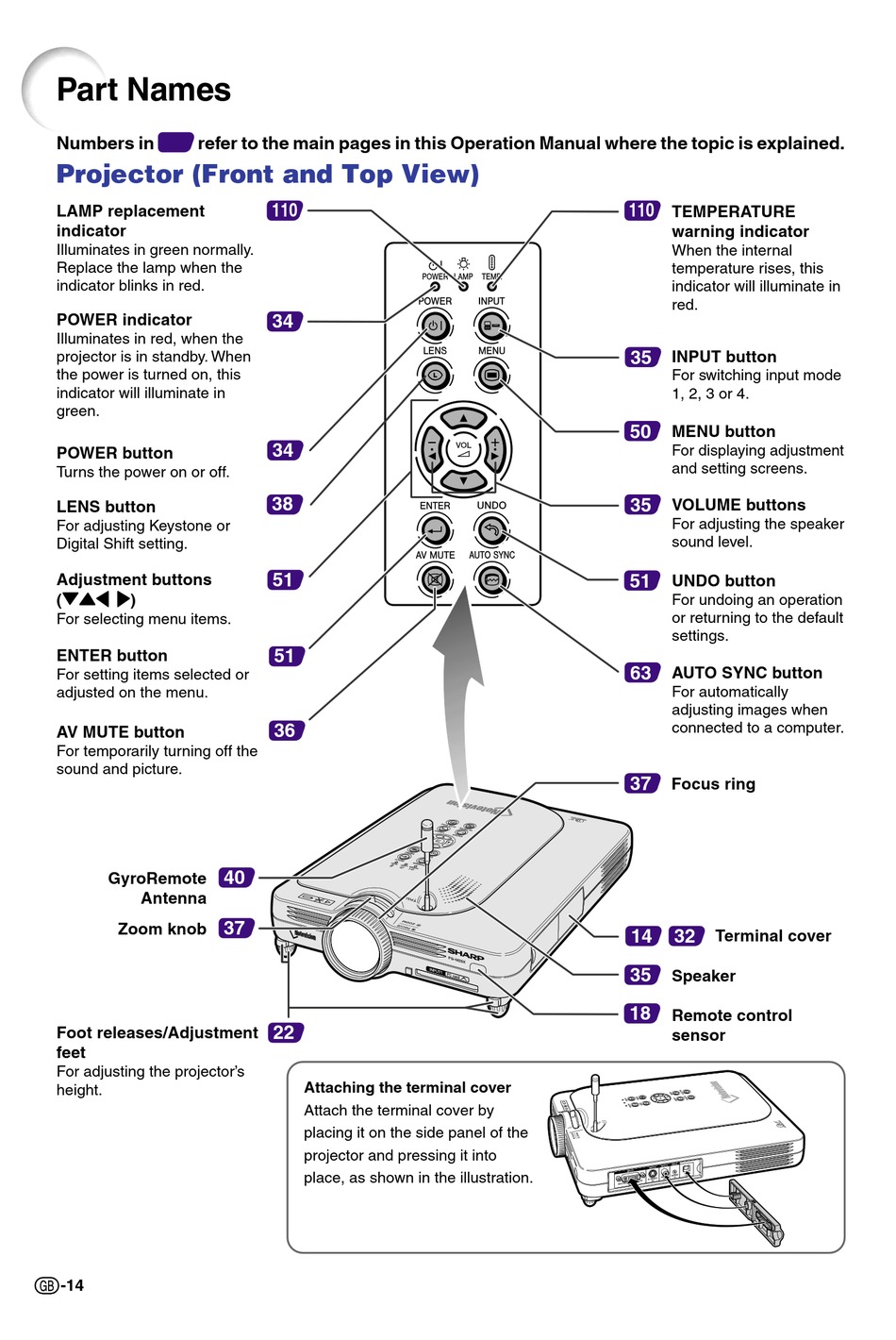

Part Names

Numbers in refer to the main pages in this Operation Manual where the topic is explained.

Projector (Front and Top View)

LAMP replacement
indicator
Illuminates in green normally.
Replace the lamp when the
indicator blinks in red.
POWER indicator
Illuminates in red, when the
projector is in standby. When
the power is turned on, this
indicator will illuminate in
green.
POWER button
Turns the power on or off.
LENS button
For adjusting Keystone or
Digital Shift setting.
Adjustment buttons
"'\ | "'\ |
("'\ | "'\ | "'\ |)
For selecting menu items.
ENTER button
For setting items selected or
adjusted on the menu.
AV MUTE button
For temporarily turning off the
sound and picture.
40
GyroRemote
Antenna
37
Zoom knob
Foot releases/Adjustment
feet
For adjusting the projector's
height.
-14
110
34
34
38
51
51
36
22
Attaching the terminal cover
Attach the terminal cover by
placing it on the side panel of the
projector and pressing it into
place, as shown in the illustration.
110
TEMPERATURE
warning indicator
When the internal
temperature rises, this
indicator will illuminate in
red.
35 INPUT button
For switching input mode
1, 2, 3 or 4.
50
MENU button
For displaying adjustment
and setting screens.
35
VOLUME buttons
For adjusting the speaker
sound level.
51
UNDO button
For undoing an operation
or returning to the default
settings.
63
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
37
Focus ring
14 32 Terminal cover
35
Speaker
18
Remote control
sensor
