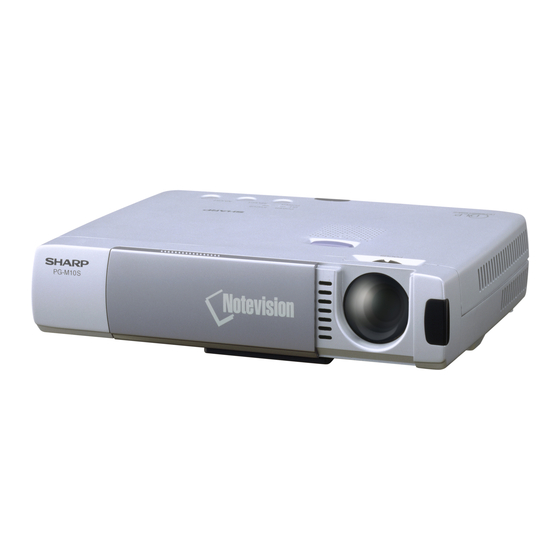

- Page 1 OPERATION MANUAL MODEL PG-M10X PG-M10S DIGITAL MULTIMEDIA PROJECTOR...
- Page 2 This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/ EEC. Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/ 68/EWG. Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la directive 93/68/CEE.
-
Page 3: Operation Manual
2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE. -
Page 4: Caution Concerning The Lamp Replacement
HANDLE WITH CARE. SEE OPERATION MANUAL. ATTENTION SURFACE CHAUDE. NE REMPLACER QUE PAR UNE UNITE DE LAMPE SHARP DE TYPE BQC-PMG10X//1. RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER A L'ENTRETIEN. LAMPE A MOYENNE PRESSION : RISQUE D'EXPLOSION. -
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Electrical energy can perform many useful functions. This product has been engineered and manufactured to ensure your personal safety. However, IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this Projector, observe the following basic rules for its installation, use and servicing. For your own protection and reliable usage of your projector, please be sure to read these “IMPORTANT SAFEGUARDS”... - Page 6 Sharp Authorized LCD • For PLUGGABLE EQUIPMENT, the socket-outlet shall be Projector Dealer or Service Center.
-
Page 7: Table Of Contents
Important Safeguards ........3 Resetting the Lamp Usage Timer ......29 Usage Guidelines ..........6 Advanced Menu Settings ........ 30 For SHARP Assistance (U.S.A. only) ....6 Set the colors as desired in accordance with the Features .............. 7 image contents..........30 Supplied Accessories ........ -
Page 8: Usage Guidelines
If you encounter any problems during setup or operation of this projector, first refer to the “Troubleshooting” section on page 35. If this operation manual does not answer your question, please call toll free 1-888-GO-SHARP (1-888-467-4277) for further assistance. Or, send us an e-mail at lcdsupport@sharpsec.com. -
Page 9: Features
• Sharp, clear images There is no RGB color separation, and the spaces between the individual pixels are not noticeable. That means sharp and clear reproduction of small characters and figures. Take a closer look and notice the difference in quality! •... -
Page 10: Supplied Accessories
Supplied Accessories Make sure your box contains everything listed below*. If any pieces are missing, contact your dealer. Please save the original box and packing materials in case you need to ship the unit. For video equipment connection For remote control Video cable S-video cable Remote control... -
Page 11: Preparing The Remote Control
Preparing the Remote Control Inserting the batteries 1 Press firmly and slide the battery cover off. Battery cover 2 Insert the two supplied batteries (size AAA/R03). Ensure that the polarities (+ and –) of the batteries are aligned correctly. Battery cover 3 Slide the battery cover back until it snaps into place. -
Page 12: Part Names
Part Names Numbers next to the part names refer to the main pages in this manual where the topic is explained. Top, front side panel view Control panel POWER indicator POWER STATUS STATUS indicator ON/OFF INPUT SELECT AUTO SYNC AUTO SYNC button POWER ON/OFF button INPUT SELECT button Speaker... - Page 13 Part Names Rear and side panel view Remote control sensor Kensington Security Standard connector [see below] AC socket Rear adjuster Terminal Panel COMPUTER input terminal AUDIO input terminal VIDEO input terminal AUDIO MOUSE COMPUTER S-VIDEO VIDEO MOUSE terminal S-VIDEO input terminal Kensington Lock This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver...
- Page 14 Part Names Remote Control Front View Rear View ENTER button The red LED lights during infrared sending. MENU button Cursor key MOUSE button POWER ON/OFF button VIDEO button COMPUTER button R-CLICK/EXIT button FREEZE button AUTO SYNC button AV MUTE button ENLARGE button VOLUME button KEYSTONE button...
-
Page 15: Installation
Installation The distance from the unit lens to the screen determines the size of the projected image. Therefore, you need to consider the unit placement in relationship to the screen prior to making the electrical and signal connections. Appropriate screen size and height are directly related to the unit’s position and need to be evaluated. -
Page 16: Reversed Image Setup
Installation Reversed Image Setup Rear projection Projection using a mirror • Place a translucent screen between the unit and the • Place a mirror (normal flat type) in front of the lens. audience. • Use the unit’s menu system to reverse the projected •... -
Page 17: Connections
Connections Connecting video equipment You can connect up to two pieces of video equipment to the unit following the illustrations below. • You can switch the input source (picture) to VIDEO or S-VIDEO when you connect two pieces of equipment. (The S-VIDEO connection provides more vivid color and higher resolution compared to the VIDEO connection.) •... -
Page 18: Connecting Video Equipment With Component
Connections Connecting Video Equipment With Component Video Signal (YP ) Output Video equipment with component video signal (YP ) output can be connected to this unit by setting the COMPUTER input terminal to YP (see page 31) from the menu. Note that this unit is compatible only with 480I component video. -
Page 19: Changing The Computer's Video Resolutions
Connections Changing the computer’s video resolutions Notebook computers and resolution Depending on your computer's graphics capability, you standards may be able to select one of several resolutions. Generally PG-M10X a computer- either a PC or Macintosh- with 1 MB VRAM will The unit is designed to project industry standardized video generally run: such as VESA (Video Electronics Standards Association) or... -
Page 20: Using The Unit
Using the unit Before Using, open the sliding lens cap. Turn on the connected source (computer, VCR, DVD player, etc.). If you use a video component, start playback for screen/image adjustment. Select the input by pressing either the VIDEO or COMPUTER button of the remote control, or the INPUT SELECT button of the Connect the power cord. - Page 21 Using the unit Adjuster Adjustment Adjust the image size to match the distance There are two adjusters: one on the right side of the back panel and another in the front center of the unit. to the screen. Next, use the focus ring to adjust the focus.
-
Page 22: Using The Remote Control (Input Selection)
Using the Remote Control (Input Selection) Using the unit (continued) Using the Remote Control (Input Selection) After using the unit Press the POWER ON/OFF button of the remote control or the POWER ON/OFF MOUSE ON/OFF button of the main unit for a few seconds. MENU The power will turn off and the POWER indicator will VIDEO... -
Page 23: Using The Remote Control As The Pc Mouse
Using the Remote Control as the PC Mouse The remote control of this unit can be used as the PC mouse (wireless mouse function) by connecting the MOUSE terminal of this unit and the PC. Remote control mouse functions • The cursor key on the remote control operates the computer mouse functions. •... -
Page 24: Various Functions While Using The Unit
Various functions while using the unit The following operations can be performed by opening the FLIP COVER of the remote control. FREEZE button AUTOSYNC FREEZE AV MUTE AUTO SYNC button AV MUTE button ENLARGE KEYSTONE VOLUME ENLARGE +/– button VOLUME +/– button KEYSTONE +/–... -
Page 25: Enlarging The Picture
Various functions while using the unit To move to the desired portion of the enlarged picture Press the desired portion of the cursor key. Cursor key The available directions are indicated by the four MOUSE ON/OFF large triangle marks on the cursor key. The picture MENU will move in the direction of the mark you are VIDEO... -
Page 26: Menu Operation
Menu operation Menu Structure The numerals noted in are reference page numbers. The normal menu will be displayed when the MENU button Normal menu is pressed with the remote control FLIP COVER closed. For VIDEO, S-VIDEO and component video (YP ) input MENU button MOUSE... - Page 27 Menu operation Normal menu RGB input Advanced menu • The Advanced menu cannot be used unless the FLIP COVER of the supplied remote control is open. RGB input...
-
Page 28: Adjusting The Picture Elements
Adjusting the picture elements The picture elements such as brightness, contrast, white balance, and so on can be adjusted individually for each input source. The adjustable items vary depending on the input source. (The elements marked with “ ” are adjustable.) Input source VIDEO/S-VIDEO COMPONENT VIDEO RGB BRIGHTNESS... -
Page 29: Adjusting The Projected Image From The Computer
Adjusting the projected image from the computer The unit selects the most suitable resolutions as shown in the “Timing Chart” below according to the incoming signals from the COMPUTER input terminal. However, you may need manual adjustment depending on the computer. If you have any vertical banding, noise, dot interference, or crosstalk on the projected picture, adjust the clock frequency with “CLOCK”... -
Page 30: Manual Adjustment Of Personal Computer Images
Manual Adjustment of Personal Computer Images Adjusting Clock Frequency and Phase Adjusting the position of the image If the image is offset up, down, left or right, adjust the vertical and horizontal position. Select RGB as the input (page 20). Perform steps 1 - 6 for “Adjusting the Clock Press the MENU button to display the main Frequency and Phase”... -
Page 31: Resetting
Resetting Resetting the factory defaults Resetting the Lamp Usage Timer All items can be reset to the standard settings with the When the lamp is replaced (page 37), it is necessary to set exception of the followings. the lamp hours of usage from the menu. •... -
Page 32: Advanced Menu Settings
Advanced Menu Settings Set the colors as desired in accordance Setting the Video Type with the image contents. Subtle color settings are possible, as desired. Setting is With the FLIP COVER of the remote control possible for each input. open, press the MENU button to display the Advanced menu, then use the cursor keys to select “COLOR”. -
Page 33: Setting In Accordance With Image Content
Setting in Accordance With Image Content Advanced Menu Settings (continued) Setting the Display Frame The display frame can be set individually for each input. Setting the COMPUTER input terminal The COMPUTER input terminal can be switched and used Select the input for image selection (page as the component video signal (YP ) input terminal. -
Page 34: Initial Settings
Initial Settings Setting in Accordance With Image Content (continued) Audio Muting Audio only can be muted for each input. Setting Keystone This function is convenient when multiple video units are connected to this unit. This is used to set the height for keystone adjustment. Select the input to be muted (page 20). -
Page 35: Auto Source Settings
Initial Settings Auto Source Settings Using the Power Saving Function With this function, the unit is automatically detecting the When there is no signal input for a period of 5 min. or more, input signal. the power is automatically turned off and standby status is activated. -
Page 36: Setting The Menu (Option)
Setting the Menu (Option) Selecting the Menu Language Other Menu Settings Any one of eight different languages can be selected for The time that the menu is displayed on the screen can be menu displays. set with this function. With the FLIP COVER of the remote control With the FLIP COVER of the remote control open, press the MENU button to display the open, press the MENU button to display the... -
Page 37: Troubleshooting
Troubleshooting Please check the following before requesting repairs. Problem Check Reference page The power will not turn on. • Is the power plug connected to the power outlet? • Is the lamp cover correctly installed? • Is the internal temperature too high? A protective feature prevents the power turning on when the internal temperature is too high. -
Page 38: When The Status Indicator Illuminates Or Flashes
Wait at least one minute before turning on the unit again. If this does not solve the problem, please contact your dealer. Flashing Slowly (On and off in a The cooling fan has stopped. Contact your Sharp Authorized LCD Projector cycle of 8 sec.) Dealer or Service Center. -
Page 39: Replacing The Projection Lamp
Replacing the Projection Lamp CAUTION: • Potential hazard of glass particles if lamp has ruptured. Please have Sharp Authorized LCD Projector Dealer or Service Center replace lamp if rupture occurs. • Do not remove the lamp cage directly after operation of the projector. The lamp may be extremely hot. Wait at least one hour after the power cord is disconnected to allow the surface of the lamp cage to fully cool before removing the lamp cage. -
Page 40: Transporting The Projector
Transporting the Projector When transporting the unit, please slide the lens cap to the closed position and utilize the supplied carrying bag. Avoid strong vibration and physical shock during transportation. Using the Carrying Bag A soft-side carrying bag is provided to transport the unit. Before placing the projector into the carrying bag, set up the inner pad inside the bag as shown. -
Page 41: Specifications
(9FU770823200), Projector operation manual (9FU770822800), Projector quick reference (9FU770822900), Replacement lamp (BQC-PGM10X//-1) This SHARP projector uses a DMD panel. This very sophisticated This unit has some inactive pixels within acceptable tolerances which panel contains 786,432 (PG-M10X)/480,000 (PG-M10S) pixels. As may result in inactive dots on the picture screen. - Page 42 D-Sub Pin Assignments Pin No. Signal to be connected PC 15-Pin mini D-Sub Green Blue Red GND Green GND Blue GND No Connection Digital GND Horizontal Sync Vertical Sync Dimensions 61 mm/2 ⁄ ˝ 48 mm/ 11 mm/ 177 mm/6 ⁄...
-
Page 43: Guide To Effective Presentations
Guide to Effective Presentations Electronic presentations are one of the most effective tools presenters can use to persuade an audience. There are several ways to enhance your presentation and maximize your effectiveness. The following are guidelines to help you create and deliver a dynamic presentation. a. - Page 44 Guide to Effective Presentations • Background colors can subconsciously affect the audience: Red—increases viewers’ pulse and breathing and encourages risk taking but can also be associated with financial loss. Blue—has a calming and conservative affect on the audience but can also create boredom among corporate Blue audiences that are often inundated with this background color.
- Page 45 By manipulating the placement and use of the following tools, you will improve the impact of your presentation. Presentation from SHARP Lighting—Good lighting is an important component of a successful presentation. You should strive to create an unequal distribution of light.
- Page 46 Guide to Effective Presentations d. Rehearsing & Delivery • The best time to rehearse is the day or evening before, not a couple of hours before, and the best place to rehearse is in the actual room. Rehearsing a speech in a small office is not the same as standing up in front of 100 people in a hotel ballroom or classroom.
-
Page 47: Glossary
Glossary Active Digital keystone correction Function to digitally correct a distorted image when the projector is set up at an angle. • Not only does the projector feature anti-aliasing and left-right compression but also up-down compression, maintaining the aspect ratio of 4:3 even if the viewing angle changes. Aspect The display frame can be set individually for each input. -
Page 48: Index
Index AC socket ..............18 Lamp cage cover ............37 ASPECT ratio ..............31 Lamp cover screw ............37 Audio adjustments ............22 LEFT-CLICK button ..........12, 21 Audio cable ..............8 Lens ................13 AUDIO input terminal ........... 15 AUTO GAIN setting ............ -
Page 49: Sharp Corporation
SHARP CORPORATION Printed in Japan 9FU770822800A 0P11-JPM...
