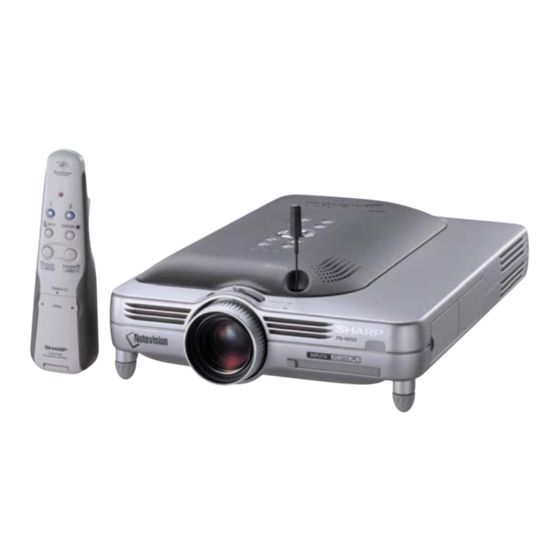

OPERATION MANUAL MODEL PG-M25X DIGITAL MULTIMEDIA PROJECTOR...
Page 2
IMPORTANT For your assistance in reporting the loss or theft of your Model No.: PG-M25X Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please be sure that Serial No.: you have checked the contents of the carton thoroughly against the list of “Supplied accessories”...
Page 3
SPECIAL NOTE FOR USERS IN THE U.K. The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
Page 5
2. CONSUMER PRODUCT SAFETY ACT To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE TYPE BQC-PGM20X//1. RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX. ETEINDRE LA LAMPE AVANT DE PROCEDER A L’ENTRETIEN.
Outstanding Features 1. Image Quality • Superior image quality with Fujinon™ optical lens system. • Newly developed DDR (Double Data Rate) chip eliminates Color Break- ing phenomena common with previous generation DLP™ projectors. • Newly developed 12° DMD™ chip provides significantly improved opti- cal efficiency and excellent contrast ratio.
Page 8
Outstanding Features (cont.) 5. Built-in PCMCIA card slot (Type • Wireless presentations using a wireless LAN PC card. Supports the global wireless LAN standard, IEEE802.11b. This wireless LAN PC card complies with IEEE802.11b wireless LAN standards. Computers with built-in wireless LAN PC cards that support this standard allow for wireless connections.
Contents Introduction Operating by Turning your Wrist (Selecting OSD Menus, Operating Presentation Outstanding Features ......... 3 Tools) ..............40 Contents ............... 5 Function Assign ............41 IMPORTANT SAFEGUARDS ....... 8 GyroRemote RF Channel Setting or Confirming ..42 Registering the GyroRemote in the Projector ..42 How to Access the PDF Operation Manuals Registering Multiple GyroRemotes in (Windows, Macintosh) .........
Page 10
Contents (cont.) Easy to Use Functions Video Digital Noise Reduction (DNR) System ... 91 Reducing Image Noise ..........91 Using the Network ..........66 Setting On-screen Display ....... 92 Before setting the network ........66 Turning Off the On-screen Display ......92 Using a Wireless LAN PC Card ......
Page 11
Resetting the Lamp Timer ........113 Connecting Pin Assignments ......114 Computer Compatibility Chart ....... 115 Troubleshooting ..........116 For SHARP Assistance ........118 Specifications ..........119 Wireless LAN PC Card Specifications ..120 Usable Cards and Their Capacity ....121 Dimensions ............
IMPORTANT SAFEGUARDS CAUTION : Please read all of these instructions before you operate this product and save these instructions for later use. Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS.
Page 13
18. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the product.
Page 14
IMPORTANT READ BEFORE USING THE PRODUCT • You have acquired a product that includes software licensed to SHARP Corporation by Lineo, Inc. (“Lineo”). The Software is protected by copyright laws, international copyright treaties, and other intellectual prop- erty laws and treaties. Lineo and its suppliers retain all ownership of, and intellectual property rights in...
Internal cleaning wall or obstruction. should only be performed by a Sharp Autho- ■ Be sure that the intake vent and the exhaust rized Projector Dealer or Service Center.
Page 16
IMPORTANT SAFEGUARDS (cont.) Other connected equipment ■ When connecting a computer or other audio- visual equipment to the projector, make the connections AFTER turning off the projector and the equipment to be connected. ■ Please read the operation manuals of the pro- jector and the equipment to be connected for instructions on how to make the connections.
How to Access the PDF Operation Manuals (Windows, Macintosh) PDF operation manuals in several languages are included in the CD-ROM, so that you can work with the projector, even if you do not have this manual on hand. To utilize these manuals, you need to install Adobe Acrobat Reader on your PC (Windows or Macintosh).
Part Names Numbers in refer to the main pages in this Operation Manual where the topic is explained. Projector (Front and Top View) LAMP replacement TEMPERATURE indicator warning indicator Illuminates in green normally. When the internal Replace the lamp when the temperature rises, this indicator blinks in red.
Projector (Side View) INPUT 3 terminal For connecting video equipment. INPUT AUDIO terminal Shared audio terminal for INPUT 1, INPUT 2, INPUT 3 and INPUT 4. INPUT 1 terminal DVI Port for DVI digital, USB port analog RGB, and COMPO- For connecting a computer NENT signals.
Part Names (cont.) GyroRemote Front LED indicator Lights up when the GyroRemote is in Function 1 / 2 buttons motion. For specifying the button assignments for Function 1 and Function 2 POINTER button Holding this button down displays a INPUT button pointer on the screen.
The GyroRemote Inserting the Batteries The batteries (four R-03 batteries (“AAA” size, UM/ SUM-4, HP-16 or similar)) are included in the package. Slide the cover in the direction of the arrow to open it. Pullstring for Insert the included batteries. removing the •...
The GyroRemote (cont.) GyroRemote Features This projector uses the GyroRemote technology, that allows for the following features when compared to ordinary infrared remote controls. Operation Range: Area up to a 59.1 feet (18 m) RF Technology With ordinary remote controls, the operation range is limited because of directivity;...
Using the GyroRemote Info • The GyroRemote emit s operation signals according to the angle and change of angle of the GyroRemote. • smoothly operate GyroRemote just by turning your wrist. • The movements of the GyroRemote send signals to the projector while holding down on the rear of the GyroRemote.
If your computer output terminal has a different connection, it may be necessary to purchase an adaptor (commercially available). Wireless LAN PC card AN-WC11B • All cables may not be available in all regions. Please check with your nearest Sharp Authorized Note Projector Dealer or Service Center.
Setup Foot releases Adjustment feet Using the Adjustment Feet The height of the projector can be adjusted using the adjustment feet when the surface of the projector is placed on is uneven or when the screen is slanted. The projection of the image can be made higher by adjusting the projector when it is in a location lower than the screen.
Setting up the Screen Position the projector perpendicular to the screen with all feet flat and level to achieve an optimal image. Note • The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.
Setup (cont.) Screen Size and Projection Distance Screen Base line: Horizontal line passing through the lens center. Lens center 90° L:Projection distance NORMAL Mode (4:3) Distance from the lens Picture (Screen) size Projection distance (L) The formula for picture size and center to the bottom Diag.
The image is reversed. Ceiling-mount setup ■ It is recommended that you use the optional Sharp ceiling-mount When using the default setting. ▼On-screen Display bracket for this installation.
Connecting the Projector to Other Devices Before Connecting Note • Before connecting, be sure to turn off both the projector and the devices to be connected. After making all connections, turn on the projector and then the other devices. When connecting a computer, be sure that the computer is the last device to be turned on after all the connections are made.
ø3.5 mm stereo audio using a ø3.5 mm stereo audio cable (commercially cable (commercially available available or available as Sharp service part or available as Sharp service QCNW-4870CEZZ) part QCNW-4870CEZZ). DVI to 15-pin D-sub cable Note • See page 115 “Computer Compatibility...
Page 32
ø3.5 mm stereo audio ø3.5 mm stereo audio cable cable (commercially available (commercially DVI cable or available as Sharp service available or available (sold separately) as Sharp service part part QCNW-4870CEZZ). QCNW-4870CEZZ) Note •...
Connecting to Video Equipment 3RCA to 15-pin Connecting to D-sub cable Component Video Type: AN-C3CP (9'10" (3.0 m)) Optional Equipment accessories DVI to 15-pin Use a 3 RCA to 15-pin D-sub cable and DVI to D-sub adaptor 15-pin D-sub adaptor when connecting to the Model: AN-A1DV INPUT 1 terminal, component video equipment (7.9"...
Page 34
Connecting the Projector to Other Devices (cont.) Connecting to Video Equipment Using an S-VIDEO, a Composite To S-VIDEO output terminal Video or an Audio Cable To video output terminal Using an S-VIDEO, video, or audio cable, a VCR, To audio output terminal laser disc player or other audio-visual equipment can be connected to INPUT 2, IN- VCR or other audio-visual equipment...
Installing / Removing the PC Card Eject button Installing the PC Card in to INPUT 4 PC Card Slot Insert a PC card such as a wireless LAN card or memory card as shown on the right. Info The notch •...
Connecting the Projector to Other Devices (cont.) Connecting to a Monitor RGB monitor loop-out Watching Images on Optional adaptor Type: AN-A1MY accessory Both the Projector and (7.9" (20 cm)) a Monitor You can display computer images on both the projector and a separate monitor using an RGB To RGB input port monitor loop-out adaptor and an RGB cable.
Image Projection ▼Projector indicators LAMP REPLACEMENT indicator Basic Procedure POWER indicator Connect the required external equipment to the pro- jector before operating the following procedures. Details are found in the projector operation manual. Info • The language preset at the factory is English. If you want to change the on-screen display to another language, reset the language ac- cording to the procedure on...
Page 39
"On-screen Display (Example) Press and select the input INPUT 1 Mode mode. INPUT 2 Mode • Each press switches in the following order: → INPUT 1 → INPUT 2 → INPUT 3 → INPUT 4 Using Using S-Video • You can also use the on the DVI digital GyroRemote.
Page 40
Image Projection (cont.) Press on the projector to temporarily turn off the picture and sound. POWER button MENU button Note Volume • Pressing again will turn the pic- buttons ture and the sound back on. • When using the GyroRemote, you can select AV MUTE using the Button Assign function (see page...
Selecting the On-screen Display Language • The on-screen display language of the pro- jector can be set to English, German, Span- ish, Dutch, French, Italian, Swedish, Por- tuguese, Chinese, Korean or Japanese. • The following explanation uses operations from the projector as example. Press •...
Correcting the Trapezoidal Distortion (Keystone Correction) Correcting the Trap- ezoidal Distortion This function allows for Keystone (On-screen LENS button Trapezoidal Distortion) Correction. The following explanation uses operations from the projector as example. Adjustment buttons Note "'\ | "'\ | "'\ | "'\ | "'\ | •...
Page 43
Press Note • You can use the same settings used in NORMAL mode 4:3 for 16:9. • Straight lines or the edges of images may appear jagged while adjusting the image. For easier viewing, this function shifts the entire image projected on Digital Shift Setting the screen up or down when projecting 16:9 images from DVD players and DTV* decoders.
Using the GyroRemote Before Using the GyroRemote Make sure that the antenna on the projector is fully extended before operating the projector with the GyroRemote. Info • The control range under actual operating conditions may be less than optimum depending on where the projector is placed and the radio signal environment.
Function Assign Function 2 Function 1 button button The Button Assign function on the GyroRemote, consists of 5 items (1/5 to 5/5) UNDO Function 4 and within each, there are 4 function buttons button button (Function 1 to 4.) Function 3 Selecting the function buttons for assigning ASSIGN button button...
Using the GyroRemote (cont.) GyroRemote RF Channel indicator Setting or Confirming The GyroRemote uses radio signals, which can receive interference under certain conditions. To avoid interference, when using multiple GyroRemotes, register a different channel for each GyroRemote in the projector. The GyroRemote has RF CH+ button 8 channels for U.S., Canada, etc.
Press when the number of registered GyroRemotes is fewer than 8. • This ends the Registration mode. Note • Contact your nearest Sharp Autho- rized Projector Dealer or Service Center if you need to use an addi- tional GyroRemote unit.
Using the Presentation Tools The GyroRemote is equipped with the following presentation tools. These are very useful when emphasizing a main point during the presentation. • Pointer function • Stamp function • Line function LED lamp Function 1 button Using the Pointer ENTER button Function 3 button Hold the GyroRemote and...
Using the Stamp Func- tion Press on the GyroRemote and then select “Button Assign 1/5”. • The assign function is displayed at the bottom right of the screen. Press on the GyroRemote. • The stamp type will change every time is pressed, as shown on the right.
Using the Presentation Tools (cont.) Using the Line Function Using the GyroRemote, you can draw on the screen various shapes such as boxes, circles, horizontal, vertical, perpendicular and free- style lines. Press on the GyroRemote and then select “Button Assign 1/5”. •...
Using the Wireless Mouse Function of the GyroRemote The GyroRemote can perform mouse operations on a computer screen displayed on the actual screen. Using as a Wireless Supplied USB cable accessory Mouse Connect the projector to the USB port computer using the supplied Computer USB cable.
To use it again, press 5943CEZZ to reactivate. • When purchasing a ø2.5 to ø3.5 mm wired ø3.5 minijack cable (commercially available or remote cable, please contact Sharp Au- available as Sharp service thorized Projector Dealer or Service Cen- part QCNW-4870CEZZ) ter.
Turning Off the GyroRemote Caution • Make sure to turn off the GyroRemote aboard aircraft or other places where us- ing radio signals is restricted. Make sure to turn off the GyroRemote to prevent any unwanted operations, when not using the projector. This also prevents consumption of batteries set in the TEACH button GyroRemote.
Using the Menu Screen This projector has three sets of menu screens that allow you to adjust the image and various projector settings. You can operate the menus from the projector or GyroRemote using the following proce- dure. On-screen menu for INPUT 2 or INPUT 3 Mode On-screen menu for INPUT 1 RGB mode Menu Bar...
Page 55
Press to select the menu you want to adjust. Note • For details on the menus, see the tree charts on pages 56 and 58. • When using the GyroRemote to move through a menu, see page Press to select the item you want to adjust.
Using the Menu Screen (cont.) Menu Selections on the MENU button projector (Settings) Adjustment buttons Press "'\ | "'\ | "'\ | "'\ | "'\ | • The menu screen is displayed. Note • The “Picture” menu screen is displayed in inputs 1, 2 and 3 and the “Card”...
Page 57
Press • The cursor shifts to the sub menu. Sub menu Press to select the setting of the item displayed in the sub menu. Press • The item selected is set and the ad- justment is stored. Note • Some adjustment items will display a confirmation message.
Using the Menu Screen (cont.) Using the GyroRemote to Navigate the On-screen MENU button Menu (Adjustments) Press • The menu screen is displayed. Note On-screen menu for INPUT 1 mode • The “Picture” menu screen is displayed in inputs 1, 2 and 3 and the “Memory Card”...
Using the GyroRemote to Navigate the On- screen Menu (Settings) MENU button Press • The menu screen is displayed. Note • The “Picture” menu screen is On-screen menu for INPUT 1 mode displayed in inputs 1, 2 and 3 and the “Memory Card”...
“Fine Sync” only “Signal Info”, “Auto Sync” and “Auto Sync Disp” can be used. • When the signal type is set as “Component”, in the “Picture” menu of INPUT 1 “Color”, “Tint” and “Sharp” are displayed.
Page 61
Break Timer Bright –30 PRJ Mode Front Color –30 Ceiling + Front Tint –30 Rear Register R/C Ceiling + Rear Sharp –30 Keylock Level Normal –30 Level A Level B Blue –30 CLR Temp –3 Password Old Password New Password...
Page 62
Auto Search [ON/OFF] OSD Display Normal Level A Level B Image Capture Save Image Delete Background Sharp Custom Blue None Startup Image Sharp Custom None. Auto Power off [ON/OFF] Note • Some items will not be reset, if you select All Reset in Options (2). For details, see page 105.
➝ For operating the menu screen, see pages 50 to Note • “Color”, “Tint” and “Sharp” are not dis- played when selecting INPUT 1 and the “Signal Type” is “RGB” . • The picture adjustments can be stored separately in each input mode.
Adjusting the Picture (cont.) Progressive Mode This function allows you to select the pro- gressive display of a video signal. The pro- gressive display projects a smoother video image. Select “Progressive Mode” in the “Pic- ture” menu on the menu screen. ➝...
Adjusting Computer Images Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen. Selected Item Description Clock Adjusts vertical noise. Phase Adjusts horizontal noise (similar to tracking on your VCR). H-Pos Centers the on-screen image by moving it to the left or right.
Adjusting Computer Images (cont.) Selecting Adjustment Settings Adjustment settings stored in the projector can be easily accessed. Select “Select Setting” in the “Fine Sync” menu on the menu screen. ➝ For operating the menu screen, see pages 50 to Note •...
Checking the Input Signal This function allows you to check the current input signal information. Select “Signal Info” in the “Fine Sync” menu on the menu screen. ➝ For operating the menu screen, see pages 50 to Note • The projector will display the number of scanned lines available input from audio- visual equipment such as a DVD player or Digital Video.
Adjusting Computer Images (cont.) Auto Sync Display Function Used to set the screen displayed during Auto Sync. Select “Auto Sync Disp” in the “Fine Sync” menu on the menu screen. ➝ For operating the menu screen, see pages 50 to •...
Using the Network Before setting the network This section explains items that can be set in a network. A wireless connection will not be possible if these items are not set correctly. Also, as there are values that must be entered in a pre-configured wireless network, make sure to consult with your network administrator.
Page 71
DHCP server function ■ What is a DHCP server function? The DHCP server function automatically assigns IP addresses to devices connected to the network. When the Network Settings on the computer have been set to Automatically get IP address (DHCP server enabled), the projector will automatically assign IP addresses.
Using a Wireless LAN PC Card Inserting a wireless LAN PC card into the INPUT 4 PC card slot on the projector allows you to receive images to the projector and project them via a wireless connection. Installing a Wireless LAN PC Card Insert the wireless LAN PC card into the INPUT 4 PC card...
Network Settings • To project images via a wireless connection, make sure to make the necessary network settings on both the computer and projector. • See the Wireless Reality software operation manual for details on how to set the computer. •...
Network Settings (cont.) Press to move the cursor to the next charactor. Note • If you want to correct a letter or symbol, press to move the cursor to the character you want to correct, and then use to correct the character. •...
Press to move the cursor to the digit you want to correct. Note • You can also move the cursor by pressing on the GyroRemote. • If you want to cancel the settings, press Repeat steps 3 and 4 to set all the digits.
Page 76
Network Settings (cont.) ¤ Setting the SS ID Set the projector’s SS ID. The default setting is “SHARP_PRJ”. Select “Wireless LAN” in the network menu on the menu screen ➝ For operating the menu screen, see pages 50 to Press to select “Wireless LAN”...
Setting the DHCP Server This function is set when using the DHCP server on the projector. Set “DHCP Server” in the network menu on the menu screen. ➝ For operating the menu screen, see pages 50 to Note • “Start Address” and “Max Lease” can be set when DHCP server function is set to “OFF”.
Network Settings (cont.) Resetting the Network Settings This will return the default values of the Network Settings. Select “Reset” in the Network menu on the menu screen. When the confirmation screen is dis- played, select “YES” using press ➝ For operating the menu screen, see pages 50 to Note •...
Using a Memory Card When a memory card is installed, images stored in the memory card can be projected. If presentation files are stored in the memory card you can make presentations using only the projector and the memory card, without having to use a computer. Displaying of the Contents in the Card as an Index Insert the memory card into the IN-...
Using a Memory Card (cont.) Select “Eject PC Card” and press • After a few seconds, the message “You may safely eject the PC Card” will be displayed. Remove the card. • Remove the card after the message is displayed. •...
Projecting a file • Press select the file and press • The image of the selected file is displayed. • If you press while the image is displayed, the submenu is displayed. • Next Proceeds to the next page. • Previous Moves back one page.
Memory Card Settings Setting Files You can limit the files displayed in the Index mode according to their type. Select “Display File” in the Memory Card menu on the menu screen. ➝ For operating the menu screen, see pages 50 to •...
• Only one file can have Autorun setting per memory card. • The display will become an index display, if there are no script files or SHARP PRJ folders, or when Autorun is not set even if there are script files.
Memory Card Settings (cont.) Setting the Display In- terval for Image Files You can set the display interval for slide show files (image files). Adjust “Interval” in the Memory Card menu on the menu screen. ➝ For operating the menu screen, see pages 50 to Pressing the button during image...
Displaying a Still Image This function allows you to instantly freeze a moving image. This is useful when you want to display a still image from a computer or video, giving you more time to explain the image to the audience. Pausing an image Function 2 button...
Selecting the Picture Display Mode This function allows you to modify or customize the picture display mode to enhance the input image. Depending on the input signal, you can choose “NORMAL”, “FULL”, “DOT BY DOT”, “BORDER”, “STRETCH” or “SMART STRETCH” image. Switching the Picture Display Using Different Input Signals...
Selecting the Picture Display Mode (cont.) This function allows you to enlarge a specific portion of an image. This is useful when you want to display a detailed portion of the image. Displaying an Enlarged Function 1 Portion of an Image Function 2 button button...
Page 89
Hold down and move the GyroRemote to move the en- larged image. • If the Screen moving indicator has dis- appeared, press to display the Screen moving indicator, and then move the image. Info • If OSD display in the “Options (1)” menu is set to “Level A”...
Gamma Correction Function Gamma is an image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions. When you are displaying images with frequent dark scenes, such as a film or concert, or when you are displaying images in a bright room, this feature makes the dark scenes easier to see and gives the impression of greater depth in the image.
Selecting the Power Save Mode The Power Save Mode or the Automatic Power Shutoff function allows you to reduce the power consumption of the projector. Setting the Power Save Mode Select “Power Save” in the “Options (1)” menu on the menu screen. ➝...
Displaying Dual Pictures (Pict in Pict) Picture in Picture function allows you to display two pictures on the same screen. You can display the image input from INPUT 2 or 3 as an inset picture overlapping the main picture from INPUT 1. (This function can only be set in the RGB menu.) Displaying the Inset Picture Select “Pict in Pict”...
Press to move the inset pic- ture. • The inset picture will be moved to the inset picture frame. Note • The inset picture can only be displayed with composite video (NTSC/PAL/ SECAM) or S-Video signal. • The Freeze function works only with the inset picture, when the Pict in Pict mode is in operation.
Auto Search Function This function automatically searches for and switches to the input mode in which signals are being received, when the projector is turned on, or when the INPUT button is pressed. Using Auto Search Select “Auto Search” in the “Options (1)”...
Video Digital Noise Reduction (DNR) System Video Digital Noise Reduction (DNR) provides high quality images with minimal dot crawl and cross color noise. Reducing Image Noise Select “DNR” in the “Options (1)” menu. ➝ For operating the menu screen, see pages 50 to Note •...
Setting On-screen Display This function allows you to turn on or off the on-screen messages. When setting “ Level B” in “OSD Display”, the input mode display (e.g. “INPUT 1”) will not appear, even if the INPUT button is pressed. Selected Item Description Normal...
Setting the Video Signal The video input system mode is preset to “Auto”; however, a clear picture from the con- nected audio-visual equipment may not be received, depending on the video signal differ- ence. In that case, switch the video signal. Setting the Video Signal Select “Video System”...
Saving Projected Images • This projector allows you to capture projected images (RGB signals) and set them as a startup image, or background image when no signals are being received. • You can capture the images that are input using analog RGB signals and Digital RGB XGA signals.
Background Image This function allows you to select the image displayed when no signal is being sent to the projector. Selected Item Description Sharp SHARP default image Custom User customized image (i.e. company logo) Blue Blue screen None Black screen *1 You can set a captured image as a background image by selecting “Custom”.
➝ For operating the menu screen, see pages 50 to Note • It is recommended that the lamp be changed after approximately 1,900 cumu- lative hours of use. For lamp replacement, contact your near- est Sharp Authorized Projector Dealer or Service Center.
Displaying the Break Timer Displaying and Setting the Break Timer Select “Break Timer” from the “Options (2)” menu on the menu screen. ➝ For operating the menu screen, see pages 50 to When “ ” is displayed, press "On-screen Display to set the Break Timer.
Reversing/Inverting Projected Images This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications. Selected Item Description Front Normal image Ceiling + Front Inverted image Rear Reversed image Ceiling + Rear Reversed and inverted image Setting the Projection Mode Select “PRJ Mode”...
Locking the Operation Buttons on the Projector This function can be used to lock the use of certain operation buttons on the projector. The following are the three keylock levels. Keylock Level Description Normal All operation buttons are functional. Level A Only INPUT/VOLUME/AV MUTE buttons on the projector are available.
Setting up a Password A password can be set by the user to prevent adjustments to certain settings on the “Options (2)” menu. Using a password together with the Keylock Level (page 99) is more effective. Entering the Password Select “Password” in the “Options (2)” menu on the menu screen ➝...
Changing the Password Select “Password” in the “Options (2)” menu on the menu screen ➝ For operating the menu screen, see pages 50 to Press enter the password in “Old Password” and press Press set the new password and press Enter the new 4-digit password again in “Reconfirm”...
Setting the Anti-Theft The anti-theft function prevents unauthorized use of the projector. You can choose to use this function or not. If you do not want to use this function, just do not enter the keycode. Once the theft-deterrent function is activated, users will need to enter the correct keycode each time the projector is started.
Page 107
If you lose or forget your keycode, you will need to contact your nearest Sharp Authorized Projector Dealer or Service Center (see page 118). You...
Setting the Anti-Theft (cont.) Changing the Keycode • When “Anti-Theft” is selected and a pass- word has been entered, the password input box is displayed. After the password has been entered, you can change the keycode. Select “Anti-Theft” in the “Options (2)” menu on the menu screen.
Initializing the Settings This function allows you to initialize the settings you have made in the projector. Returning to the Default Settings Select “All Reset” in the “Options (2)” menu on the menu screen. ➝ For operating the menu screen, see pages 50 to Note •...
Displaying the Adjustment Settings This function can be used to display all the adjusted settings as a list on the screen. Display example of INPUT 1 Overview of All Menu Settings Select the “Status” menu and press on the menu screen. ➝...
Carrying the Projector How to Use the Carrying Case When transporting the projector, make sure to retract the antenna, cover the lens with the lens cap, and place the projector in the in- cluded carrying case. Open the cover of the carrying case.
Maintenance Cleaning the projector Cleaning the lens ■ Be sure to unplug the power cord before clean- ■ Use a commercially available blower or lens ing the projector. cleaning paper (for glasses and camera lenses) ■ The cabinet as well as the operation panel is for cleaning the lens.
The internal • Cooling fan break- • Take the projector to your nearest TURE temperature is Red on/ WARNING down Sharp Authorized Projector Dealer abnormally high. Power off • Internal circuit failure indicator or Service Center (see page 118) • Clogged air intake for repair.
• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit. ■ If the new lamp does not light after replacement, take your projector to the nearest Sharp Autho- rized Projector Dealer or Service Center for repair. Purchase a replacement lamp unit of type BQC- PGM20X//1 from your nearest Sharp Authorized Projector Dealer or Service Center.
Regarding the Lamp (cont.) Removing and Install- ing the Lamp Unit Lamp BQC-PGM20X//1 unit Info • Be sure to remove the lamp unit by the handle. Be sure not to touch the glass surface of the lamp unit or the inside of the projector.
Remove the lamp unit. • Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. Insert the new lamp unit. • Press the lamp unit firmly into the lamp Securing unit compartment.
Connecting Pin Assignments DVI Digital / Analog INPUT 1 port : 29 pin connector • DVI Digital INPUT Pin No. Signal Pin No. Signal • • • • • • • • • • • • • • • • • • T.M.D.S data 2–...
Computer Compatibility Chart • Multiple signal support Horizontal Frequency: 15–126 kHz Vertical Frequency: 43–200 Hz* Pixel Clock: 12–230 MHz • Compatible with sync on green and composite sync signals • UXGA and SXGA compatible in advanced intelligent compression • AICS (Advanced Intelligent Compression and Expansion System) resizing technology The following is a list of modes that conform to VESA.
Troubleshooting Problem Check Page • Projector power cord is not plugged into the wall outlet. • Power to the external connected devices is off. — • The selected input mode is wrong. • Cables incorrectly connected to side panel of the projector. 27–32 •...
Page 121
Problem Check Page • The key lock level is set. The power cannot be • If level B has been set, none of the buttons will work. If level A turned on or off using the POWER button on has been set, only Input Switch, Volume and AV mute will work. the projector.
If you encounter any problems during setup or operation of this projector, first refer to the “Troubleshooting” section on pages 116 and 117. If this operation manual does not answer your question, please contact the SHARP Service departments listed below. U.S.A. Sharp Electronics Corporation Austria...
A049WJZZ), Wireless LAN PC Card operation manual (TINS-A306WJZZ). * Temporary noise may be visible with vertical frequencies above 100Hz if OSD functions are activated. This SHARP projector uses a DMD panel. This very so- This unit has some inactive pixels within acceptable phisticated panel contains 786,432 pixels.
Wireless LAN PC Card Specifications Product Name 11 Mbps Wireless LAN PC Card Model Number AN-WC11B (RUNTKA025WJZZ) Host Interface PCMCIA TYPE II " × 4 " × " (54 (W) × 115 (D) × 6 (H) mm) Dimensions ⁄ ⁄ ⁄...
Usable Cards and Their Capacity 1. JPEG images that are DCF compliant * and are stored in a memory card such as those from a digital camera, can be displayed in the projector when using the Card mode. 2. The memory cards in the following table (commercially available) can be used. Memory Card * Memory card capacity Flash ATA card...
Glossary Advanced intelligent compression GAMMA High quality resizing of lower and higher resolu- Image quality enhancement function that offers a tion images to fit the projector’s native resolution. richer image by brightening the darker portions of the image without altering the brightness of the Anti-theft brighter portions.
Page 128
Glossary (cont.) RESIZE Allows you to modify or customize the picture dis- play mode to enhance the input image. You can select six different modes: NORMAL, FULL, DOT BY DOT, BORDER, STRETCH and SMART STRETCH. Smart Stretch Projects the image fully in a 16:9 screen by en- larging only the surrounding areas while keeping the aspect ratio in the middle part of the image at 4:3.
