1
Introducing the Switch

The SFP Media Side

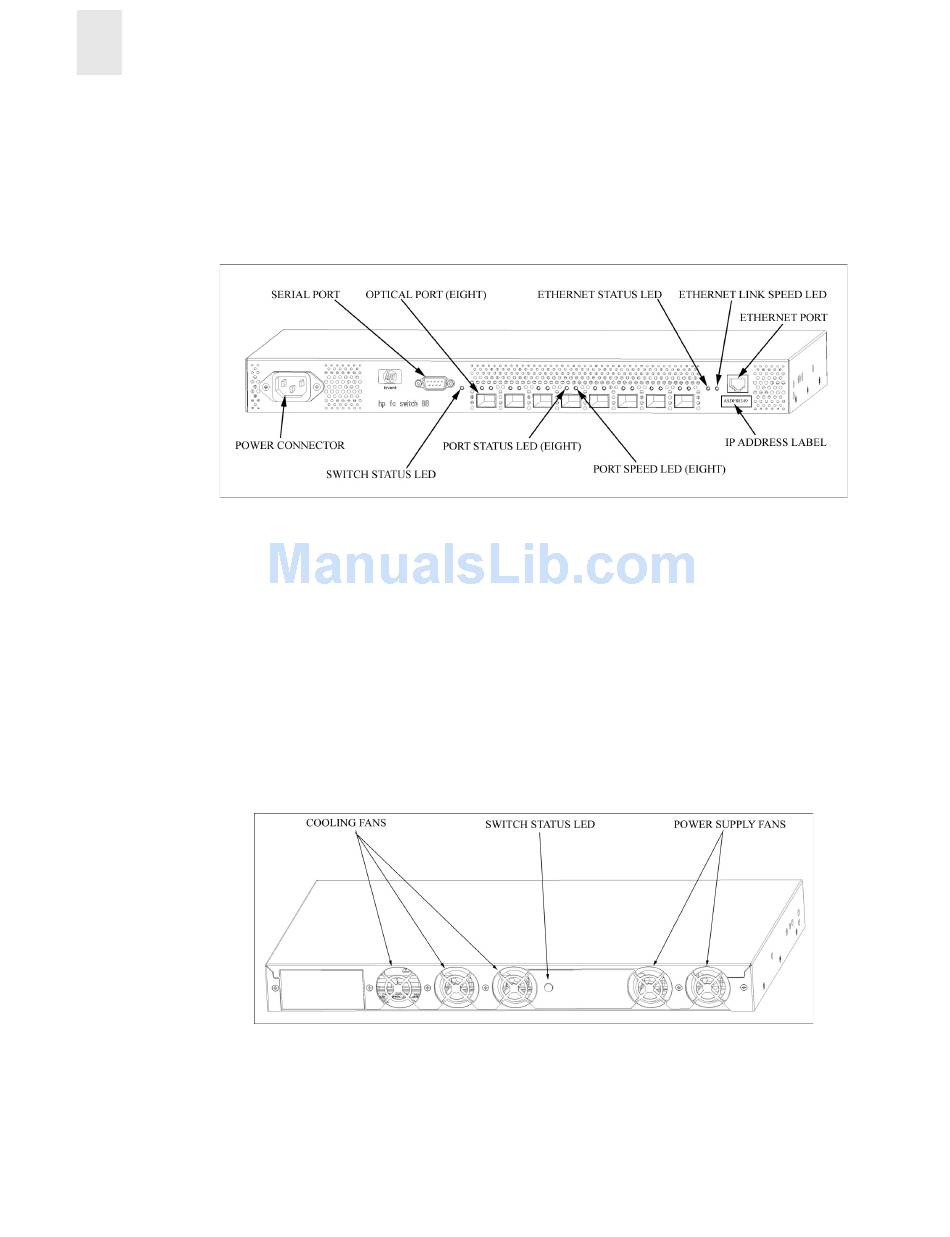

Figure 1-1
serial port, switch status LED, fiber optic ports and their corresponding LEDs, and the Ethernet port
and its corresponding LEDs.
Figure 1-1
The switch ports are color-coded into two groups of four, to indicate which ports can be used in the
same ISL Trunking group.
Note:

The Fan Side

Figure 1-2
Figure 1-2
1-2
shows the SFP media side of the switch, which contains the power connector, IP label,
The SFP Media Side of the FC Entry Switch 8B and FC Switch 8B
ISL Trunking is a Fabric OS feature that enables distribution of traffic over the combined
bandwidth of up to four ISLs between two directly adjacent switches, while preserving
in-order delivery. For information about ISL Trunking, refer to the ISL Trunking User's
Guide.
shows the fan side of the switch, which contains the fans and the switch status LED.
The Fan Side of the FC Entry Switch 8B and FC Switch 8B
Installation and Reference Guide
